| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRD |
| Pipe external diameter | 16, 20, 25 mm |
| Deburrer | yes |
| Application | PE-RT/Al/PE-RT pipes, PEX-Al-PEX pipes |
| Symbol | YT-22373 |

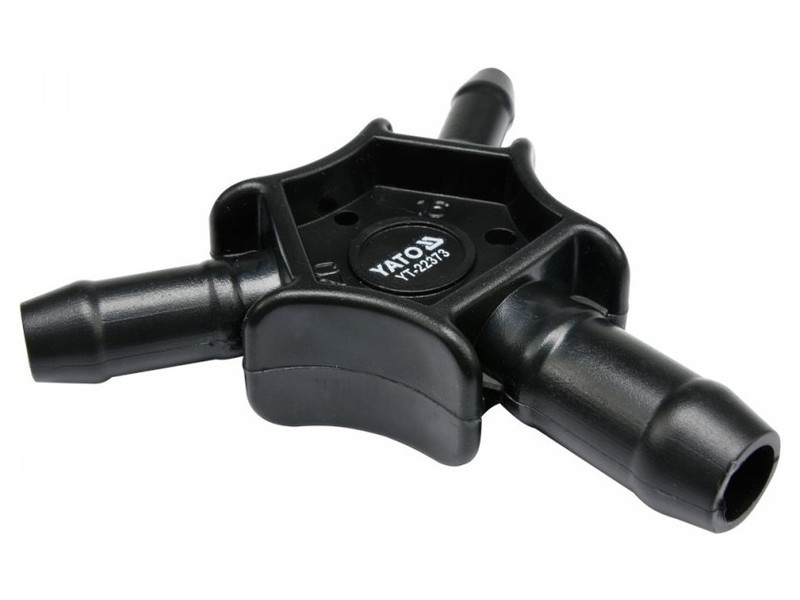

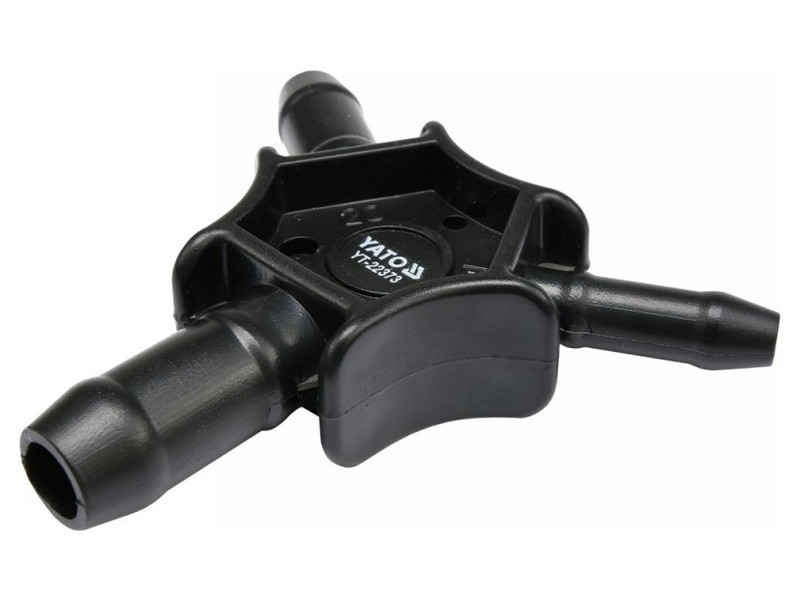

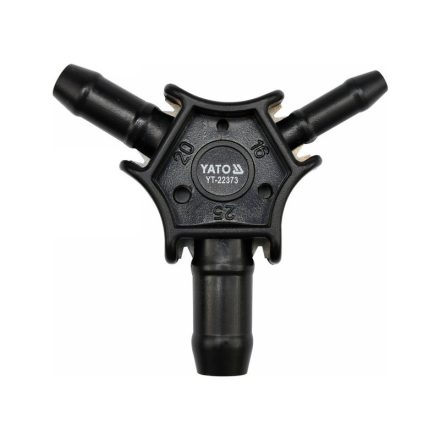

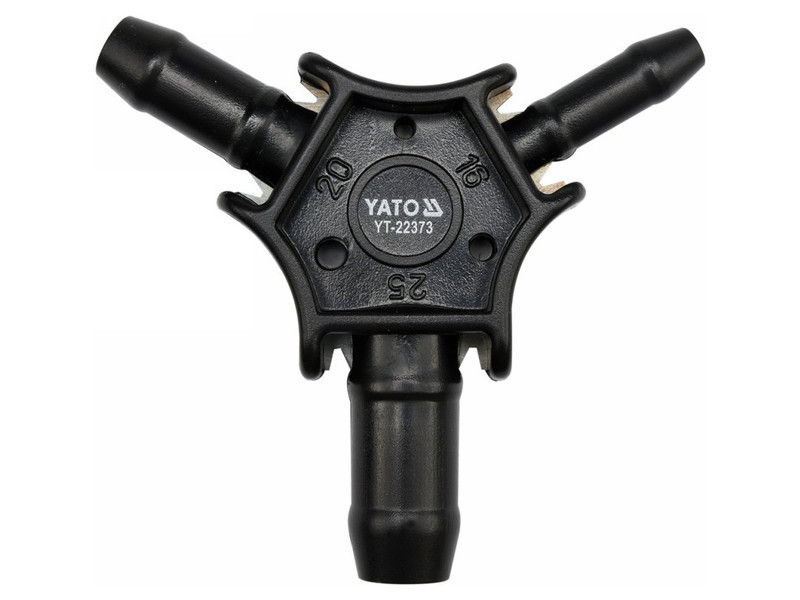

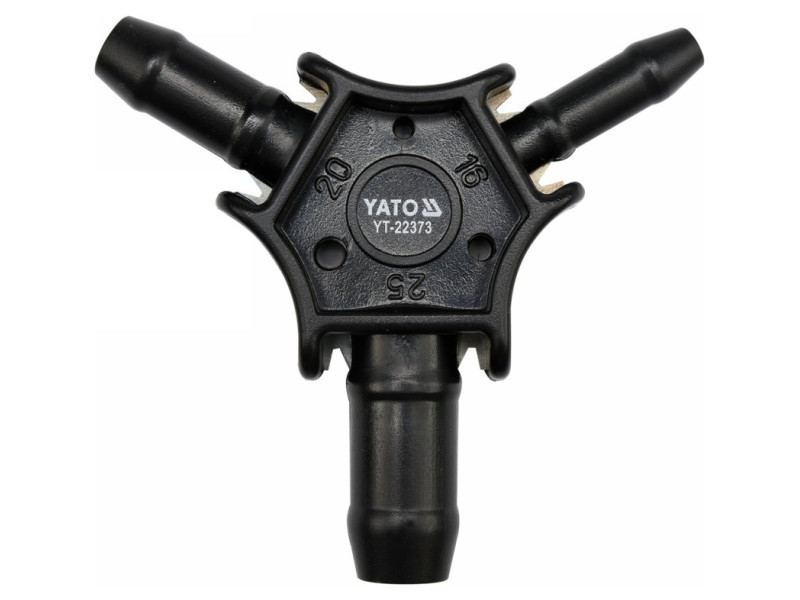

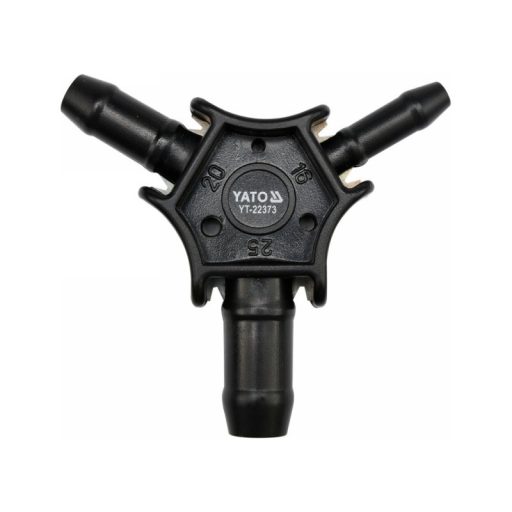

The YATO calibrator is very useful during any work with PEX-AL.-PEX or PERT-AL.-PERT. Designed for pipes with diameters:
This is because when cutting these pipes, their profile is flattened. Subsequently, installing any fittings on them can result in leaks and very costly repairs.
Calibrations
YATO calibrators also combine the function of internal and external deburring.

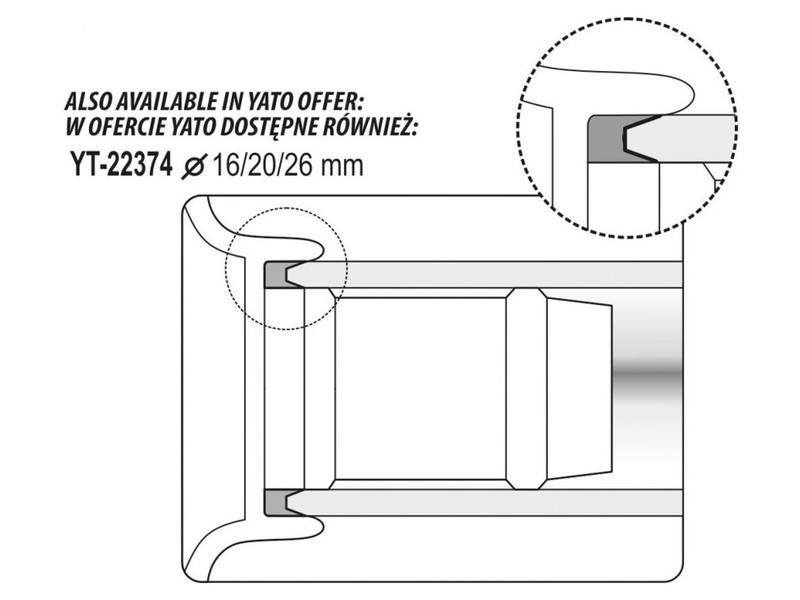

Each calibrator size has special inner as well as outer blades on both sides. With this design, all worked tubes are simultaneously calibrated to give them a perfectly round cross-section for a leak-free connection, and then deburred to even out the edges and allow the tube to be pressed evenly to the very end of the fitting.
Benefits of using YATO calibrators:
- Speed of work - calibrating and deburring performed in one operation
- Precision of connections - each size has an individual calibrator and deburring device with strictly defined dimensions
./li> - Quality of connections - pipes with perfectly round cross-section ensure tightness at fittings
- Universality - most popular sizes in one tool
How to use:
Insert the calibrator into the pipe all the way, turning it clockwise and counterclockwise. Then, making 2-3 rotations of 360 degrees, deburr the tip.
Usage warnings:
Warning! Always use personal safety equipment at work.
