| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRF |
| Length | 380 mm |
| Material | #45 carbon steel |
| Handle material | PVC |
| Crimping force | 10 t |
| Stripping force adjustment | yes |
| Rotary head | no |
| Telescopic | no |
| Pcs | 9 |
| Set includes | Prague, spare matrix type U x4 (16 mm, 20 mm, 25 mm, 32 mm), spare matrix type TH x4 (16 mm, 20 mm, 26 mm, 32 mm) |
| Application | PE-RT/Al/PE-RT pipes, PEX-Al-PEX pipes |
| Symbol | YT-21758 |

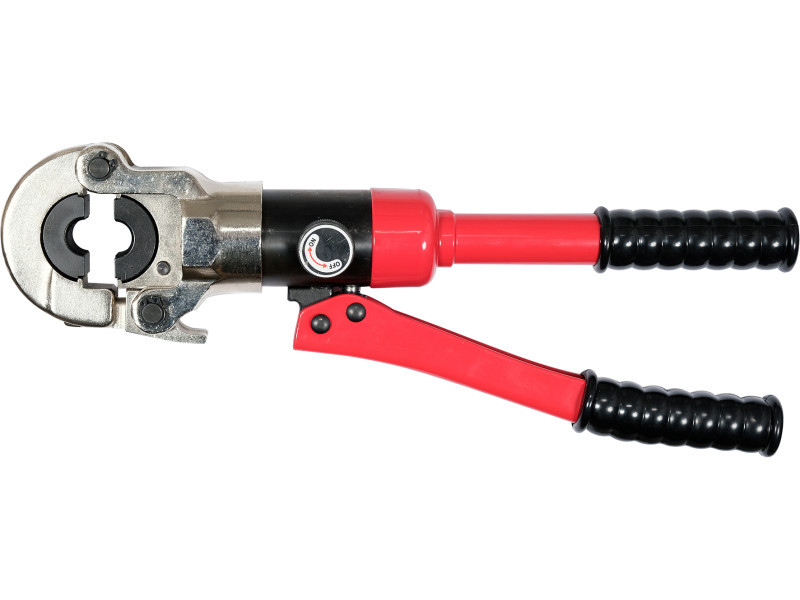

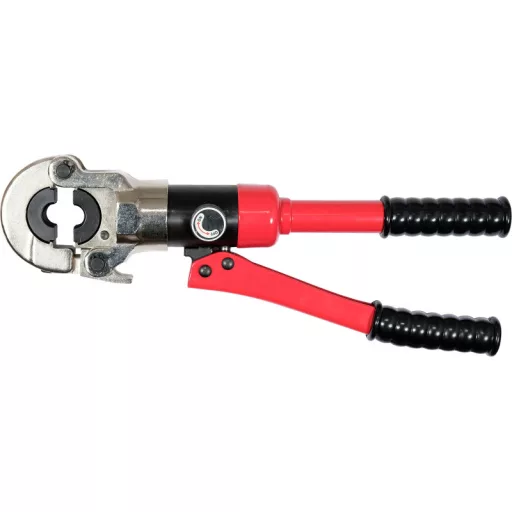

Handheld hydraulic press for crimping fittings on PEX-AL-PEX, PERT-AL-PERT pipes with a set of 8 dies. It is equipped with a hydraulic actuator that allows you to precisely and tightly crimp fittings with a pressing force of 10T. The quick die change system allows easy replacement of dies.
The press is equipped with a set of fittings:
- U type: 16 / 20 / 25 / 32 mm
- TH type: 16 / 20 / 26 / 32 mm

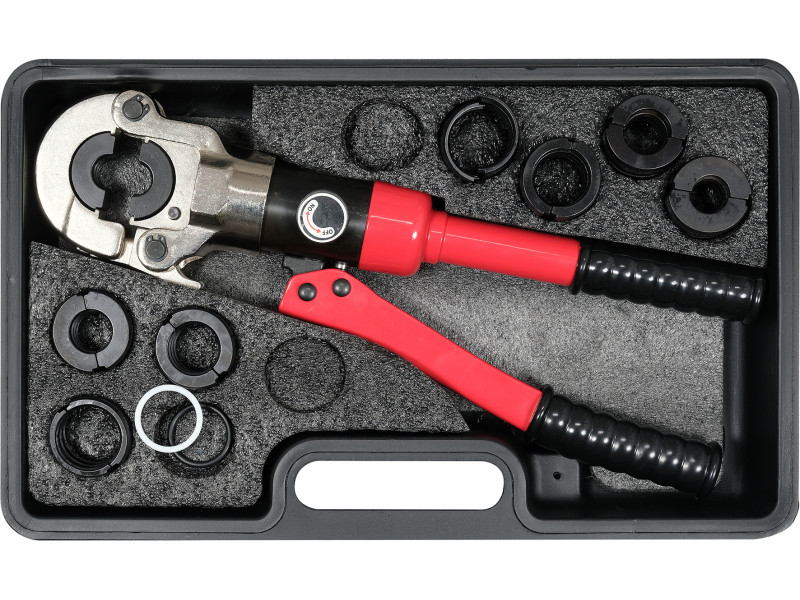

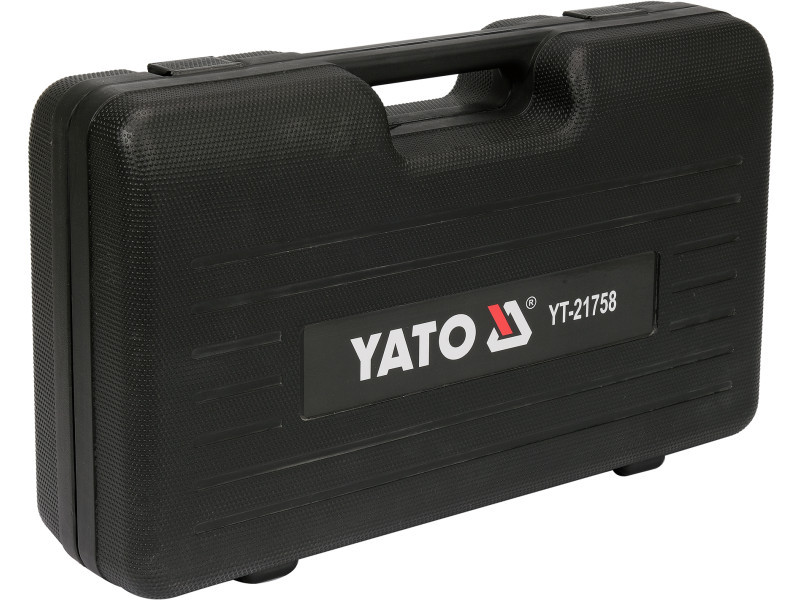

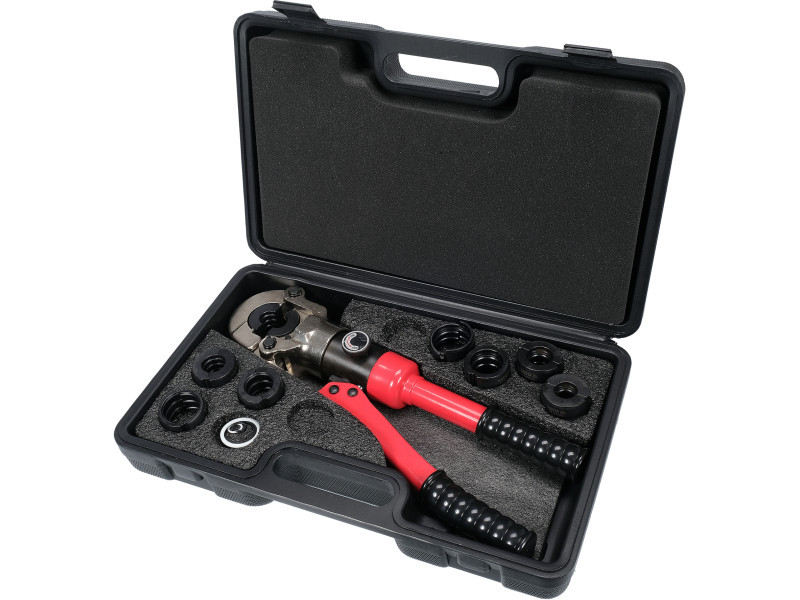

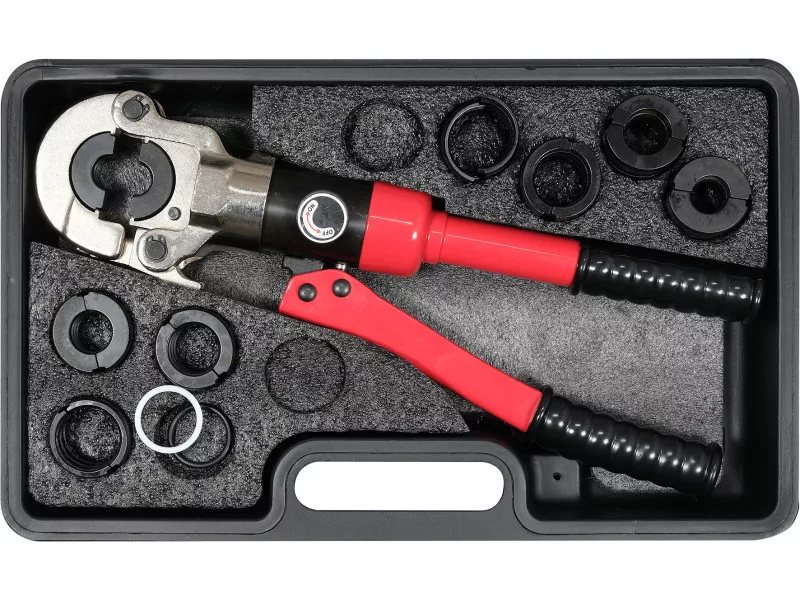

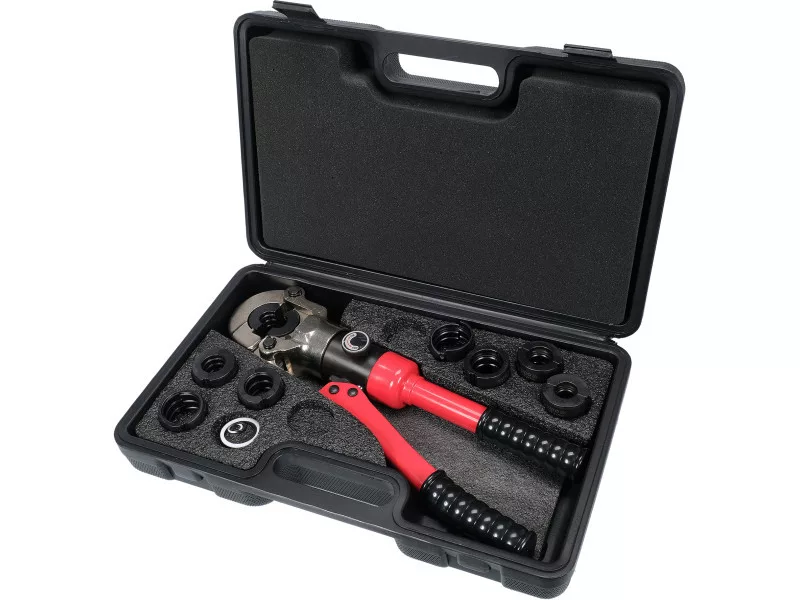

Set housed in a plastic carrying case.
Usage warnings:
Use of hand tools may be dangerous! Always use personal protection equipment at work. Use only proper undamaged tools. Select the type and size of tool according to intended application. Do not overload tools. Keep tools away from children. Use tools with proper care.
