| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRD |
| Length | 260 mm |
| Cutting width | 3 mm |
| Max. cutting capacity in metal plate | 1 mm |
| Max. cutting capacity in copper | 1.2 mm |
| Max. cutting thickness in aluminium | 1.2 mm |
| Max. cutting capacity in plastic | 2 mm |
| Material | steel 65Mn |
| Handle material | PP, TPR |
| Interchangeable blade | yes |
| Spring | yes |
| Application | sheet metal |
| Symbol | YT-19260 |

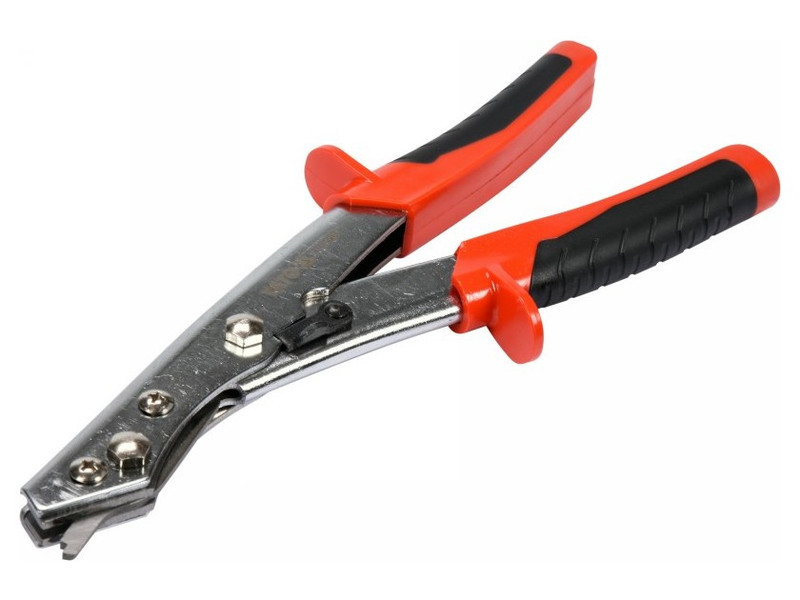

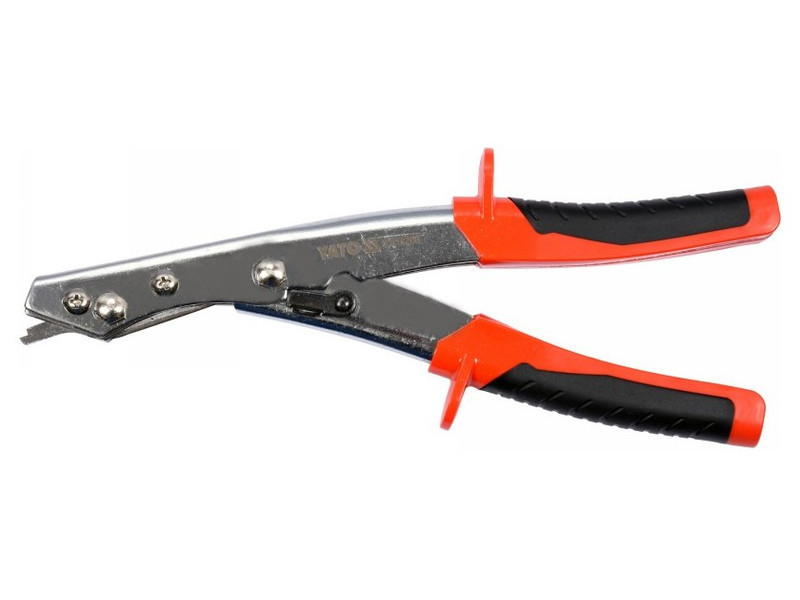

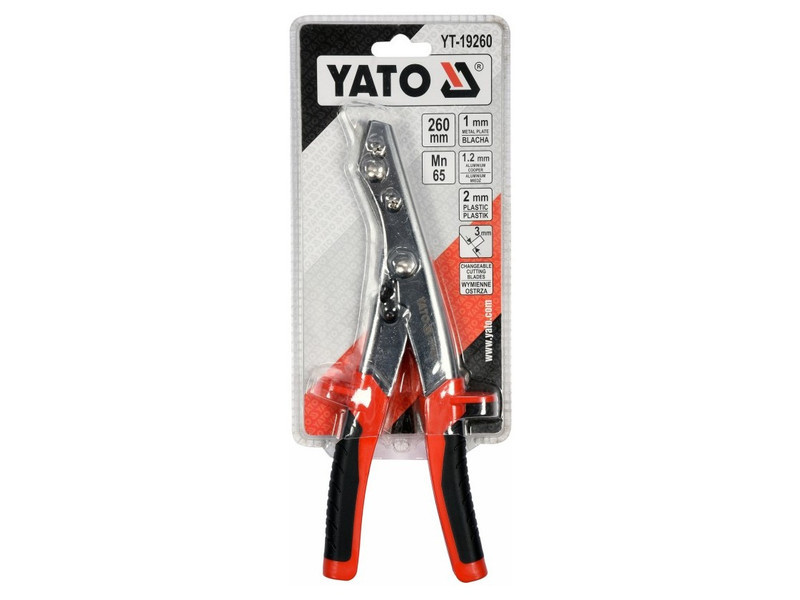

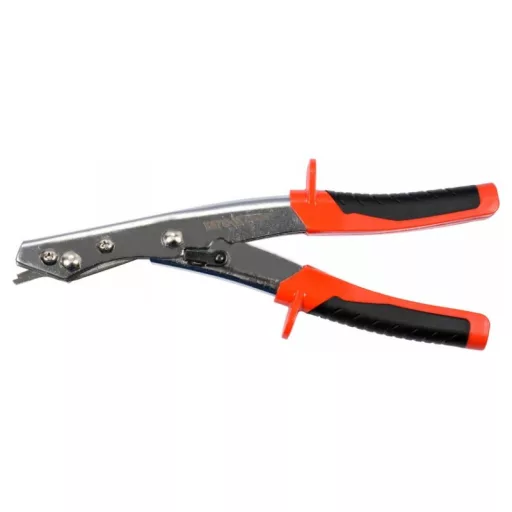

Die cutters for cutting flat sheets, aluminum and plastic.
- maximum thickness of cut materials:
- sheet metal: 1.0 mm
- aluminum: 1.2 mm
- plastic: 2.0 mm
- the spring that opens the jaws makes it easier to work with the tool
- the practical locking mechanism allows the shears to be safely stored in the closed position
- .special design of the cutting blades, two side blades and the middle blade, makes the pliers cut sheet metal without bending its edge, which is additionally smooth and does not require time-consuming deburring
- blades made of very hard Mn65 steel allow cutting flat sheets:
- sheet steel up to 1mm thick
- aluminum up to 1.2mm thick
- plastic up to 2mm
- the width of the chip after cutting is 3mm
- a major advantage of Yato die cutters is the replaceable cutting blades, also available under the index YT-19261
- ./li>
- the pliers have handles made of ABS and are coated with an anti-slip TPR coating, thus providing greater working comfort
- additionally, the built-in spring mechanism makes it easier to work with the pliers
- after finishing work, the pliers can be closed thanks to the side lock, minimizing the amount of space needed for storage
Purpose/Application
- sheet steel up to 1mm thick
- aluminum up to 1mm thick
- aluminum up to 1.2mm thick
- plastic up to 2mm thick
Technical data:
Usage warnings:
Use of hand tools may be dangerous! Always use personal protection equipment at work. Use only proper undamaged tools. Select the type and size of tool according to intended application. Do not overload tools. Keep tools away from children. Use tools with proper care.
