YATO Hydraulischer Plattenstanze 22 - 60 mm 360°

Brand	Yato
Entity responsible for this product in the EU	TOYA S.A.More
Series	GRD

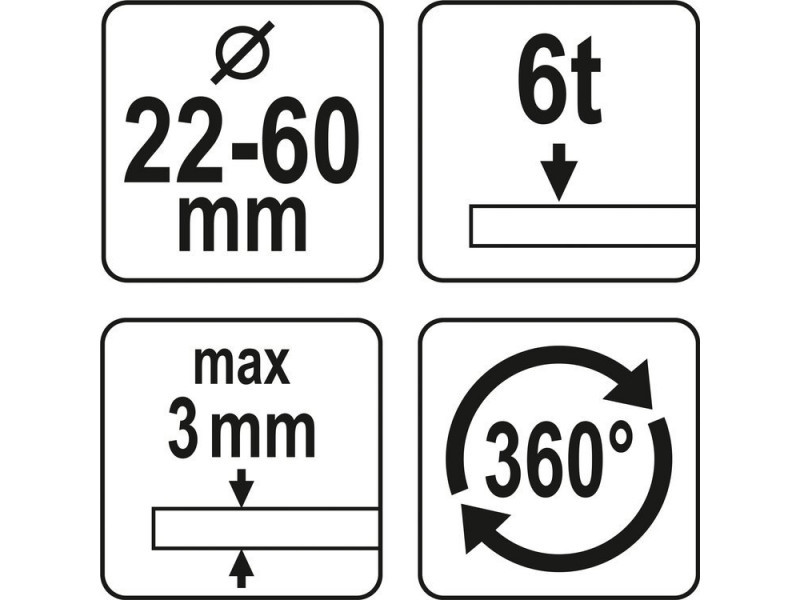

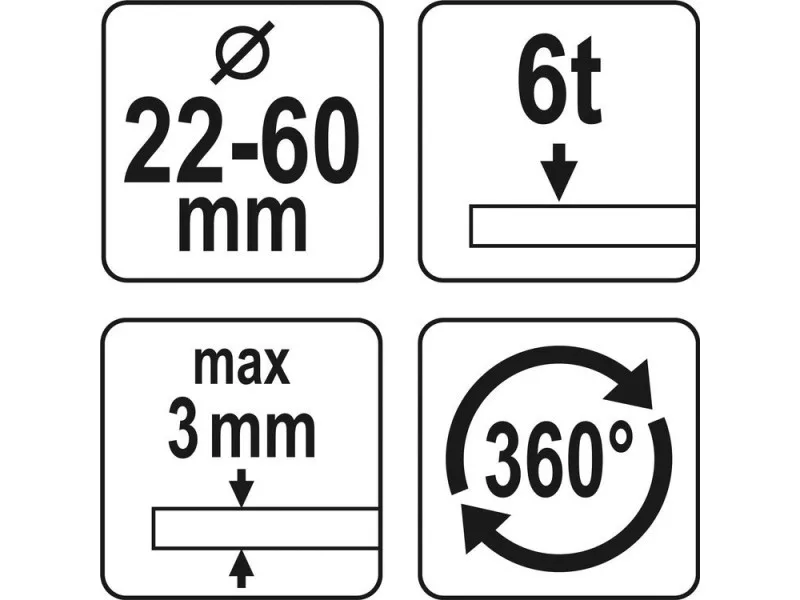

Cutting diameter	22-60 mm
Force pressure	6 t
Max. steel sheet thickness	3 mm
Rotary head	yes
Application	for cutting round holes in sheet metal, for cutting holes in the production of switchboards, for mounting boxes or switches
Symbol	YT-18900

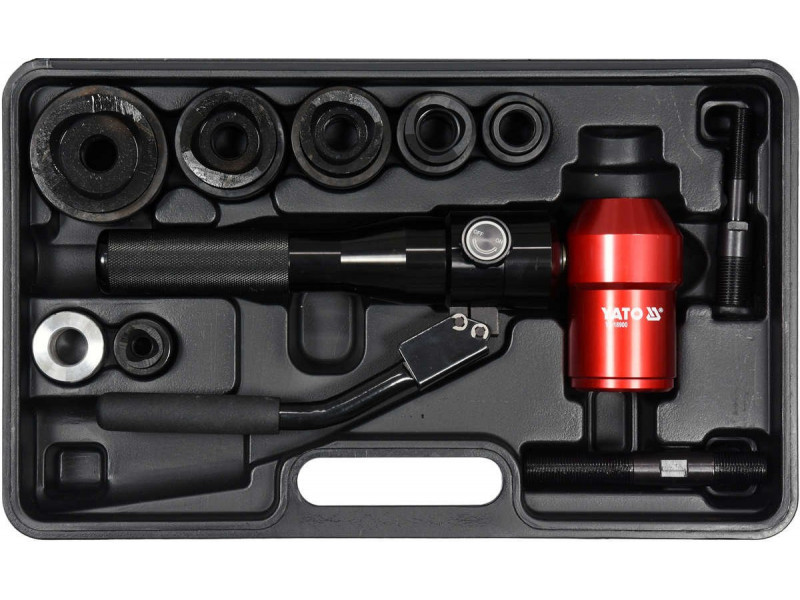

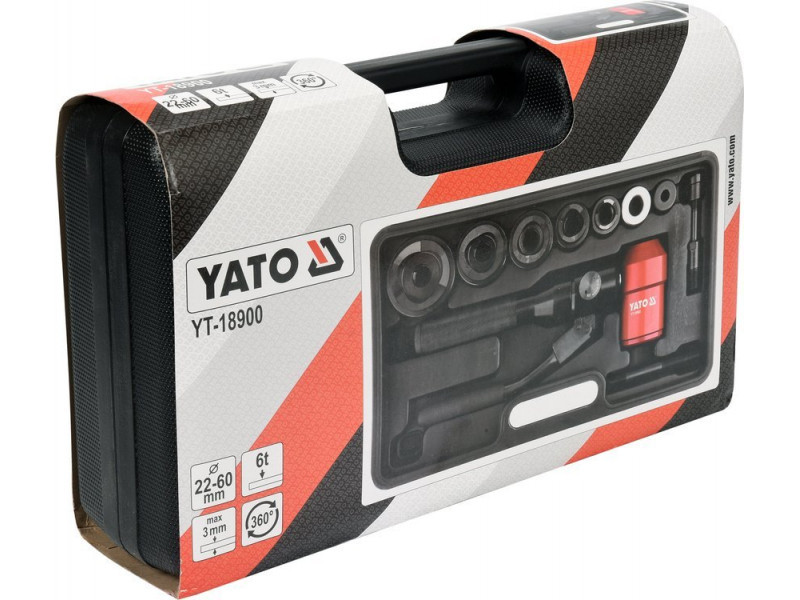

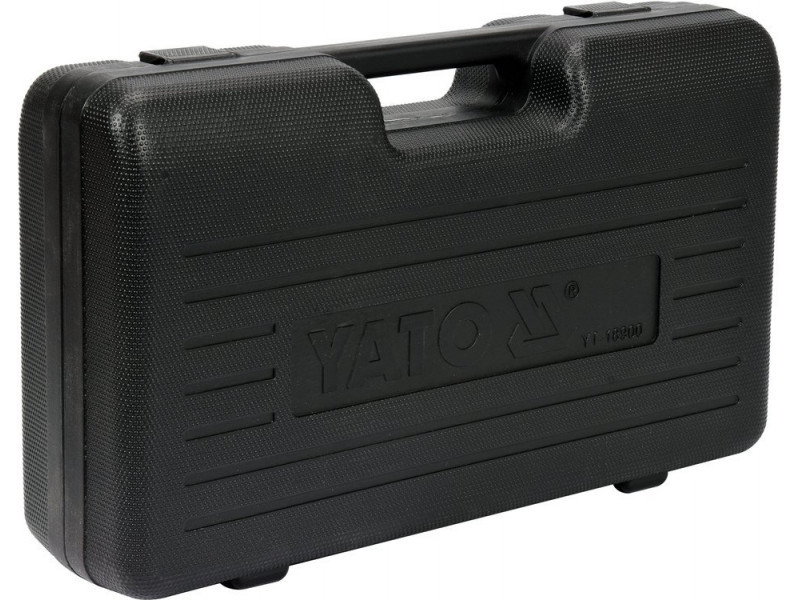

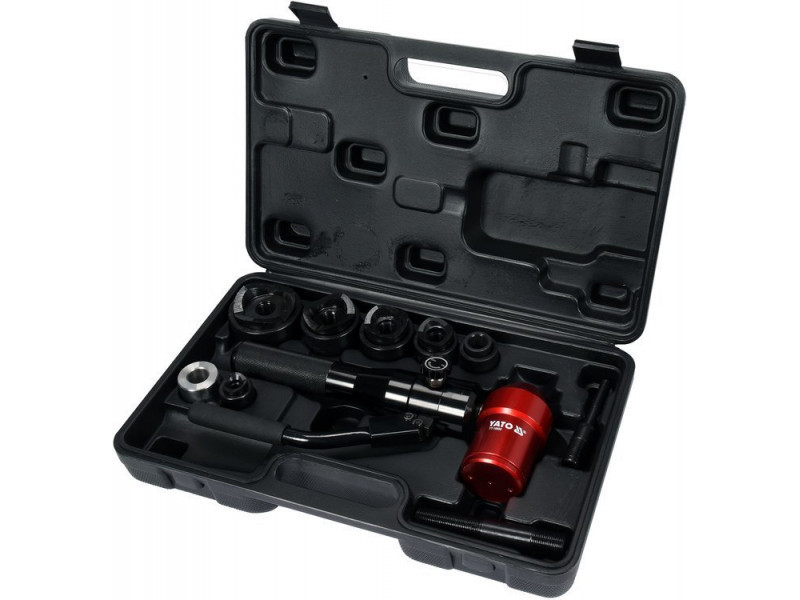

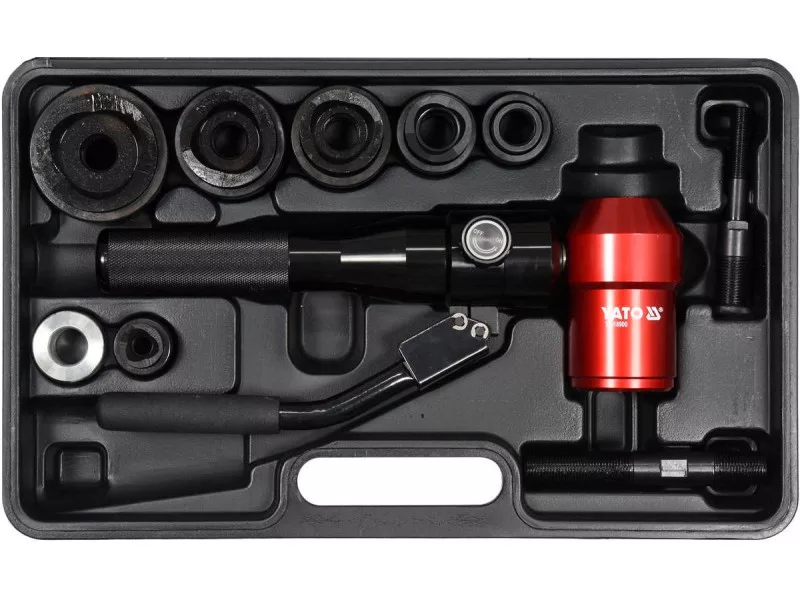

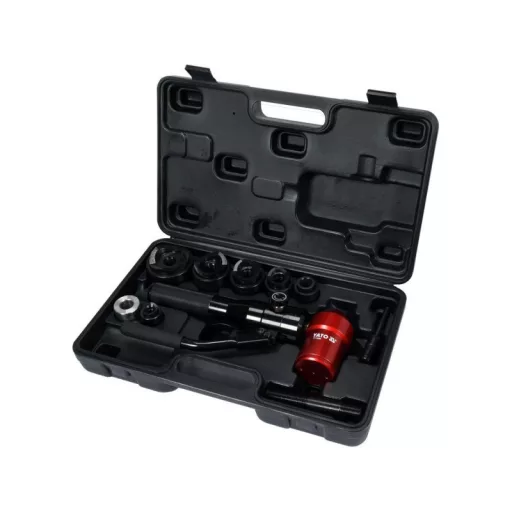

Set for cutting round holes in sheets in the diameter range from 22-60 mm. The head of the hydraulic actuator can be rotated 360 degrees. It is intended for cutting holes in the production of resolution cabinets for mounting cans or switches. When cutting the holes, the surface of the sheet is not deformation and damage. The set is easy to transport- packed in a durable suitcase. Contains matrices and stamps cutting holes with diameters 22 mm/0.9 ", 27.5 mm/1.1", 34 mm/1.3 ", 43 mm/1.7", 49 mm/2.0 ", 60 mm/2.4 ". The emphasis on the material during cutting is about 6 tons. Suitable for cutting holes in steel sheets, stainless sheets and colored metals. The thickness of the cut material depending on its type up to 3 mm. The set includes 6 pairs of dies/stamp and matrix/fi 22, 27.5, 34, 43, 49, 60 mm, 2 puffs for fastening 7/16x3/4 inches and 3/4x3/4 inches, manual actuator and 1 sealing set for quick cutting in sheet metal, large, precise holes with diameters from 22-60 mm in accordance with the instruction on the user manual. Transfer the appropriate fastener connected to the actuator through the drilled material, mount the stamp on it on one side on the other. . Manual cylinder with rotating head, cutting stamps 22 mm/0.9 ", 27.5 mm/1.1", 34 mm/1.3 ", 43 mm/1.7", 49 mm/2.0 " , 60 mm/2.4 matrices suitable for stamps- 22 mm/0.9 ", 27.5 mm/1.1", 34 mm/1.3 ", 43 mm/1.7", 49 mm/2 , 0 ", 60 mm/2.4 Plays for fastening 7/16x3/4 inches and 3/4x3/4"., Sealing set packed in a suitcase.
