| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRF |
| Max. lifting capacity | 3 t |
| Lifting range | 125-1320 mm |
| Lifting capacity | 3 (125 mm ≤H 305 mm), 2.25 (305 mm ≤H 610 mm), 1.5 (610 mm ≤H 915 mm), 0.75 (915 mm ≤H 1220 mm), 0.375 (H≥1220 mm) t |
| Size | 60" (1530 mm) |
| Dimensions | 1515x245x140 mm |
| Min. load capacity | 75 kg |
| Weight | 14 kg |
| Application | for lifting vehicles with a high chassis, including off-road vehicles, as well as agricultural machines and equipment, as a puller or spreader |
| Symbol | YT-17262 |

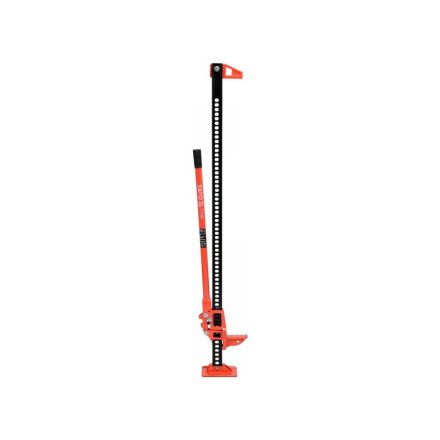

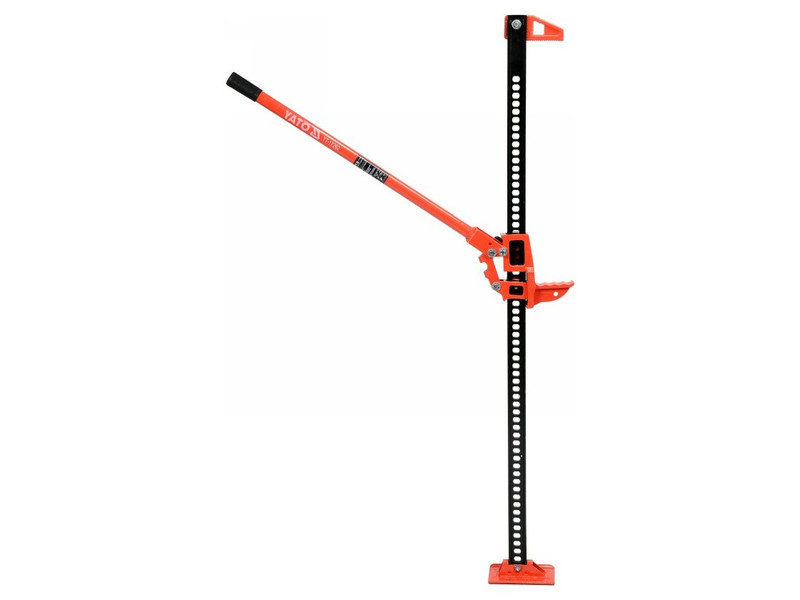

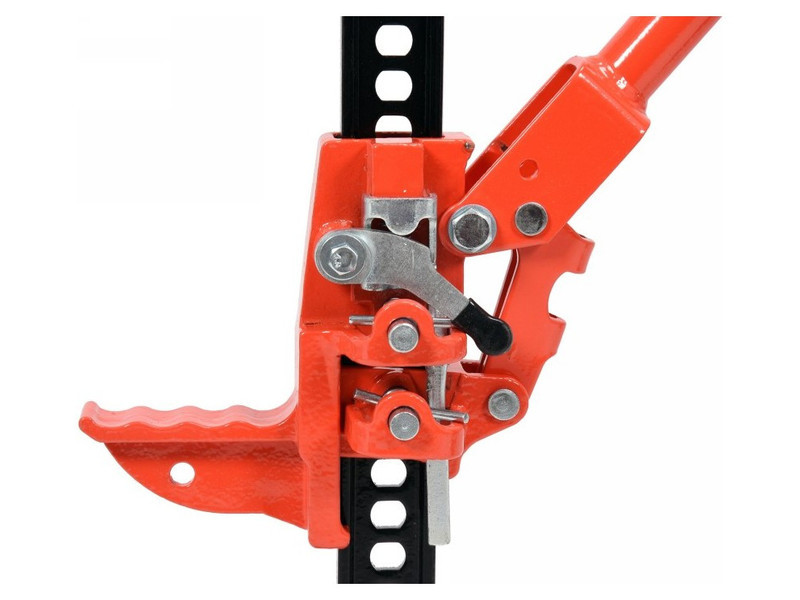

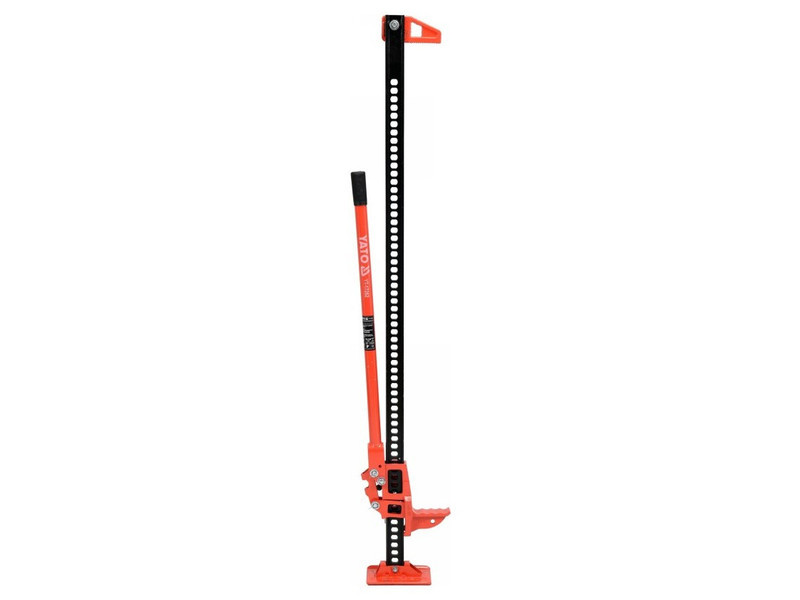

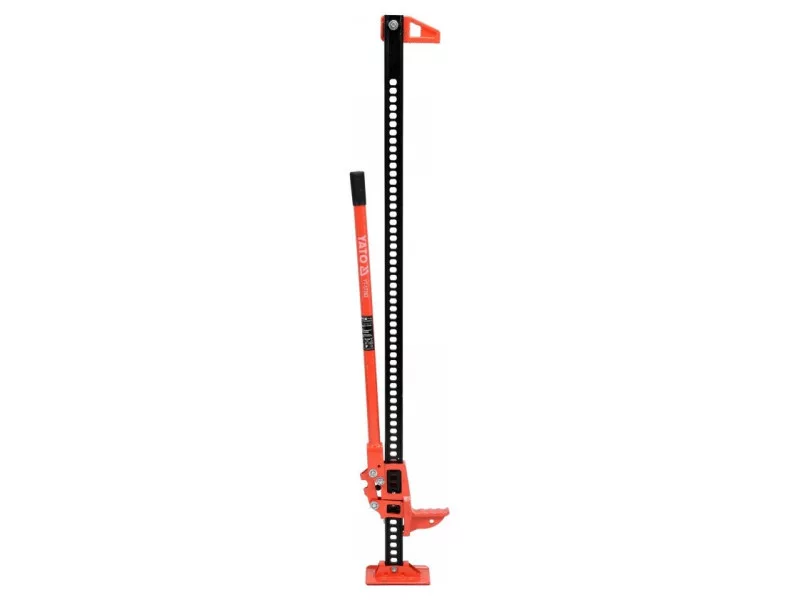

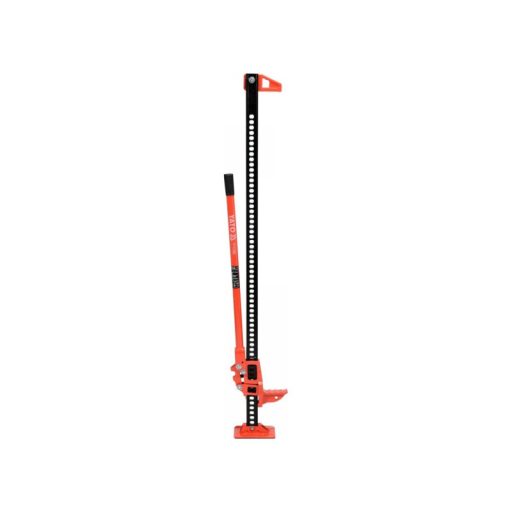

Description:
Ideal for lifting vehiclesós with high-suspended chassis, including off-road cars, as well as agricultural machinery and equipment. Can be used as a puller or spreader.
- lifting capacity of up to 3 tons
- foot allows the jack to be used on any surface
- very easy to change the direction of góra–dół
- enable to pull out „buried” car in several minutes
Technical data:
- Lift dimensions: 1515x245x140mm
- Weight: 14kg
.
Usage warnings:
Before using the elevator, read the instructions carefully.
Do not exceed the lifting capacity of the elevator.
It is imperative to place the jack on a firm, level and stable surface.
Do not perform any activities under an elevated and unsecured vehicle.
