| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRF |
| Holder size | 1" (25.0 mm) |
| Toolholder type | Driver |
| Stroke mechanism type | PINLESS HAMMER |
| Max. working pressure | 0.63 MPa |
| Recommended working pressure | 0.63 MPa |
| Required air flow | 650 l/min |
| Rotations | 7000 min⁻¹ |
| Max. torque | 5800 Nm |
| Quick coupler size | 1/2" (12.7 mm) |
| Air connection diameter (PT) | 1/2" (12.7 mm) |
| Air supply hose inside diameter | 1/2" (12.7 mm) |
| Length | 675 mm |
| Casing material | aluminum |
| Rotation switch | yes |
| Acoustic pressure | 84.4 ± 3.0 dB(A) |
| Acoustic power | 95.4 ± 3.0 dB(A) |
| Vibrations | 2.6 ± 1.5 m/s² |
| Weight | 21 kg |
| Set includes | pneumatic wrench, hose connector |
| Application | industry, mobile and stationary car services, tire and truck services |
| Symbol | YT-09620 |

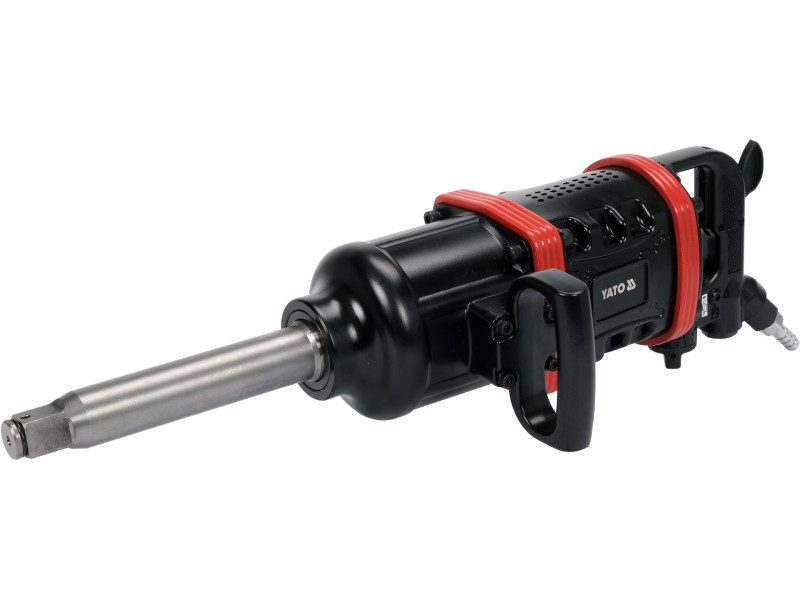

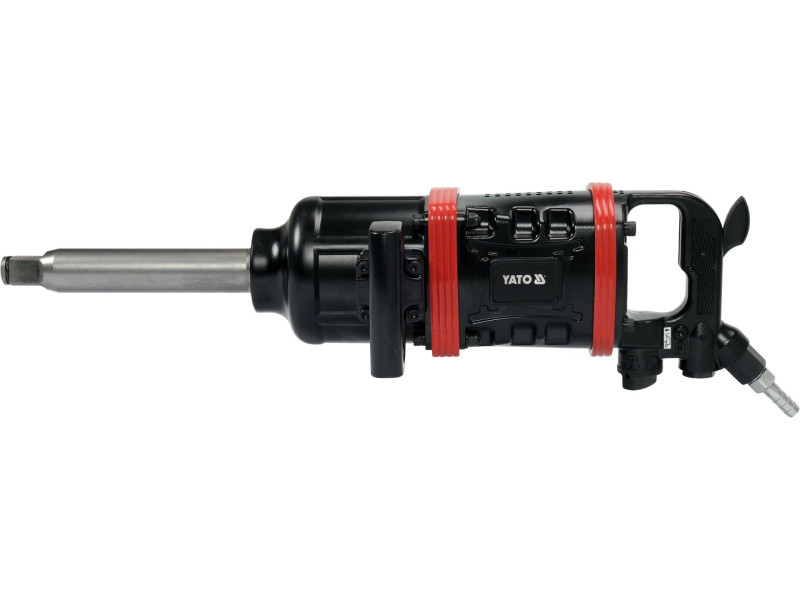

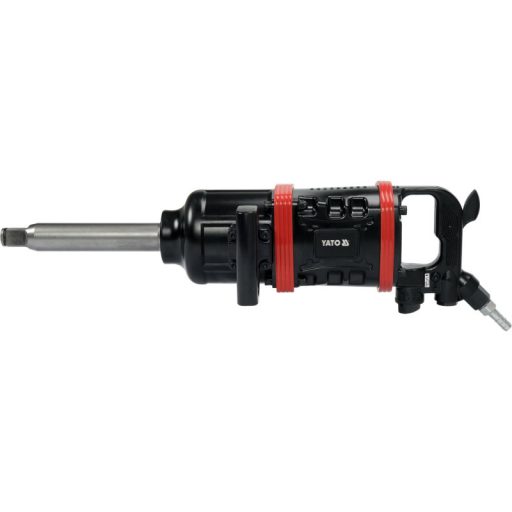

High-end 1" pneumatic wrench with extremely high torque of 5800 Nm.
Ideal indispensable in industrial plants, vulcanization plants, as well as mobile and stationary car repair shops.
It is perfect for repairing trucks, buses, tractors and other heavy equipment. It provides very efficient work.
- generates 7000 rpm
- max. torque: 5800 Nm
- impact mechanism: pinless hammer
- tool handle: 1"
- solid aluminum housing

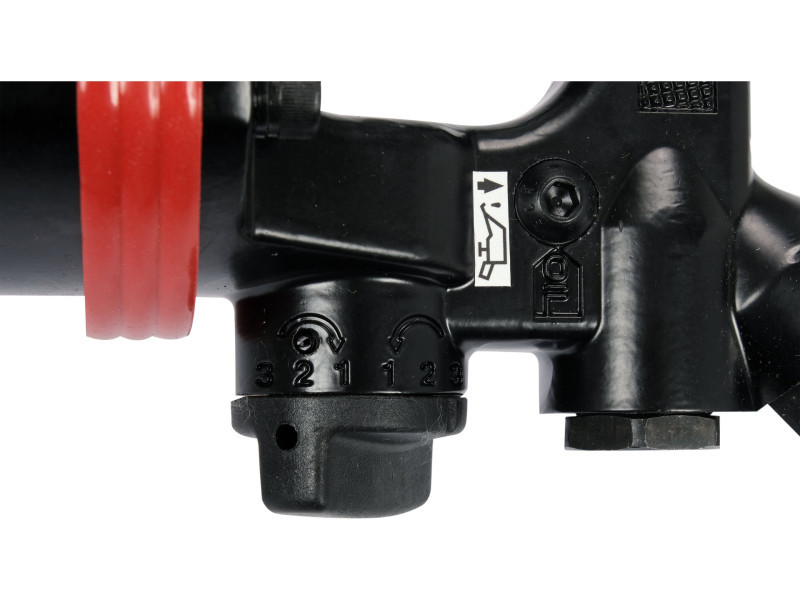

- rpm switch
- air flow: 650 l/min
- max working pressure: 0.63 MPa
- connection: 1/2"
