| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRF |
| Holder size | 1" (25.0 mm) |
| Toolholder type | Driver |
| Stroke mechanism type | PINLESS HAMMER |
| Max. working pressure | 1 MPa |
| Recommended working pressure | 0.6-1 MPa |
| Required air flow | 450 l/min |
| Rotations | 5000 min⁻¹ |
| Max. torque | 4800 Nm |
| Quick coupler size | 1/2" (12.7 mm) |
| Air connection diameter (PT) | 1/2" (12.7 mm) |
| Air supply hose inside diameter | 1/2" (12.7 mm) |
| Length | 620 mm |
| Casing material | aluminum |
| Rotation switch | yes |
| Acoustic pressure | 97.0 ± 3.0 dB(A) |
| Acoustic power | 108.0 ± 3.0 dB(A) |
| Vibrations | 12.579 ± 1.5 m/s² |
| Weight | 19 kg |
| Set includes | pneumatic wrench, hose connector |
| Application | industry, mobile and stationary car services, tire and truck services |
| Symbol | YT-09618 |

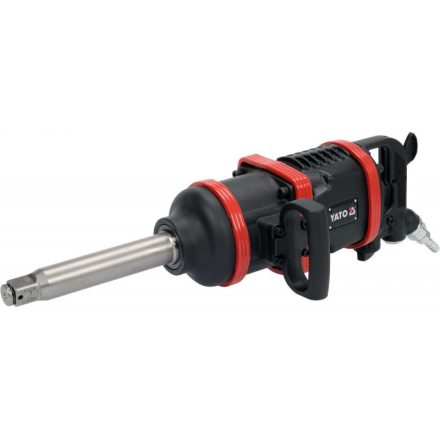

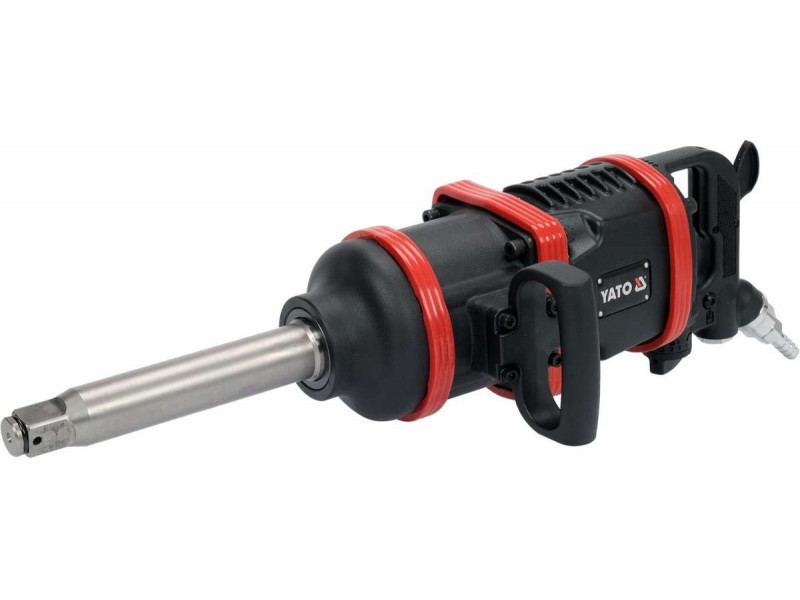

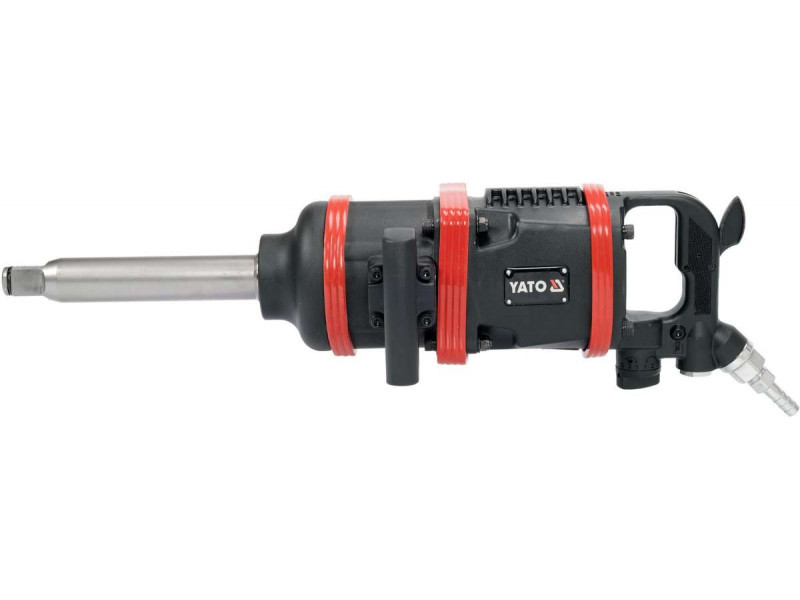

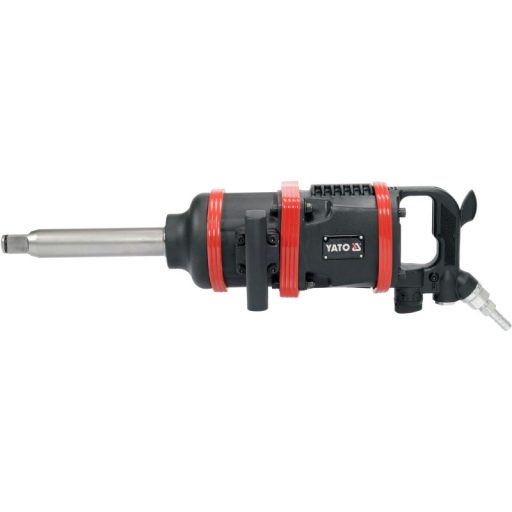

High-end 1" pneumatic wrench with extremely high torque of 4800 Nm.
Ideal indispensable in industrial plants, vulcanization plants, and mobile and stationary car repair shops.
It is perfect for repairing trucks, buses, tractors and other heavy equipment. It provides very efficient work.
- generates 5000 rpm
- max. torque: 4800 Nm
- impact mechanism: pinless hammer
- tool handle: 1"
- solid aluminum housing

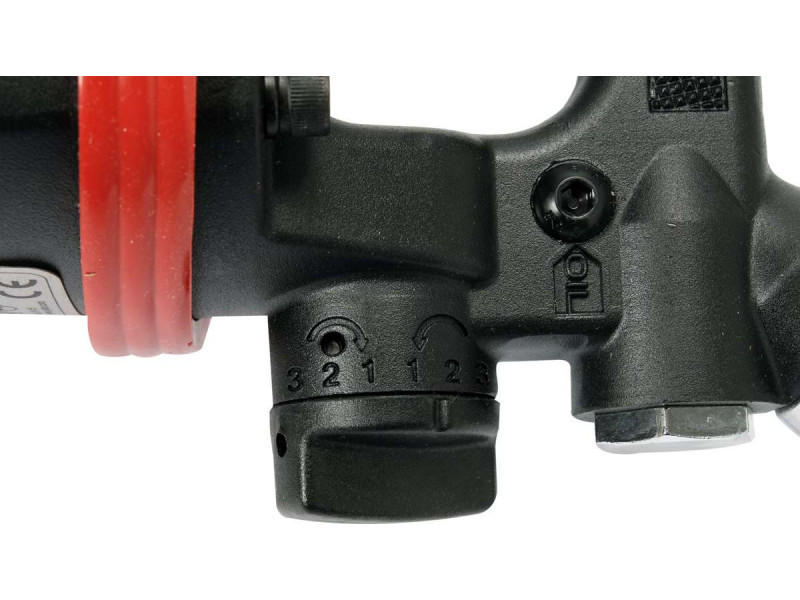

- rpm switch
- air flow: 450 l/min
- max working pressure: 1 MPa
- connection: 1/2"
