| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRF |
| Holder size | 1" (25.0 mm) |
| Toolholder type | Driver |
| Stroke mechanism type | PINLESS HAMMER |
| Max. working pressure | 1 MPa |
| Recommended working pressure | 0.6-1 MPa |
| Required air flow | 355 l/min |
| Rotations | 3500 min⁻¹ |
| Max. torque | 3200 Nm |
| Quick coupler size | 1/2" (12.7 mm) |
| Air connection diameter (PT) | 1/2" (12.7 mm) |
| Air supply hose inside diameter | 1/2" (12.7 mm) |
| Length | 670 mm |
| Casing material | aluminum |
| Rotation switch | yes |
| Acoustic pressure | 97.1 ± 3.0 dB(A) |
| Acoustic power | 108.1 ± 3.0 dB(A) |
| Vibrations | 13.75 ± 1.5 m/s² |
| Weight | 16.7 kg |

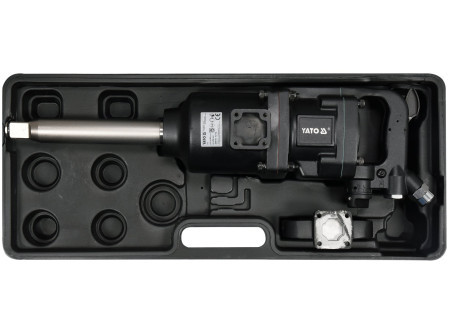

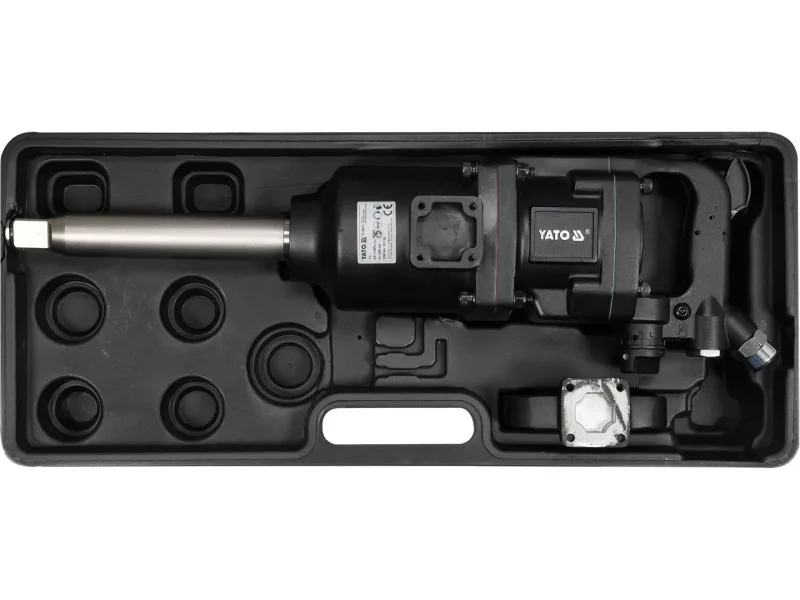

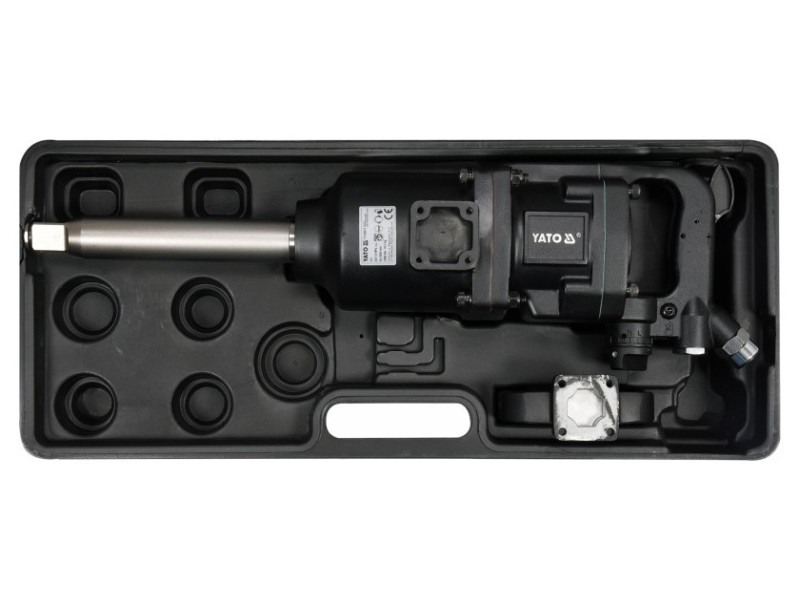

| Set includes | pneumatic wrench, hose connector |
| Application | industry, mobile and stationary car services, tire and truck services |
| Symbol | YT-09615 |

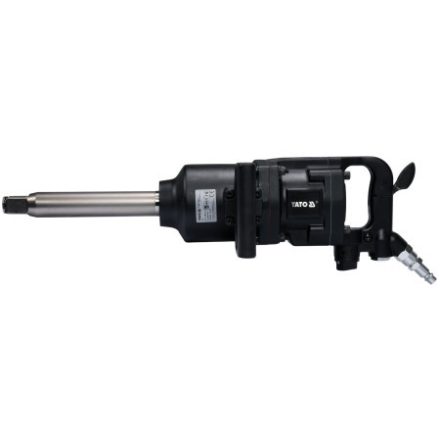

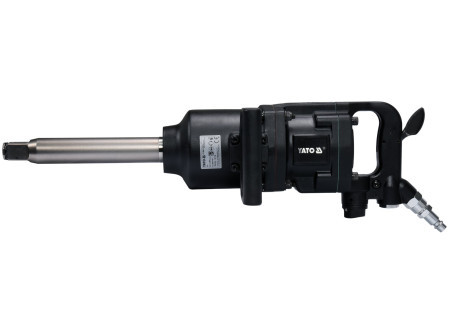

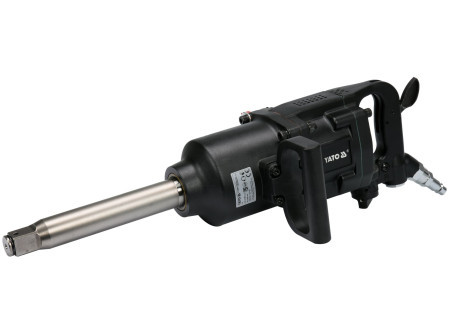

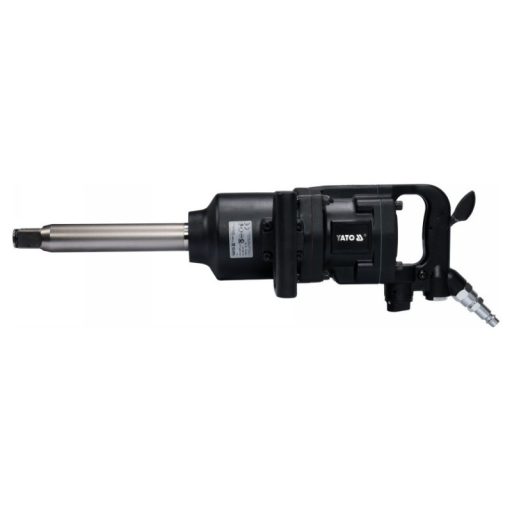

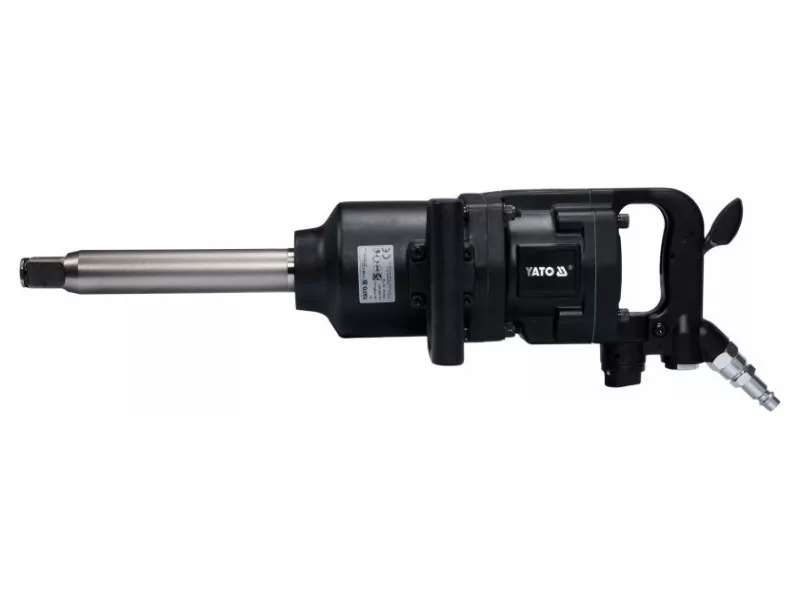

YATO's 1" 3200Nm pneumatic wrench is an indispensable tool in places where precision and speed are important. The PINLESS HAMMER impact mechanism minimizes energy loss, which translates into maximum efficiency. The adjustable direction of rotation and quick coupling make it easy to operate the tool in all conditions.
The aluminum housing ensures durability while maintaining a relatively low weight, and the ergonomic design minimizes fatigue during operation. The wrench meets the highest safety standards and can withstand harsh operating conditions.
The wrench requires an air flow of 355 l/min and a pressure in the range of 0.6-1 MPa.
Key product features:
- maximum torque: 3200 Nm - guarantee of efficiency even in the most difficult tasks.
- PINLESS HAMMER impact mechanism - durability and reliability
- aluminum construction - lightweight, yet durable
- direction of rotation switch - convenient change of working mode
- high speed - provides fast and efficient operation
- ergonomic handle - comfort of use during prolonged work
