| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRF |
| Holder size | 1/2" (12.7 mm) |
| Toolholder type | Driver |
| Stroke mechanism type | TWIN HAMMER |
| Max. working pressure | 0.63 MPa |
| Required air flow | 184 l/min |
| Rotations | 7000 min⁻¹ |
| Max. torque | 680 Nm |
| Quick coupler size | standard |
| Air connection diameter (PT) | standard |
| Air supply hose inside diameter | 3/8" (9.5 mm) |
| Length | 170 mm |
| Casing material | composite, duralumin |
| Rotation switch | yes |
| Acoustic pressure | 95.0 ± 3.0 dB(A) |
| Acoustic power | 106.0 ± 3.0 dB(A) |
| Vibrations | 9.1 ± 1.5 m/s² |
| Weight | 2.7 kg |
| Set includes | pneumatic wrench, hose connector |
| Application | industry, mechanical workshops, car services |
| Symbol | YT-09524 |

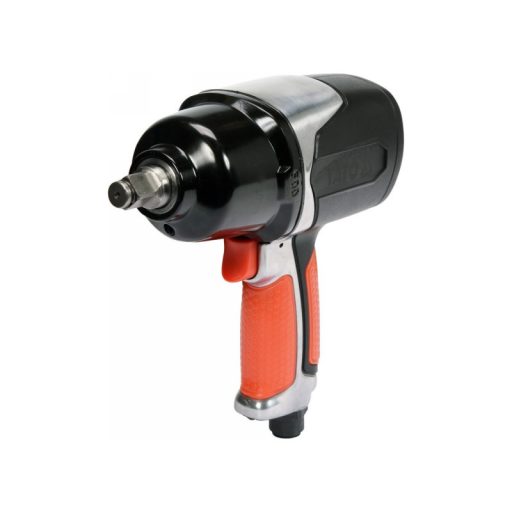

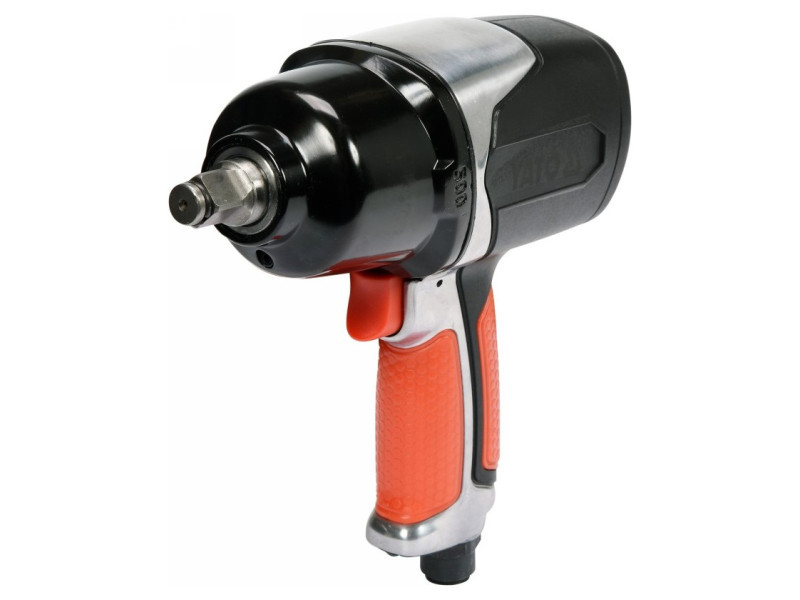

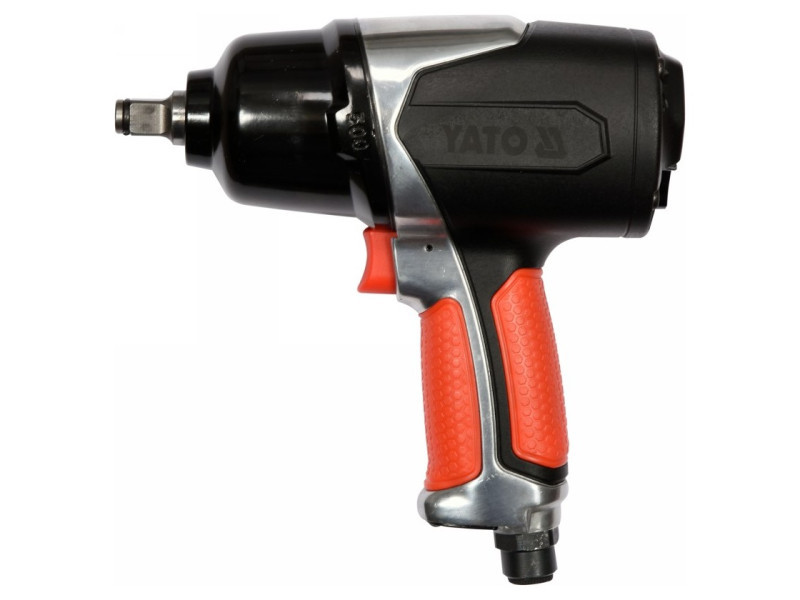

Pneumatic wrench 1/2" 680 Nm by YATO.

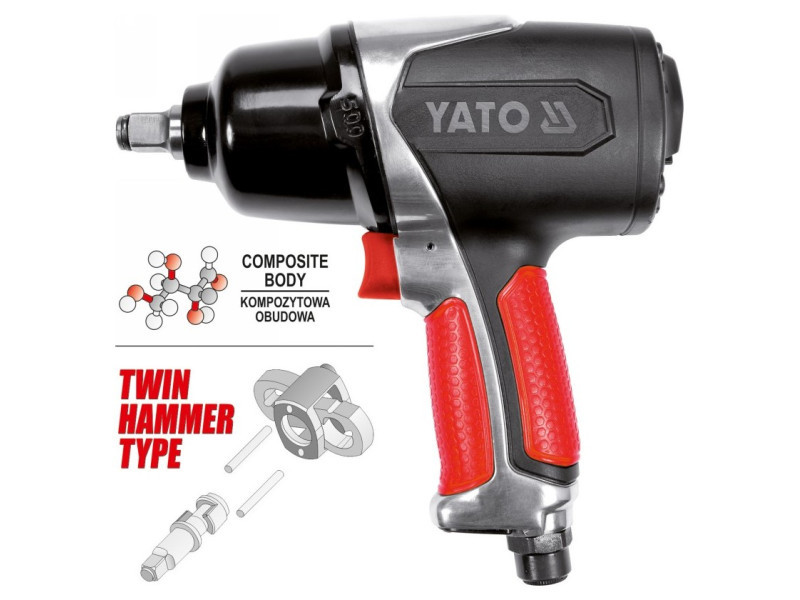

Made of composite casting and duralumin. The TWIN HAMMER impact mechanism guarantees high efficiency and outstanding durability. Use in industry, mechanical services and auto repair shops
The wrench is designed for use in mechanical workshops and auto repair shops. Body made of duralumin combined with composite.
• ergonomic housing
• handle that eliminates „cold touch”
• trój-stage rotational torque adjustment
Technical data:
• length: 205 mm
• weight: 2.7 kg
• maximum torque: 680 Nm
• air consumption: 184 l/min
• maximum speed: 7000 rpm
• 1/2&rdquo drive;
