| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRF |
| Connecting elements type | nails |
| Connecting elements length | 45-70 mm |
| Connecting elements dimensions | 45-70x2.1-2.9x5.7-7 mm |
| Max. working pressure | 0.8 MPa |
| Recommended working pressure | 0.4-0.8 MPa |
| Air connection diameter (PT) | standard |
| Air supply hose inside diameter | 3/8" (9.5 mm) |
| Dispenser capacity | 225-300 szt. |
| Dimensions | 315x280x306 mm |
| Body material | aluminum |
| Handle material | rubber |
| Wire collated nail angle | 15 ˚ |
| Functions | sequential operating mode, side loading system |
| Dust cover | yes |
| Fuse | yes |
| Acoustic pressure | 94.9 ± 2.5 dB(A) |
| Acoustic power | 107.9 ± 2.5 dB(A) |
| Vibrations | 4.45 ± 0.83 m/s² |
| Weight | 3 kg |
| Application | upholstery, carpentry, finishing works |
| Symbol | YT-09222 |

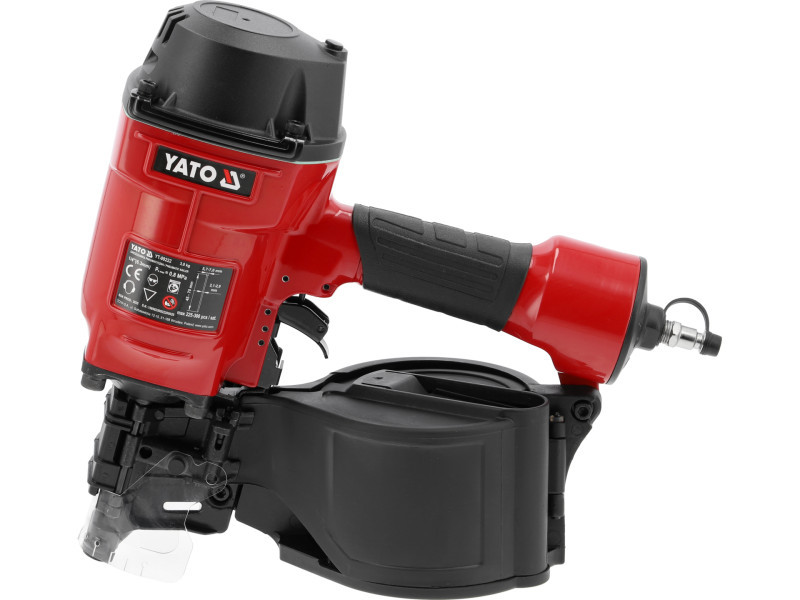

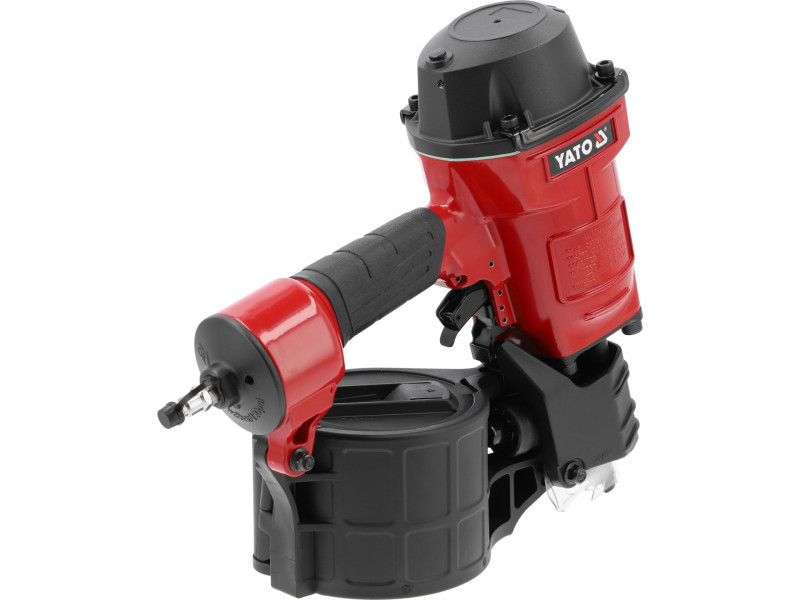

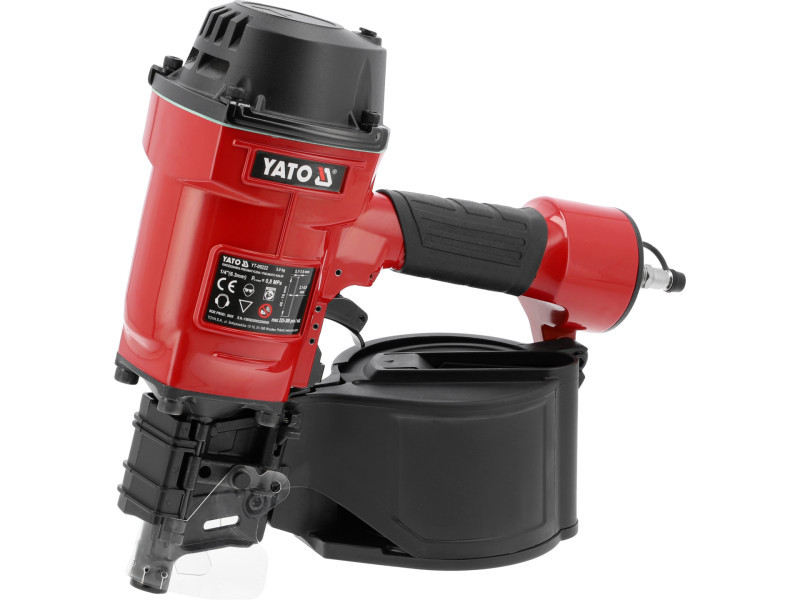

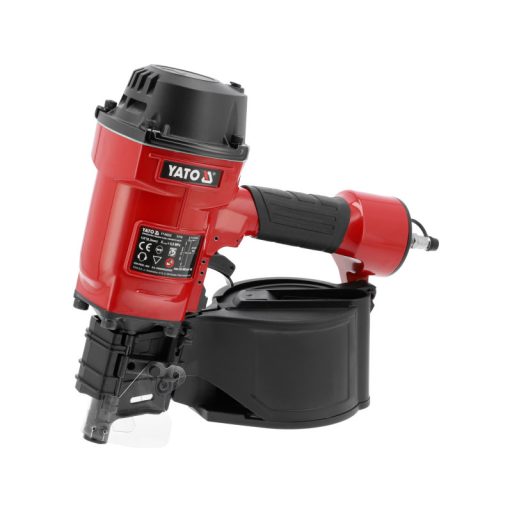

A professional drum nailer provides precise, fast, and durable fastening of materials using nails. Designed for demanding and intensive carpentry, assembly, and upholstery work, it also works well for light finishing tasks.
It features protection against accidental application, a side loading system, and a dust cover. The sequential mode streamlines work, increasing assembly efficiency.
- fastener length: 45-70 mm
- nail wire joining angle: 15°
- fastener dimensions: 45-70 x 2.1-2.9 x 5.7-7 mm
- max. operating pressure: 0.8 MPa

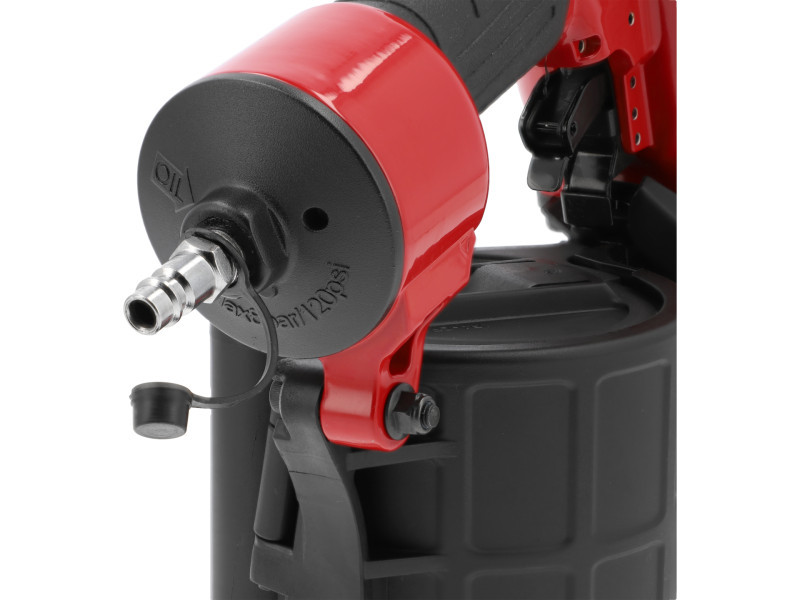

- air inlet diameter: standard
- internal air hose diameter: 3/8" (9.5 mm)
- 225-300 nail capacity magazine allows for longer continuous work
- sequential mode function allows for controlled, rhythmic driving of fasteners, improving accuracy and user safety

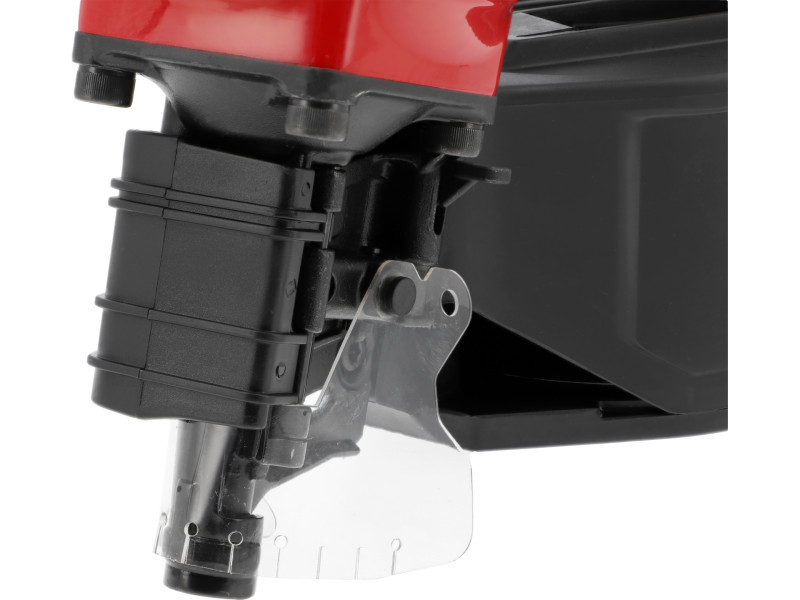

- safety fuse minimizes the risk of accidental tool activation
- dust cover increases tool longevity and protects the internal mechanism under intensive use conditions

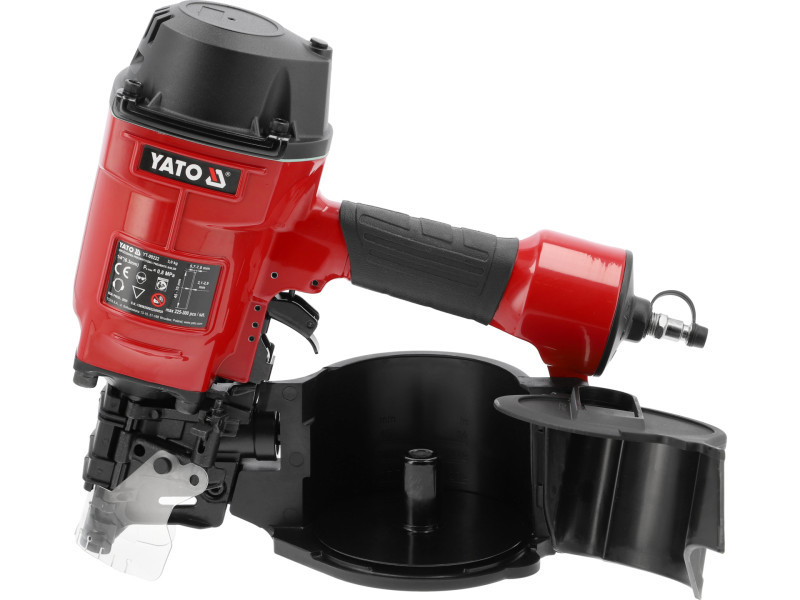

- side loading system facilitates and speeds up magazine refilling, particularly important for serial work
- aluminum body ensures high resistance to mechanical damage while maintaining a low device weight, especially appreciated during long hours of work
- anti-slip rubber handle provides a secure grip and reduces vibration transfer to the hand
- compact dimensions: 315 x 280 x 306 mm allow for easy maneuvering, even in hard-to-reach places
- weight: 3 kg
