| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRF |
| Connecting elements type | nails |
| Connecting elements length | 32-57 mm |
| Connecting elements dimensions | 32-57x2.1-2.3x5.5-5.7 mm |
| Max. working pressure | 0.8 MPa |
| Recommended working pressure | 0.4-0.8 MPa |
| Air connection diameter (PT) | standard |
| Air supply hose inside diameter | 3/8" (9.5 mm) |
| Dispenser capacity | 300-350 szt. |
| Dimensions | 283x131x270 mm |
| Body material | aluminum |
| Handle material | rubber |
| Wire collated nail angle | 15 ˚ |
| Functions | sequential operating mode, side loading system |
| Dust cover | yes |
| Fuse | yes |
| Acoustic pressure | 89.1 ± 2.5 dB(A) |
| Acoustic power | 102.1 ± 2.5 dB(A) |
| Vibrations | 2.95 ± 0.56 m/s² |
| Weight | 2.7 kg |
| Application | upholstery, carpentry, finishing works |
| Symbol | YT-09221 |

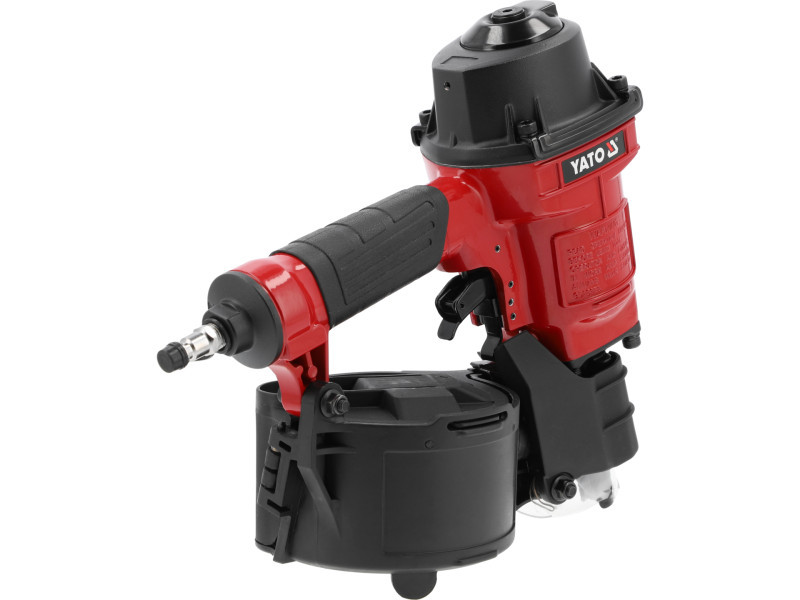

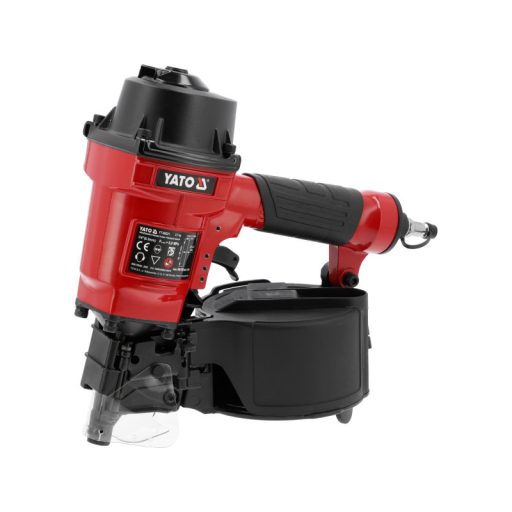

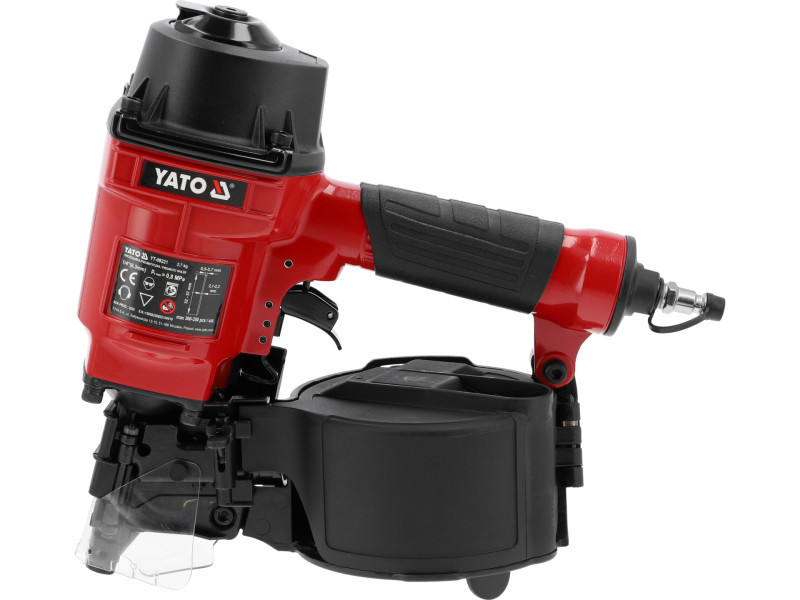

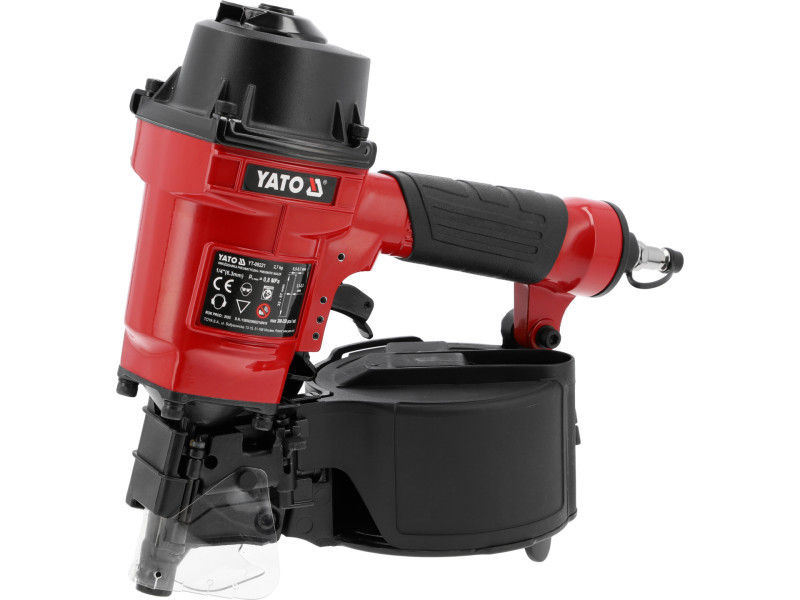

A professional drum nailer ensures precise, fast, and durable fastening of materials using nails. Designed for demanding and intensive carpentry, assembly, and upholstery work, it also performs well in light finishing tasks.
It features protection against accidental firing, a side loading system, and a dust cover. The sequential mode streamlines work, increasing assembly efficiency.
- fastener length: 32-57 mm
- nail wire joining angle: 15°
- fastener dimensions: 32-57 x 2.1-2.3 x 5.5-5.7 mm
- max. operating pressure: 0.8 MPa
- air inlet diameter: standard

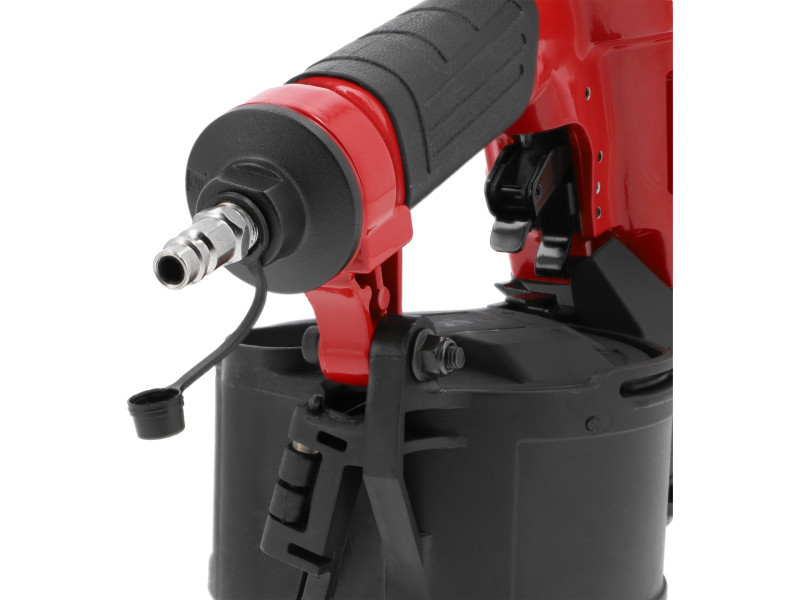

- inner diameter of air supply hose: 3/8" (9.5 mm)
- 300-350 nail capacity magazine allows for longer uninterrupted work
- sequential mode function enables controlled, rhythmic insertion of fasteners, improving accuracy and user safety
- safety fuse minimizes the risk of accidental tool activation

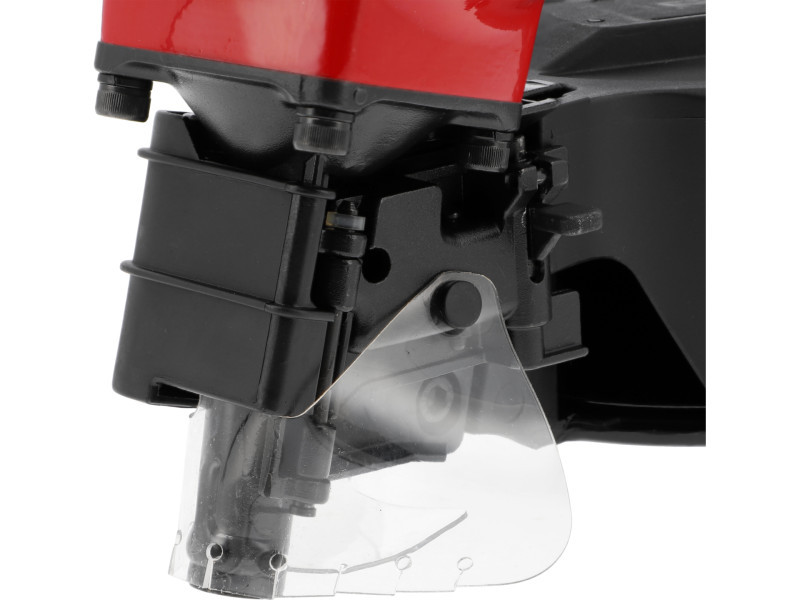

- dust cover increases tool lifespan and protects the mechanism in intense operating conditions

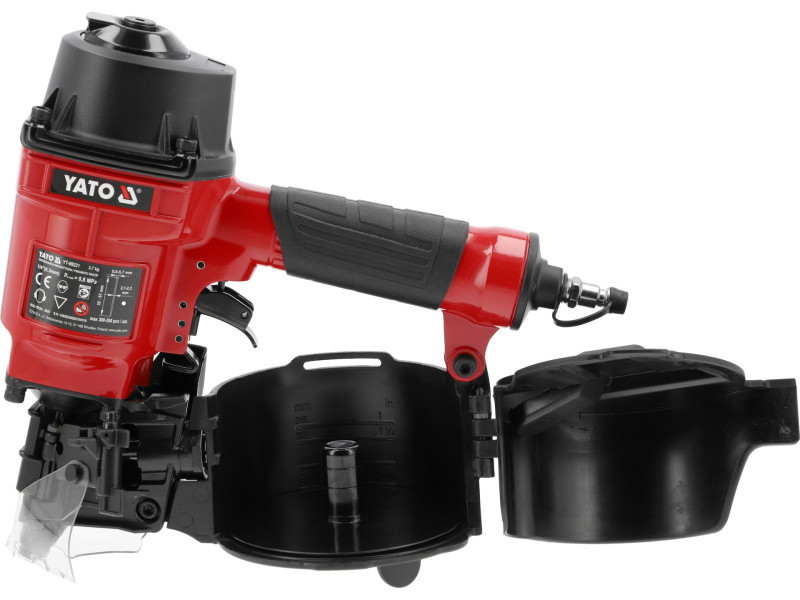

- side loading system facilitates and speeds up magazine replenishment, particularly important for serial work
- aluminum body ensures high resistance to mechanical damage while maintaining a low device weight, especially appreciated during long hours of work
- anti-slip rubber handle provides a secure grip and reduces vibration transfer to the hand
- compact dimensions: 283 x 131 x 270 mm allow for easy maneuverability, even in hard-to-reach places
- weight: 2.7 kg
