| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRF |
| Connecting elements type | staples, nails |
| Connecting elements length | 6-16 mm |
| Connecting elements dimensions | 6-16x0.65x12.7 (staples), 6-16x0.95x2 (nails) mm |
| Max. working pressure | 0.8 MPa |
| Recommended working pressure | 0.4-0.8 MPa |
| Air connection diameter (PT) | standard |
| Air supply hose inside diameter | 3/8" (9.5 mm) |
| Dispenser capacity | 100 szt. |
| Dimensions | 239x470x170 mm |
| Body material | aluminum |
| Handle material | rubber |
| Functions | sequential operating mode |
| Fuse | yes |
| Acoustic pressure | 87.8 ± 2.5 dB(A) |
| Acoustic power | 100.8 ± 2.5 dB(A) |
| Vibrations | 3.0 ± 1.5 m/s² |
| Weight | 0.83 kg |
| Application | upholstery, carpentry, finishing works |
| Symbol | YT-09204 |

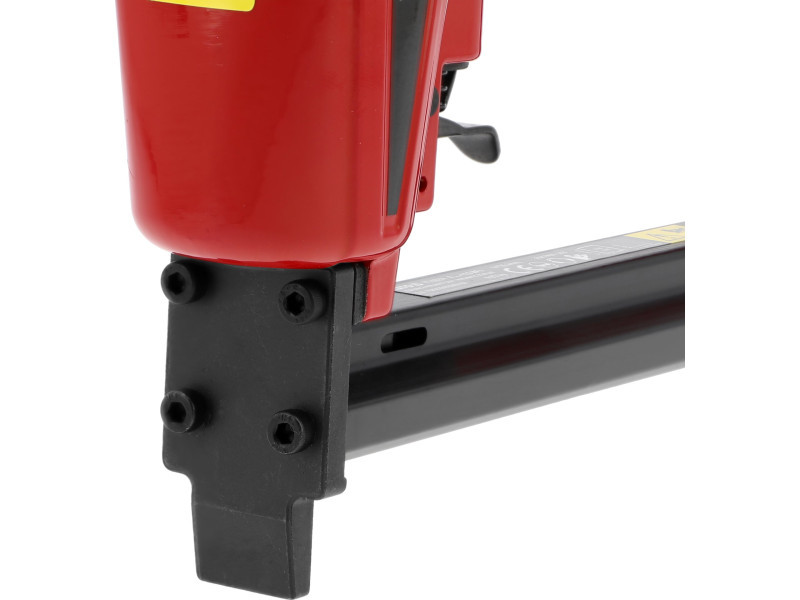

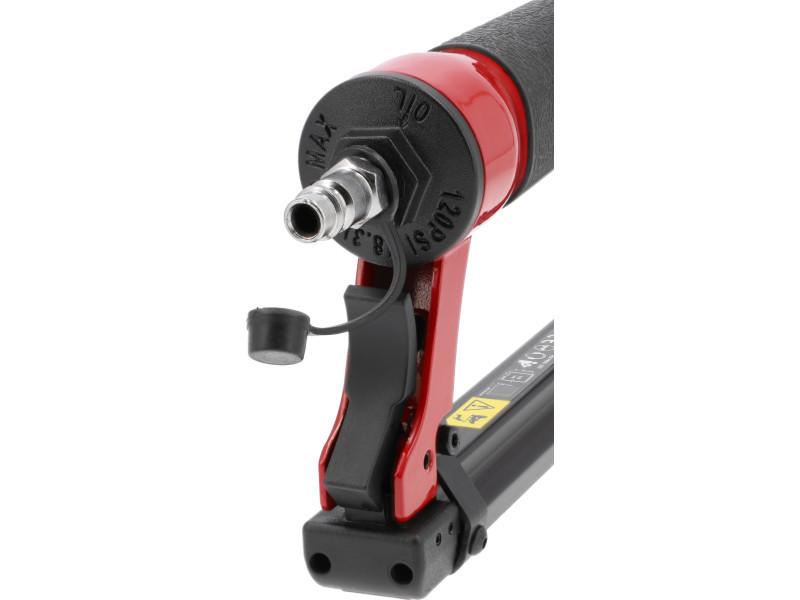

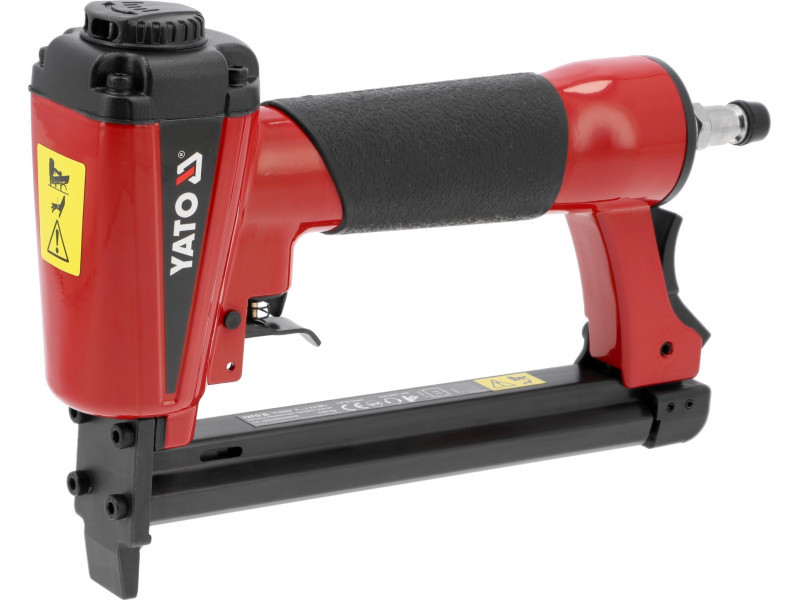

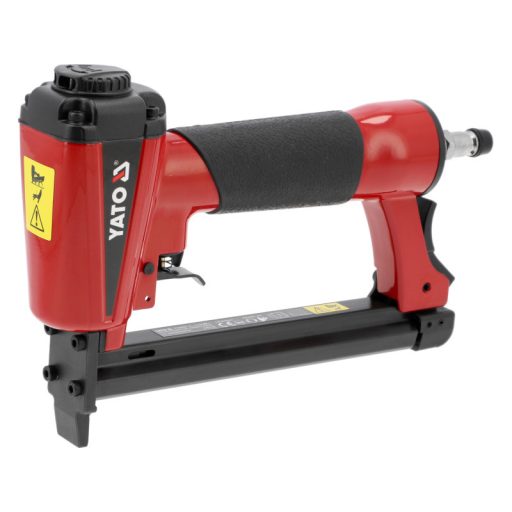

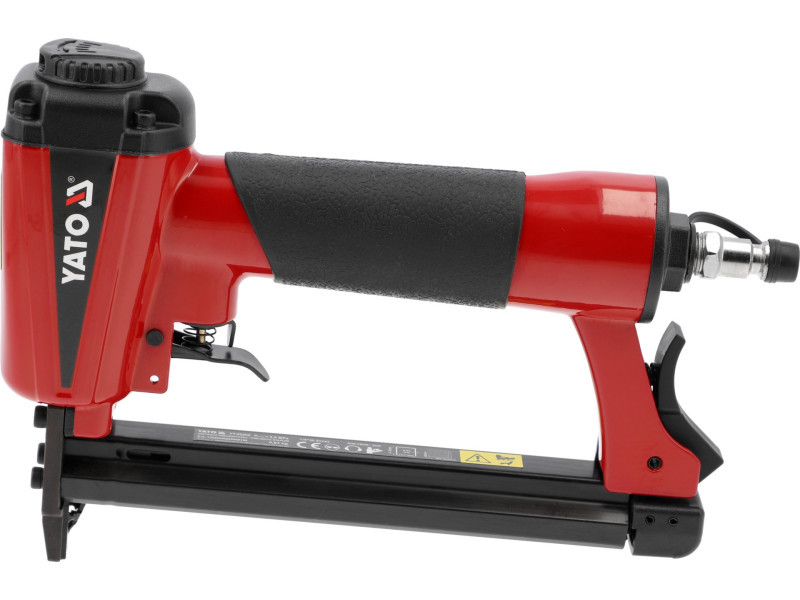

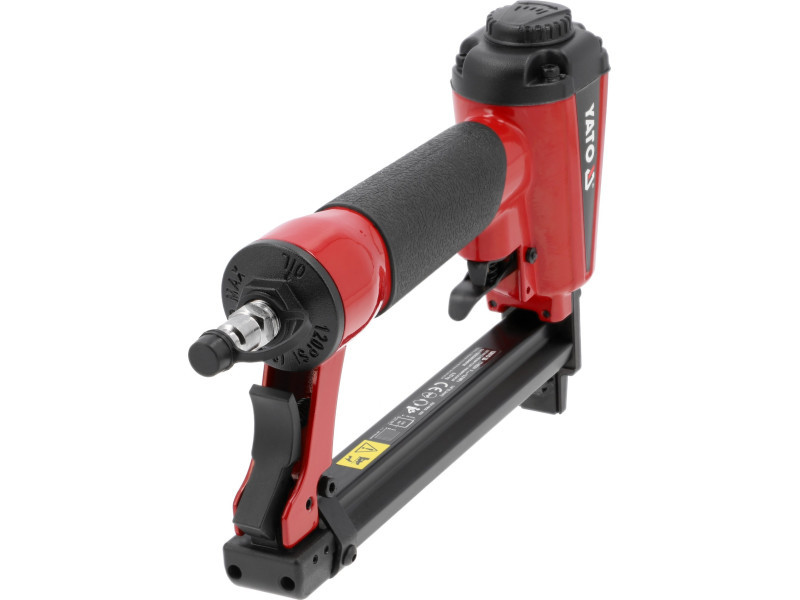

A professional and reliable pneumatic stapler designed for intensive upholstery, assembly, and carpentry work. Solid construction and practical functions ensure fast, safe, and precise joining of materials - both in serial work and in precise tasks.
The stapler handles staples and nails ranging in length from 6 to 16 mm. Thanks to two types of connectors, it is suitable for thin upholstery fabrics as well as harder wooden materials.
The pneumatic power supply with a maximum operating pressure of 0.8 MPa ensures constant driving force and high efficiency. The standard air connection and compatibility with a 3/8" (9.5 mm) hose make the tool work seamlessly with most compressors available on the market.
- length of connectors: 6-16 mm
- dimensions of connectors: 6-16 x 0.65 x 12.7 mm (staples), 6-16 x 0.95 x 2 mm (nails)
- max. operating pressure: 0.8 MPa
- air connection diameter: standard
- internal diameter of the air supply hose: 3/8" (9.5 mm)
- storage capacity for 100 staples or nails allows for longer work without frequent refilling
- sequential mode function allows for controlled, rhythmic driving of connectors
- safety fuse minimizes the risk of accidental tool activation
- aluminum body ensures high resistance to mechanical damage while maintaining a low device weight, especially appreciated during long hours of work
- non-slip rubber handle provides a firm grip and reduces vibration transfer to the hand
- compact dimensions: 239 x 470 x 170 mm allow for easy maneuvering, even in hard-to-reach places
- weight: 0.83 kg
Compatible staples: 71970, 71971, 71972.
