| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRF |
| Pcs | 78 |
| Dimensions | 520x320x720 mm |
| External dimensions | 420x220x150, 390x215x60, 390x215x60, 410x210x280 mm |
| Segment quantity | 3 |
| Drawer quantity | 4 |
| Tray count | 3 |
| Max. load capacity | 20, 5, 5, 15 kg |
| Material | PP, steel |
| Worktop material | PP |
| Grip | yes |
| Handle | yes |
| Handle material | aluminum |
| Worktop | yes |
| Wheels | yes |
| Wheel quantity | 2 |
| Corner bumpers | yes |
| Modules protection | yes |
| Telescopic | yes |
| Symbol | YT-09104 |

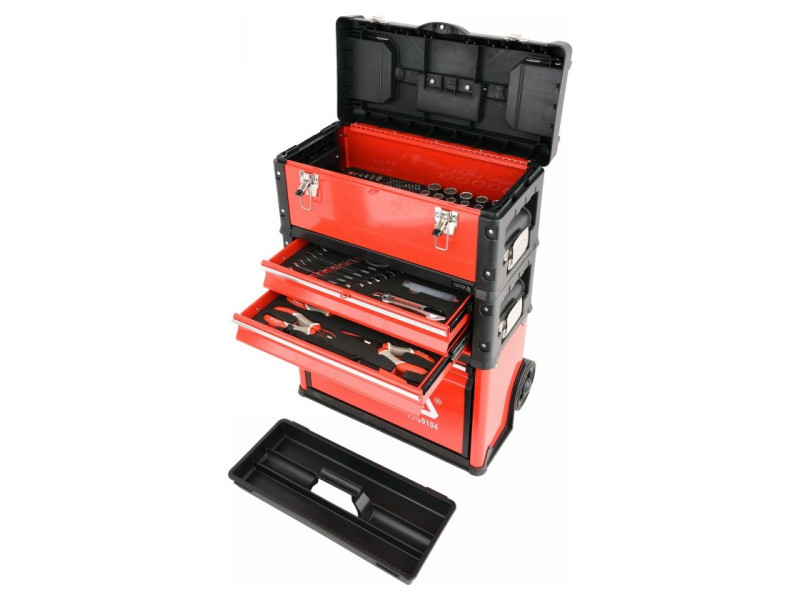

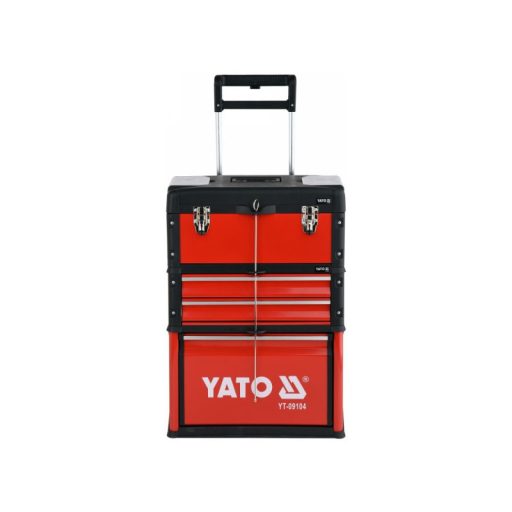

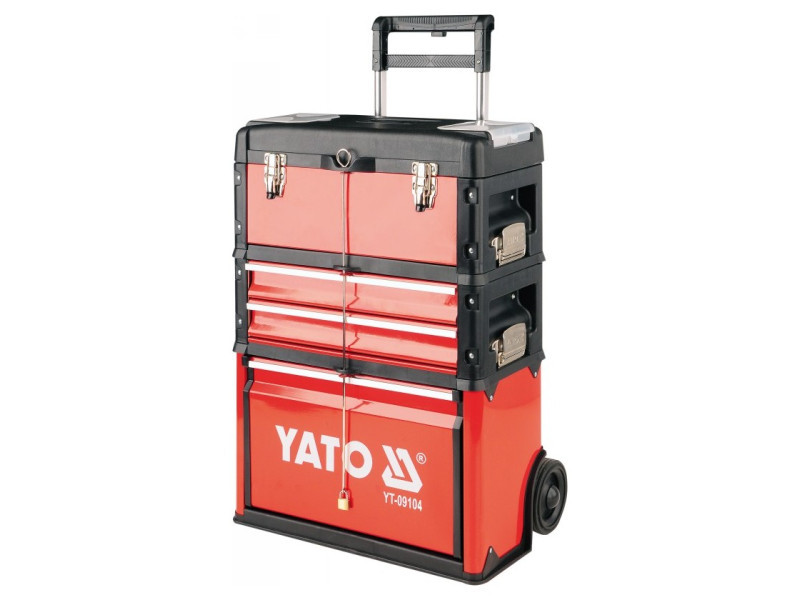

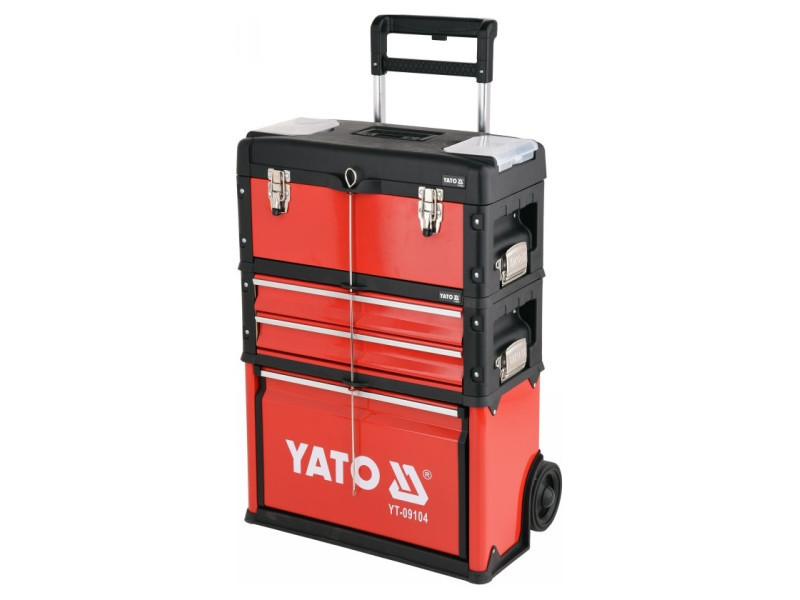

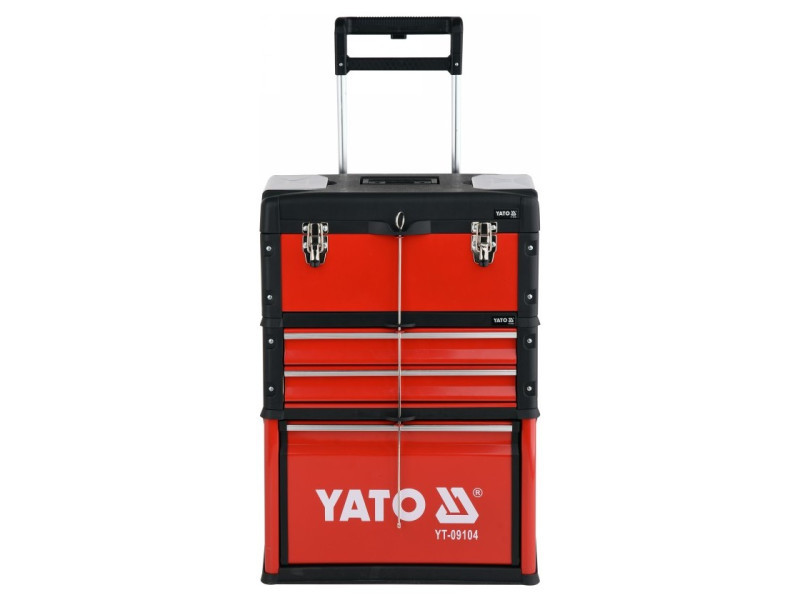

The 3-piece toolbox by YATO with 78 elements equipped.
The set includes a bottom box equipped with built-in kóbenches, a telescopic aluminum handle and a large tilting drawer.
The load capacity of the lower module is 15 kg, dimensions 410x210x280 mm.

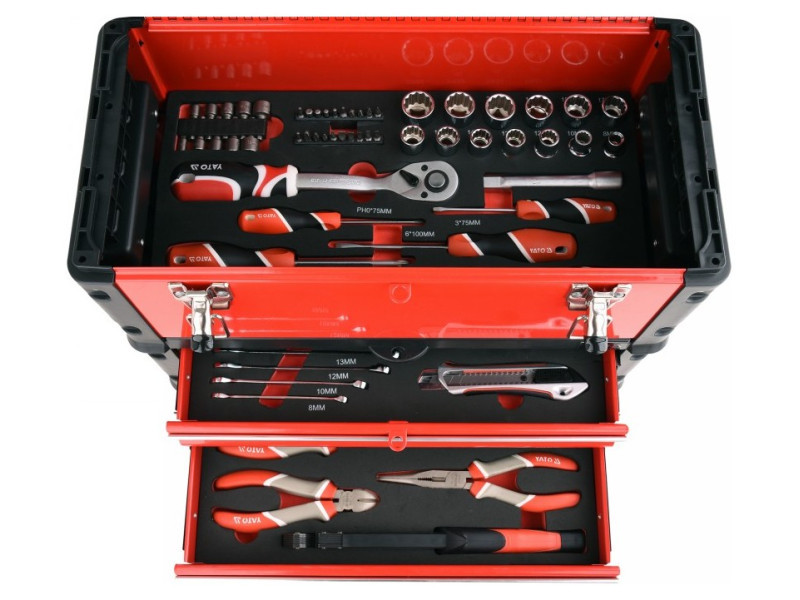

The middle module has 2 drawers. metal ones with a load capacity of 5 kg each and dimensions 390x215x60 mm. The drawers are mounted on metal slides with ball bearings. In addition, each drawer contains a tool insert:

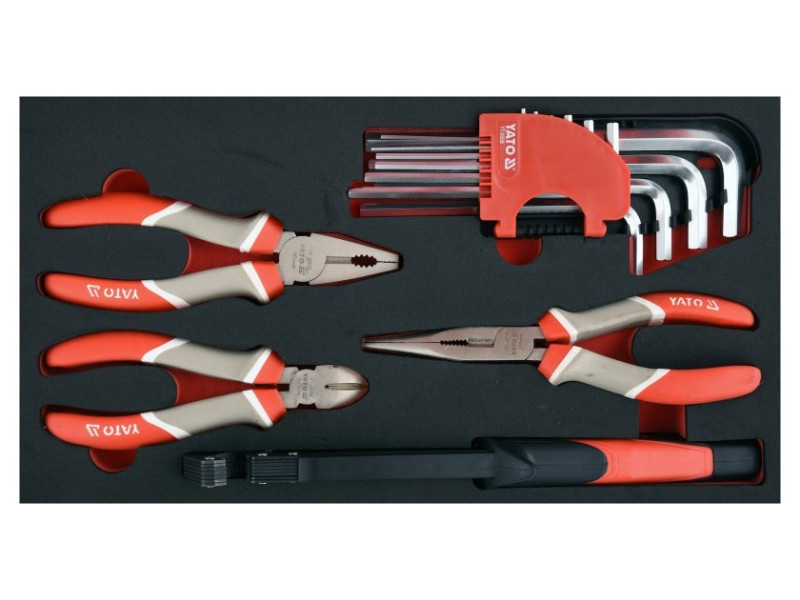

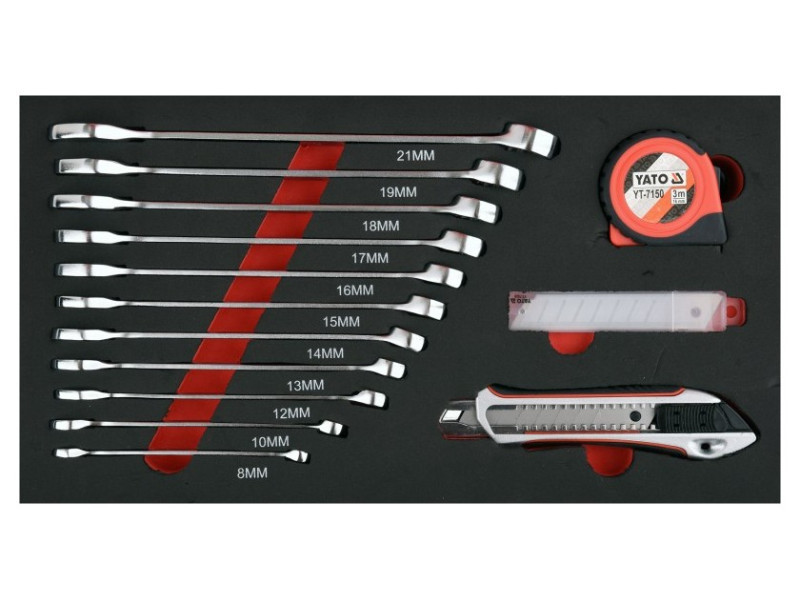

- open-end wrenches 8/ 10/ 12/ 13/ 14/ 15/ 16/ 17/ 18/ 19/ 21mm
- knife with 18mm blade of high quality SK5 material
- set of spare blades for the cutter - 10pcs of SK5 steel
- rolling measure 3m x 16mm
- universal pliers 180mm
- elongated pliers 200mm
.- side cutter 160mm
- universal wrench 300mm long for screws and pipes in sizes 16-38mm
.- set of Allen wrenches 2,0 / 2,5 / 3,0 / 4,0 / 5,0 / 6,0 / 7,0 / 8,0 / 10 / 12 made of CRV6150 steel

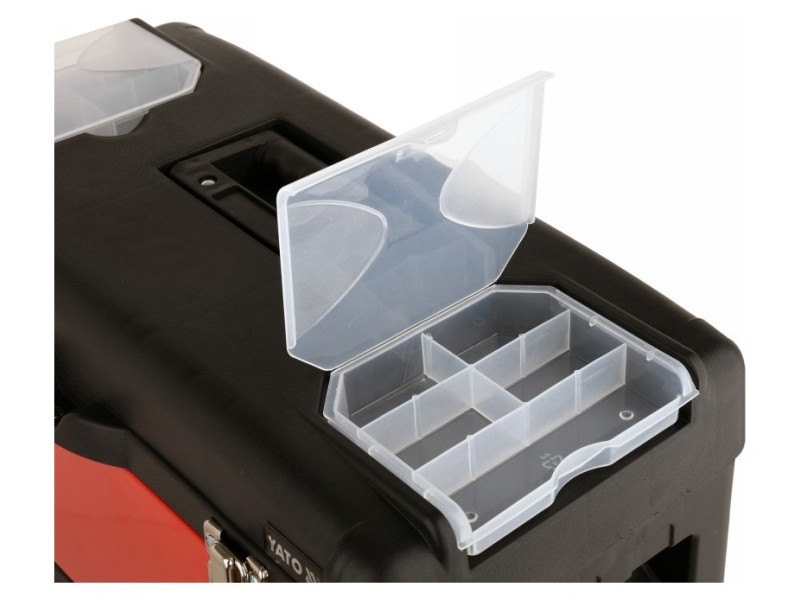

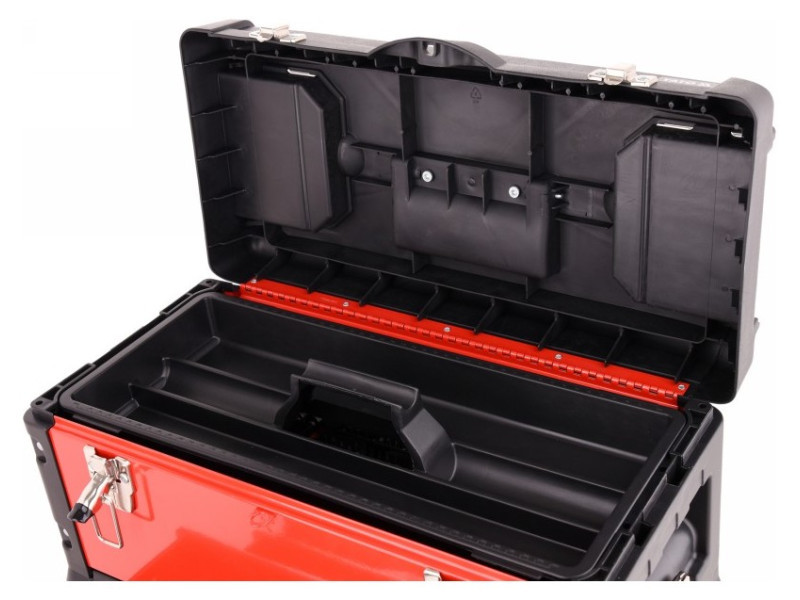

Górny module is a classic toolbox with dimensions 420x220x150 mm and load capacity of 20 kg. It has built-in 2 pull-out organizers and a tool tray. In addition, inside the box there is an insert with tools:

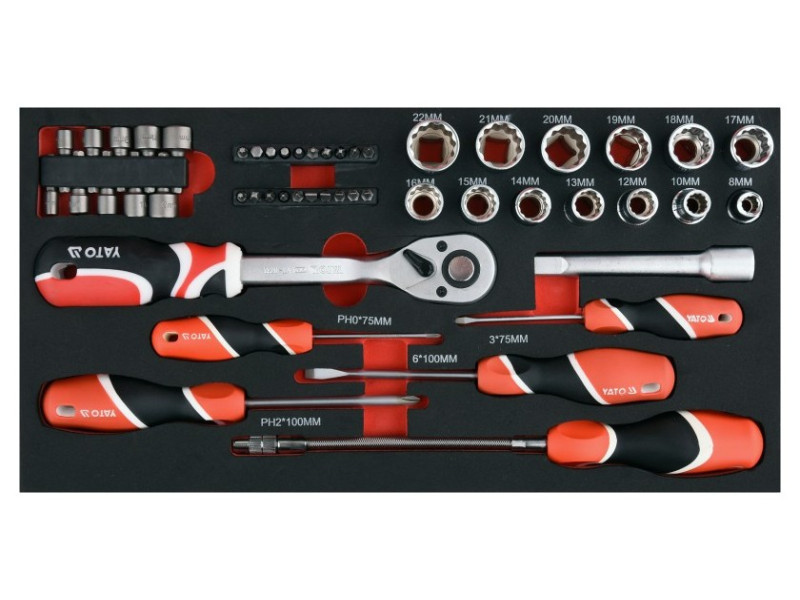

- 1/2" (12.7mm) 12-angle sockets in sizes: 8, 10, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22 mm made of high quality steel CrV 50BV30./li>
- extension 1/2" (12.7mm) 127mm long made of CrV 50BV30
- .1/2" (12.7mm) ratchet wrench with 72 teeth with a length of 255mm made of CRV6140 steel
- 3x75m, 6x100mm, PH0x75, PH2x100mm flathead screwdrivers in S2 steel
- 215mm long flexible wrench with 1/4" attachment for bitsów
- 25mm long 1/4" bits in S2 steel: flat 3.0 / 3.5 / 4.0 / 5.5 / 6.5mm / PH0, PH1, PH2, PH3, PZ0, PZ1, PZ2, PZ3, / T10, T15 / HEX 2.0 /3.0 / 4.0 / 5.0 / 6.0MM/
- .SOCKETS 5,0 / 6,0 / 7,0 / 8,0 2SZT / 9,0 / 10,0 / 11,0 / 12,0 / 13,0
The modules have a flat top thatóry can serve asworking top. In addition, they have a groove that is very useful for drilling or screwóing. Besides, the modules have a comfortable anti-skid handle, side handles for easy lifting and anti-skid corners at the bottom.
It is possible to expand the 3-module set to a 4-module set by adding a center module YT-09107 or YT-09108.
The gór and middle modules havemetal fasteners for joining into sets, and the aluminum ring additionally has a locking device to secure the modules. YATO tool trays with ready-made tool sets can be inserted into the drawers.
Usage warnings:
Warning! Always use personal safety equipment at work.
