| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRD |
| Lifting capacity | 22.5 kg |
| Operation angle | 45, 90, 135 ˚ |
| Dimensions | 102x155x17 mm |
| Hole diameter | 28 mm |
| Material | steel sheet, ferrite magnet |
| Surface finish | surfaced |
| Magnet | yes |
| Switch | no |
| Application | temporary joining of metal elements during welding, drilling, painting, activities requiring the use of both hands, |
| Application contd | pre-setting of magnetic workpieces, e.g. sheet metal, angle iron, flat bars, etc., prior to permanent bonding |
| Symbol | YT-0864 |

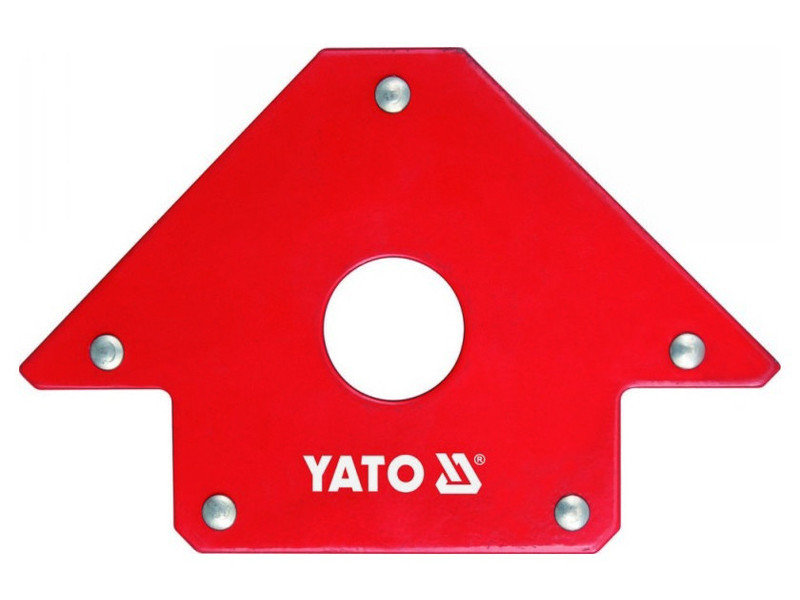

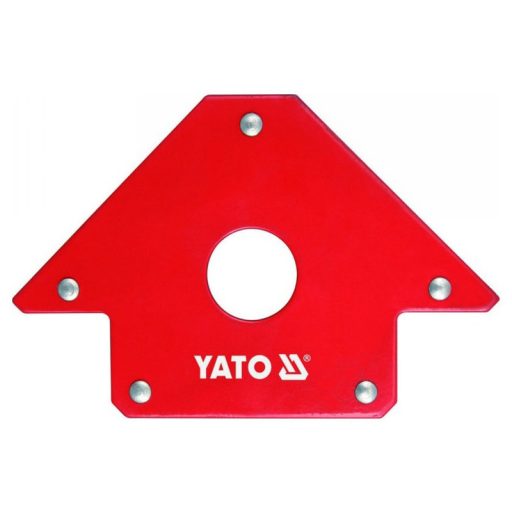

Welding magnetic angle iron 102 x 155 x 17 mm
Magnetic bevel made of steel sheet and strong ferrite magnets.
It allows precise joining of materials at the following angles: 45°, 90° i 135°.
Magnet's load capacity is approx. 22.5 kg.
The holder has a hole for mounting cylindrical elements, e.g. tubes and rods, with a diameter of up to 28 mm. The surface of the magnet housing is powder coated.
Application:
Designed for temporary joining of metal parts during welding, drilling, painting, activities requiring the use of both hands. The use of the magnetic bevel allows free operation with both hands and pre-assembly of the metal elements to be joined without the help of an additional person.

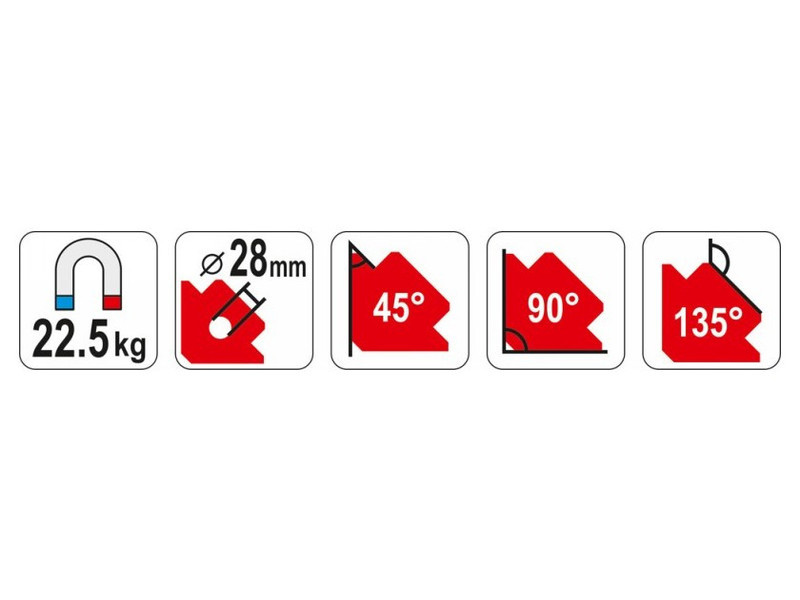

Parameters:
- inner hole [mm]: 28
- size [mm]: 102x155x17
- angle values [st.]: 45°, 90°, 135°
- load capacity [kg]: 22,5, 22,5
Usage warnings:
Warning! Always use personal safety equipment at work.
