| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRE |
| Type | COB LED, SMD LED |
| Luminous flux | 1000 (full light mode), 120 (top spotlight), 600 (side panel 1, high mode), 300 (side panel 1, low mode), 600 (side panel 2, high mode), 300 (side panel 2, low mode) lm |
| Light source | 1+1 LED |
| Color temperature | 6500 (COB LED), 6000 (SMD LED) K |
| Lighting modes | 6: full light mode, overhead spotlight, side panel 1: high mode, low mode, side panel 2: high mode, low mode |
| Material | plastic, aluminum |
| Cloche material | P.C |
| Cloche color | transparent |
| Operation angle | 55-125 ˚ |
| Magnet | yes, on the side |
| Hook | yes |
| Fold | yes |
| Battery type | Li-Ion |
| Battery capacity | 5200 mAh |
| Battery voltage | 3.7 V d.c. |
| Charger type | USB Type-C |
| Charger included | yes |
| Working time | 3 (full light mode), 18 (upper spotlight), 5 (side panel 1, high mode), 10 (side panel 1, low mode), 5 (side panel 2, high mode), 10 (side panel 2, low mode) h |
| Charging time | 3.5 h |
| Charge level indicator | yes |
| Wire length | 1 m |
| Mechanical strength | IK07 |
| Electric insulation class | III |
| Protection grade | IP65 |
| Weight | 350 g |
| Symbol | YT-085172 |

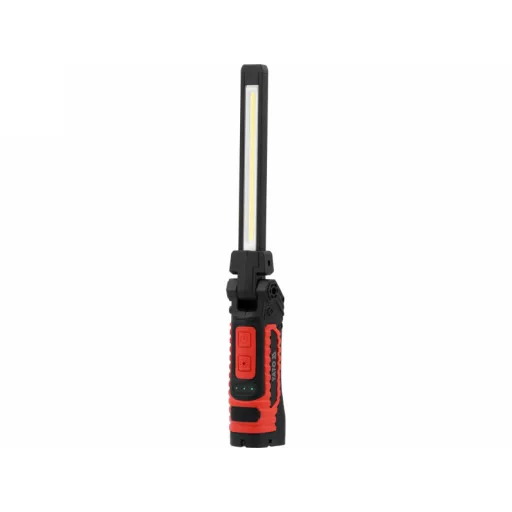

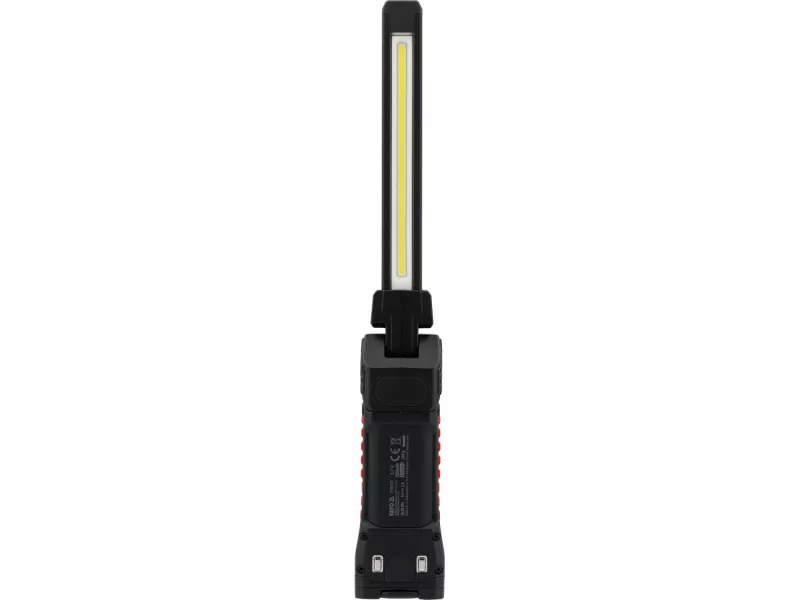

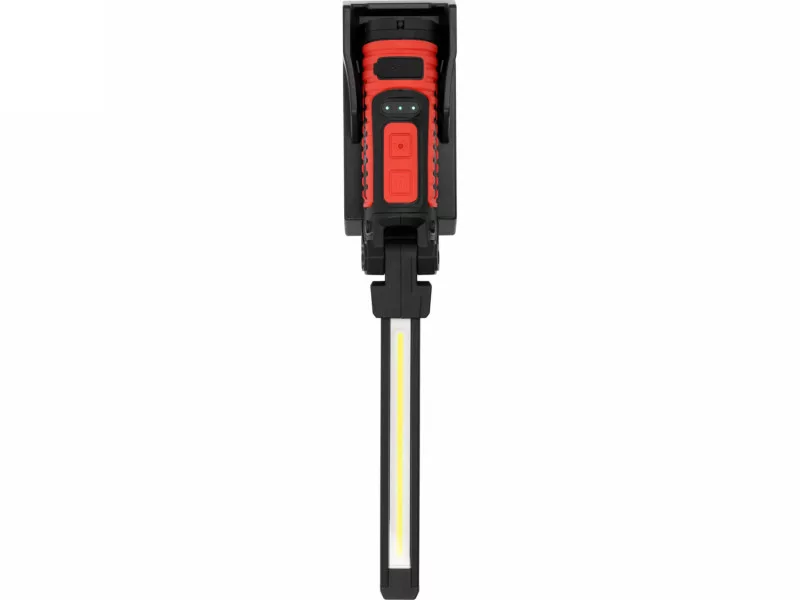

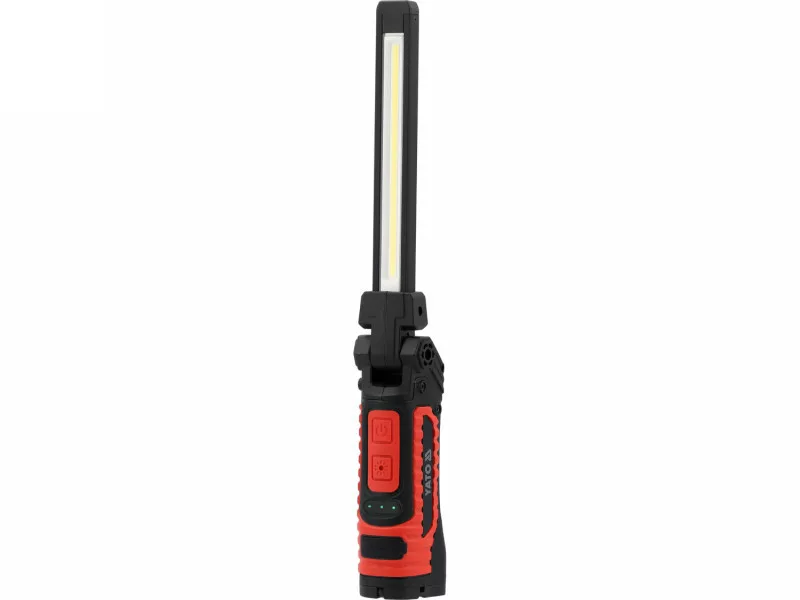

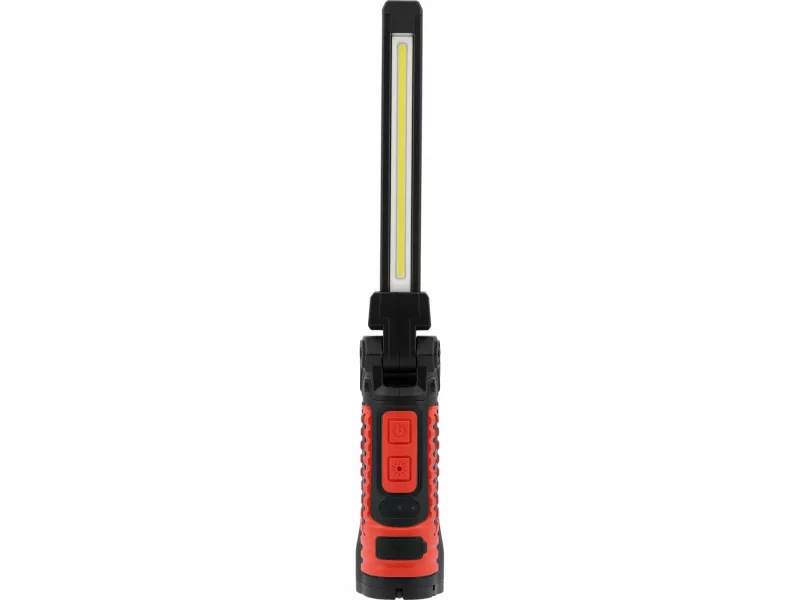

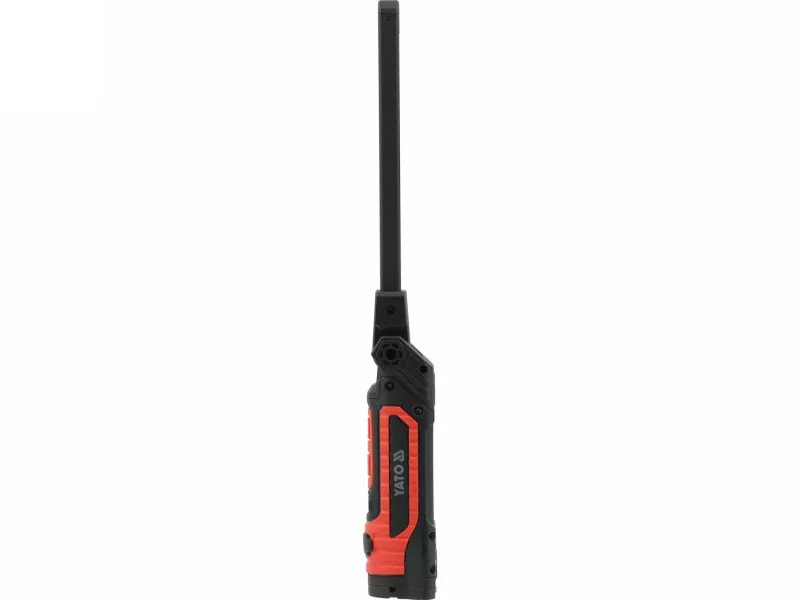

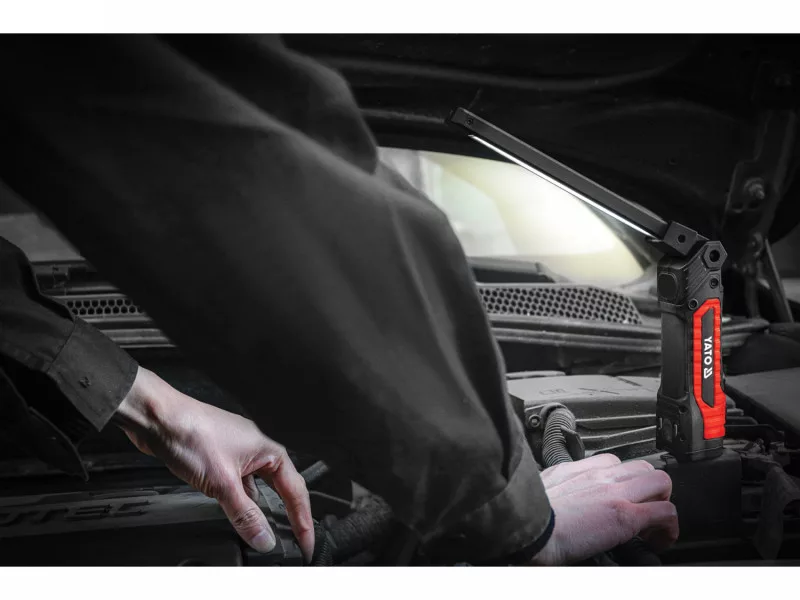

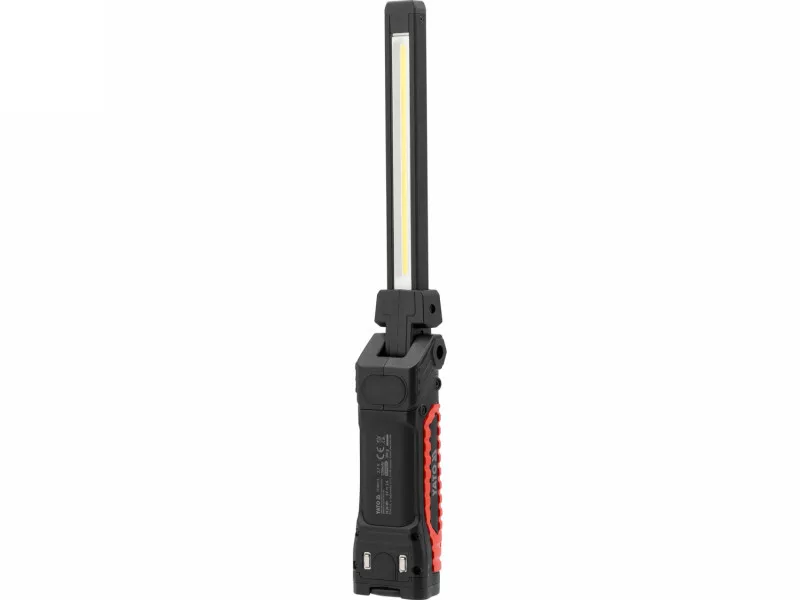

The rechargeable workshop lamp with charging station is a mobile inspection lighting designed for work in close proximity to the detail. The narrow, elongated design allows the lamp to be inserted between structural elements, and the adjustable joint 55° + 125° allows to precisely set the direction of light without changing the position of the entire device. This solution facilitates the inspection of surfaces, joints, and mounting elements with limited access.

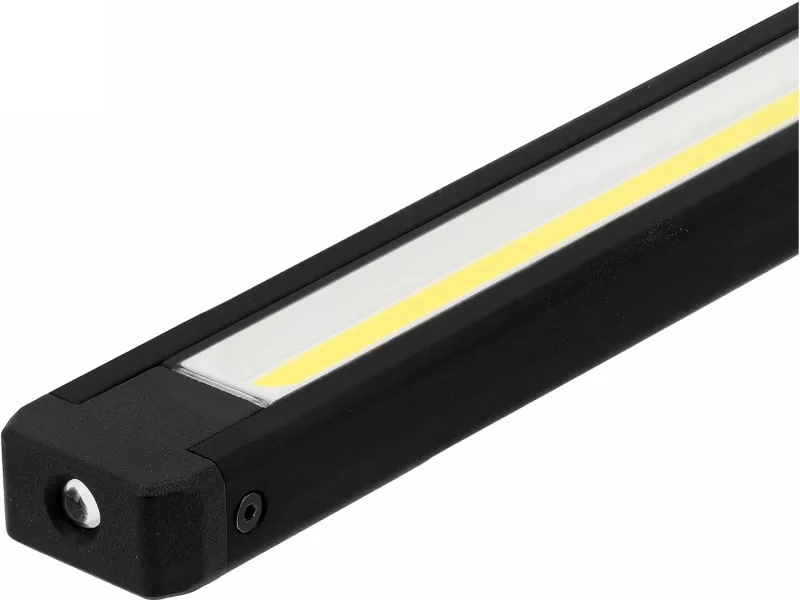

The arrangement of three lighting zones provides a different beam character depending on the stage of work. The upper spot reflector supports the identification of details and markings, while the longitudinal panels provide uniform illumination of the work area during assembly or adjustment. The full power mode allows quick illumination of a larger space, and the economic modes extend the working time during prolonged service activities.
The workshop-adapted housing is equipped with mounting magnets and a rotating hook, allowing the lamp to be stably positioned or suspended without occupying hands. Powered by a Li-Ion battery and the ability to charge via USB-C cable or in a docking station allow to maintain readiness for work throughout the workday, with LED indicators informing about the energy level and charging process.
Light source:
- high-quality COB LED light color 6500 K
- high-quality SMD LED light color 6000 K
- modes and working time:
- button 1:
- upper spot light: 120 lm – up to 18 h
- side panel 1: low mode 300 lm – up to 10 h, high mode 600 lm – up to 5 h
- side panel 2: low mode 300 lm – up to 10 h, high mode 600 lm – up to 5 h
- button 2:
- full lighting mode: 1000 lm – up to 3 h
Power source:
- Li-Ion 3.7 V, 5200 mAh battery
- working time: 3-18 h
- charging time: 3.5 h
Construction and features:

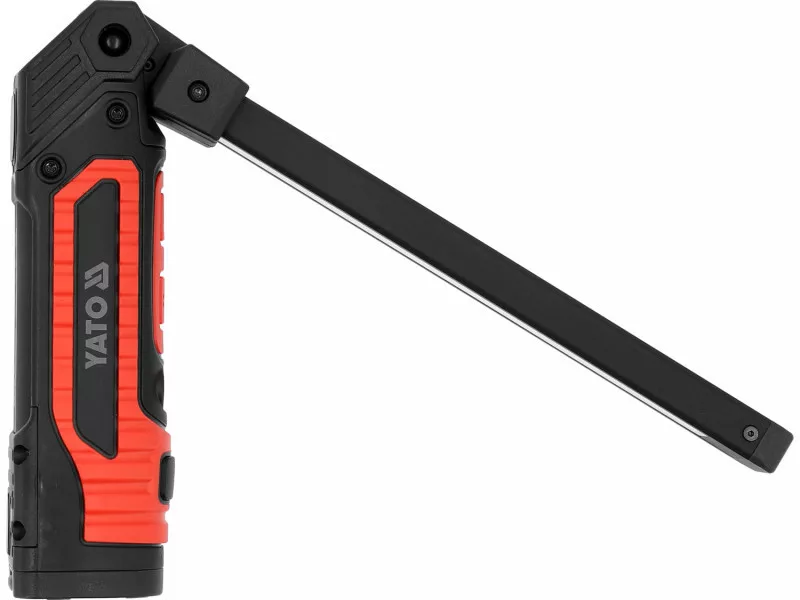

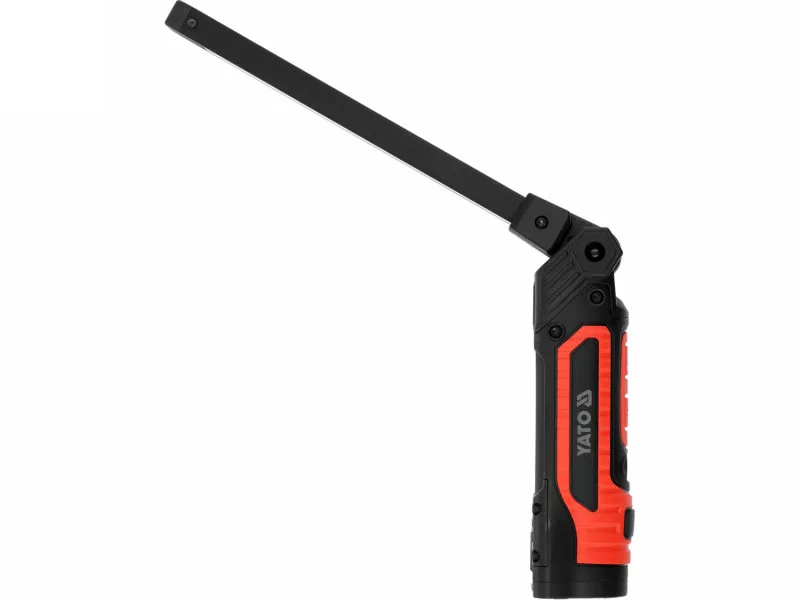

- angle adjustment: 55° + 125°
- folding hook rotating 360° with the ability to hang
- protection class: IP65
- mechanical strength: IK07
- light color: cool white 6000-6500 K
- working temperature: from −10°C to +40°C
- solid housing made of durable plastic
- built-in magnets in the base and on the side for mounting on metal elements
- LED indicator of energy level and charging process: flashing green – charging, steady green – fully charged
- low energy level warning
- 1 m USB-C cable and 5 V, 2 A charger included
- weight: 350 g
- dimensions: 343 x 51.5 x 42.5 mm
IP65 - protection against dust and water jets from any direction (12.5 l/min).
IK07 - resistance to impacts of energy 2 J (fall of 0.5 kg from a height of 40 cm).
Usage warnings:
Warning. Eye hazard. Do not aim a beam to the eyes! It may cause a serious sight problems.
