| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRF |
| Max. extraction pressure | 0.8 MPa |
| Recommended extraction pressure | 0.7 MPa |
| Max. tank-emptying pressure | 0.18 MPa |
| Required air flow | 150 l/min |
| Produced vacuum | -1 ÷ 0 MPa |
| Tank capacity | 70 l |
| Bowl capacity | 5 l |
| Main tank capacity | 65 l |
| Height | 135 cm |
| Air connection diameter (PT) | standard |
| Wheels | yes |
| Wheel quantity | 4 |
| Liquid temperature | 40~60 ˚C |
| Acoustic pressure | 101.2 ± 3.0 dB(A) |
| Acoustic power | 119.8 ± 3.0 dB(A) |
| Weight | 17.5 kg |
| Set includes | pneumatic sink and suction machine, suction probe x6 (flexible probe x4; metal probe x2) |
| Symbol | YT-07191 |

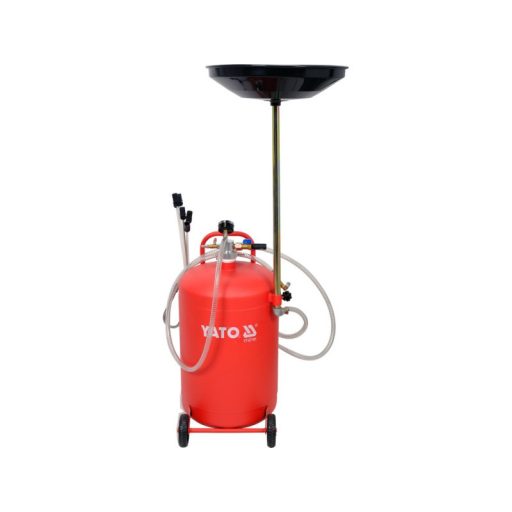

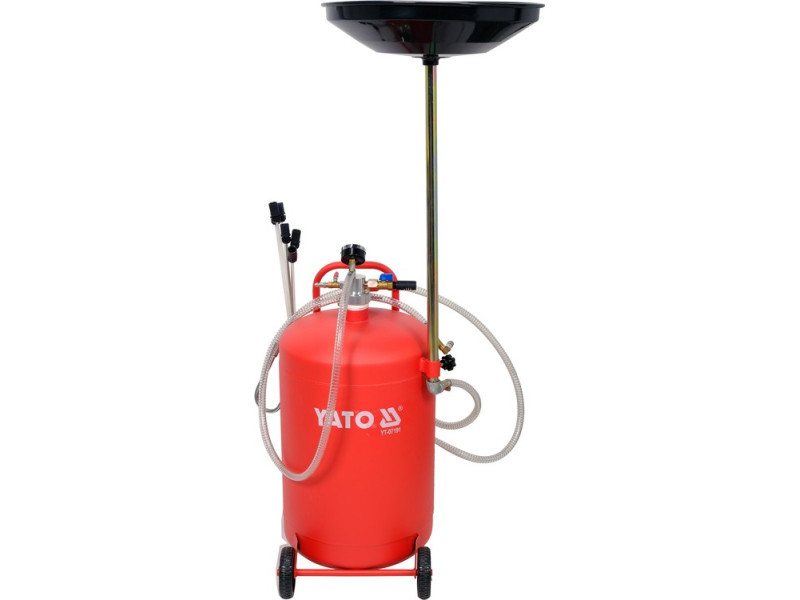

Professional beaker-sucking machine allows you to quickly drain oil from car enginesós and gearboxesós. Used for sinking and sucking oil and operating fluids from carsós, motorcycles and agricultural machinery.

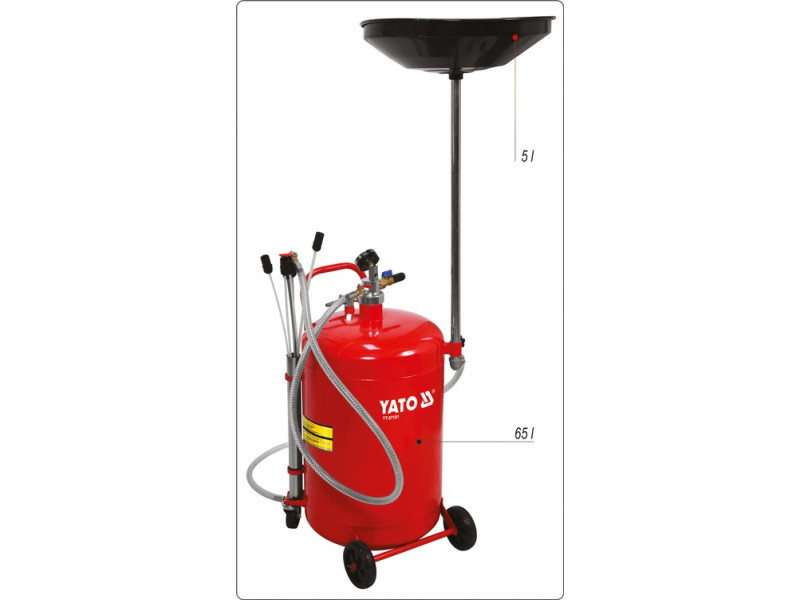

- Tank capacity of 65 l
- Wide 5 l funnel
- Detailed suction of lingering oil from linesós and pipes
- Working pressure: 8 bar
- suction pressure: 0.7-0.8 MPa
- suction pressure: 0.18 MPa
- equipped with 4 có³, including 2 swivel castors for easy movement of the device
- height: 135 cm

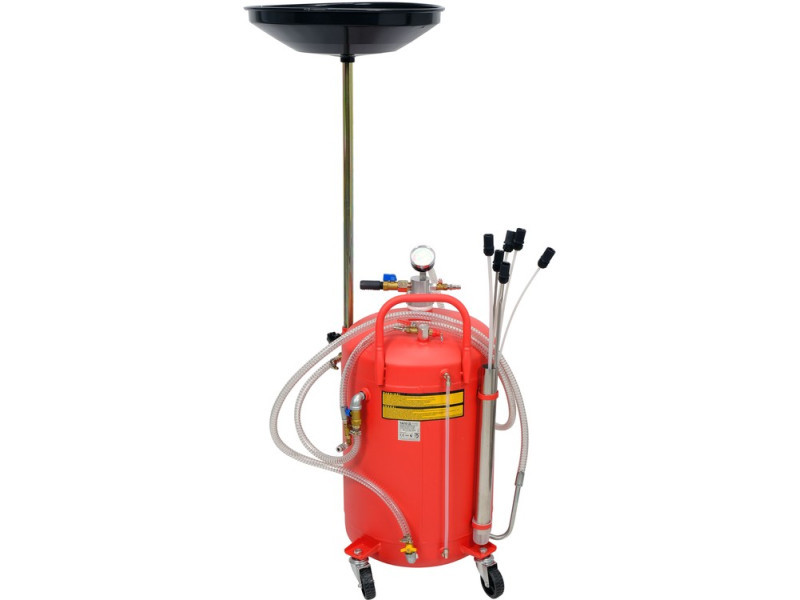

- storage holder for suction probes helps keep your work area neat and clean
- included 6 suction probes – 4 flexible and 2 metal – fit most carów models
Usage warnings:
Warning 1. Read the operating instructions and labels before starting work. 2. Attention! Exhaust gas is toxic. Do not operate the generator indoors without adequate ventilation. 3. Keep children away from the generator. 4. Do not refill fuel and oil while the generator is running. 5. If the generator will be placed in a closed room, measures must be taken to prevent fire and explosion. 6. Do not connect the generator to the home electrical network. 7. Do not use the generator in high humidity conditions. 8. Keep flammable products away from the generator. 9. When refueling: - stop the engine, - do not smoke, - do not spill fuel.
1. Always wear safety goggles during setup and usage of the product. 2. Before use, read and understand to all warnings and safety precautions in the user manual. 3. Check any leakage of pipes and adapters. 4. Before connect to the air supply make sure all valves and switches are in the "OFF" position. 5. Do not exceed 0,8 MPa / 0,18 MPa maximum air pressure of extraction / tank ejection. 6. The temperature for engine oil should be between 40℃ and 60℃ before extraction. 7. Do not use this machine for uses which are not indicated in the manual. 8. Follow local regulations for proper disposal of used oil. Used engine oil should be properly disposed or recycled. Contact your local waste authority for information on recycling. Never reuse an old engine oil.
