| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRF |
| Max. extraction pressure | 0.8 MPa |
| Recommended extraction pressure | 0.7 MPa |
| Max. tank-emptying pressure | 0.18 MPa |
| Required air flow | 150 l/min |
| Produced vacuum | -1 ÷ 0 MPa |
| Tank capacity | 90 l |
| Bowl capacity | 10 l |
| Main tank capacity | 70 l |
| Inspection tank capacity | 10 l |
| Bowl diameter | 410 mm |
| Height | 150 cm |
| Air supply hose inside diameter | 3/8" (9.5 mm) |
| Air connection diameter (PT) | standard |
| Wheels | yes |
| Wheel quantity | 4 |
| Liquid temperature | 40~60 ˚C |
| Acoustic pressure | 101.2 ± 3.0 dB(A) |
| Acoustic power | 119.8 ± 3.0 dB(A) |
| Weight | 20 kg |
| Set includes | pneumatic sink and suction machine, suction probe x6 (flexible probe x4: 5x780 mm, 6x780 mm, 6x780 mm, 8x780 mm; metal probe x2: 6x730 mm, 8x730 mm) |
| Symbol | YT-07190 |

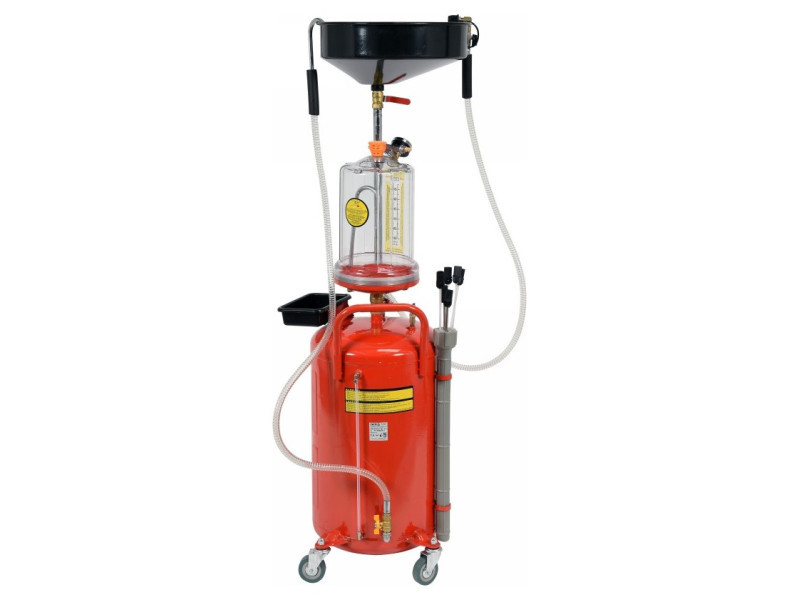

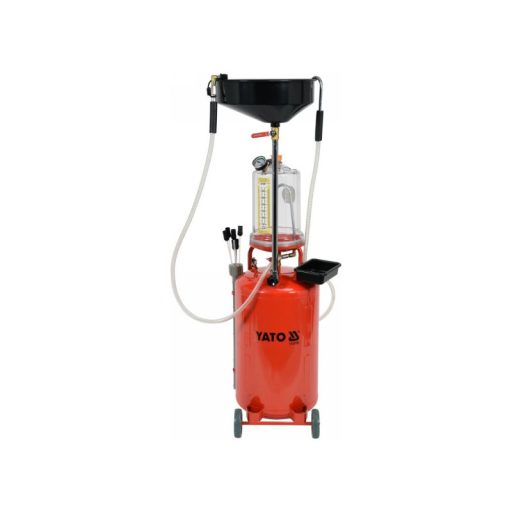

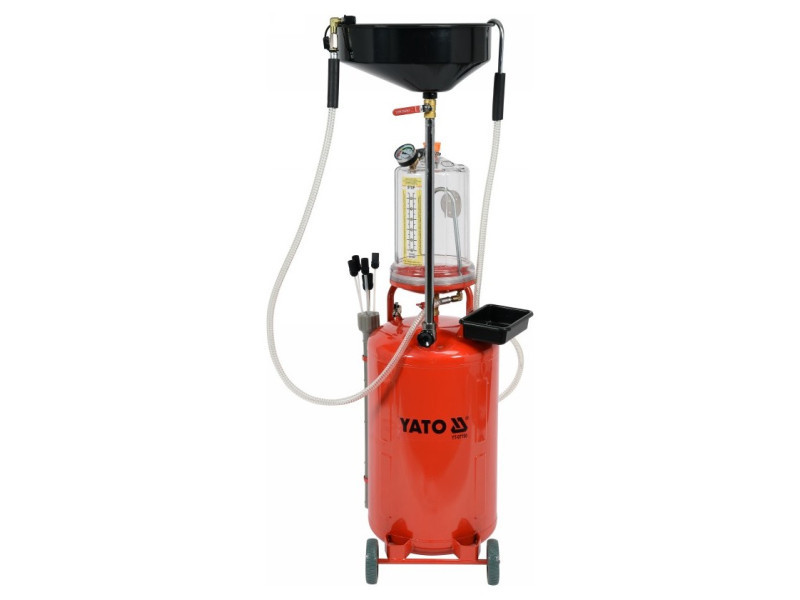

Pneumatic beaker-sucking machine
Professional beaker-sucking machine with control tank allows for fast oil drainingós of automobile enginesós and gearboxesós. Used for draining and sucking oil and operating fluids from carsós, motorcycles and agricultural machinery.

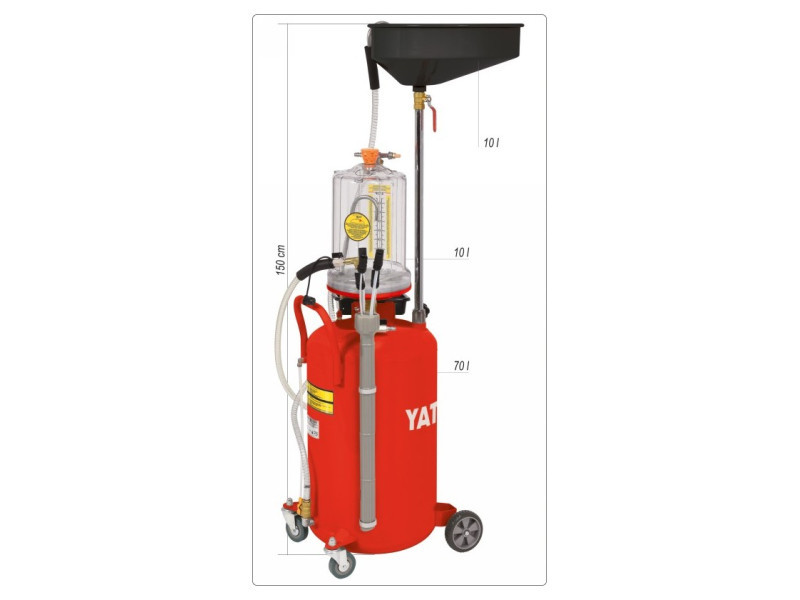

- tank with a capacity of 70 l

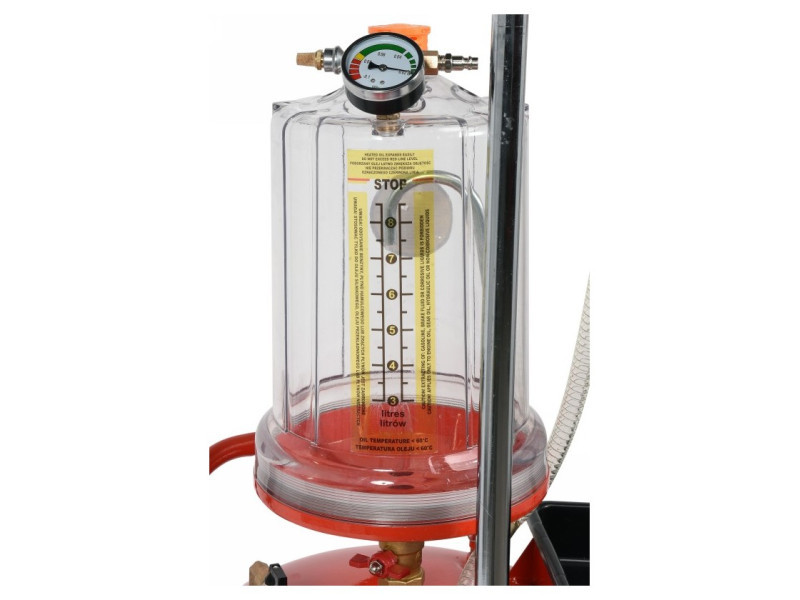

- control tank with a capacity of 10 l
- wide funnel with a capacity of 10 l
- detailed suction of lingering oil from hoses
- working pressure: 8 bar
- suction pressure: 0.7-0.8 MPa
- pumping pressure: 0.18 MPa
- air consumption: 90 l/min
- equipped with 4 casters, including 2 swivel casters, for easy movement of the unit
- height: 150 cm
- storage holder for suction probes helps keep your work area neat and clean
- set of 6 suction probes – 4 flexible and 2 metal – fitting most models of carsów
