| Brand | Vorel |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRF |
| Measuring range | -50 ~ +380 ˚C |
| Operating relative humidity Rh | 10-90 (without condensation) % |
| Measurement accuracy | ±1.5˚C for T >0˚C, ±3˚C for T ≤0˚C |
| Optical resolution | 12:1 D:S |
| Measurement repeatability | 1% reading / 1˚C |
| Spectral response | 5-14 µm |
| Response time | 500 ms |
| Power supply | battery |
| cell type | 2x1.5V; AAA |
| Dimensions | 84x43x144 mm |
| Laser | yes |
| Laser class | 2 |
| Laser power | ˂1 mW |
| Laser wave length | 655 nm |
| Laser pointer colour | red |

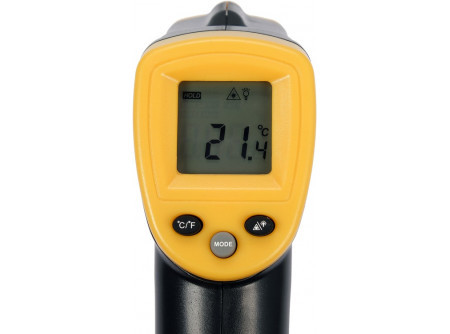

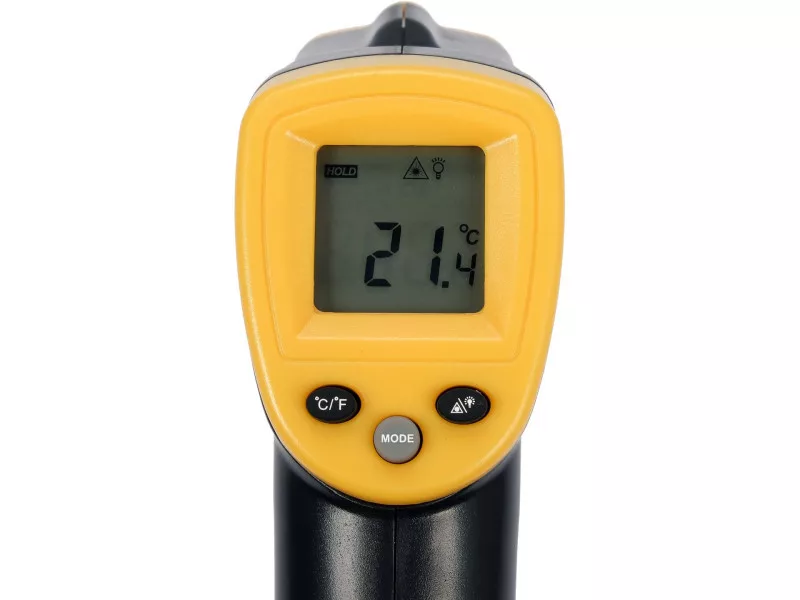

| Display type | backlit LCD |
| Reading resolution | ±0.1 ˚C |
| Auto power off | 20 s |
| Low battery indicator | yes |
| Emissivity index | 0.95 / 0.8 |
| Working temperature range | 0~40 ˚C |
| Storage temperature | -10 ~ +60 ˚C |
| Weight | 0.108 kg |
| Application | electric |
| Symbol | 84400 |

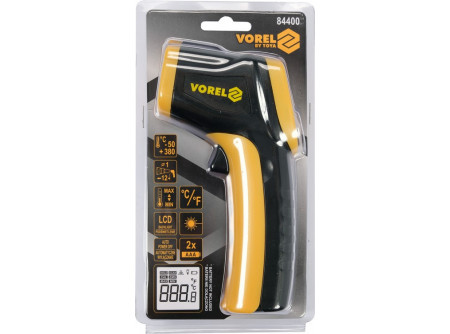

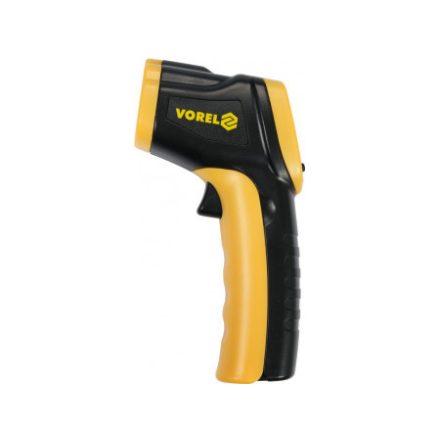

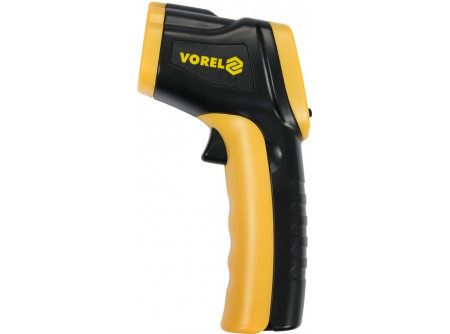

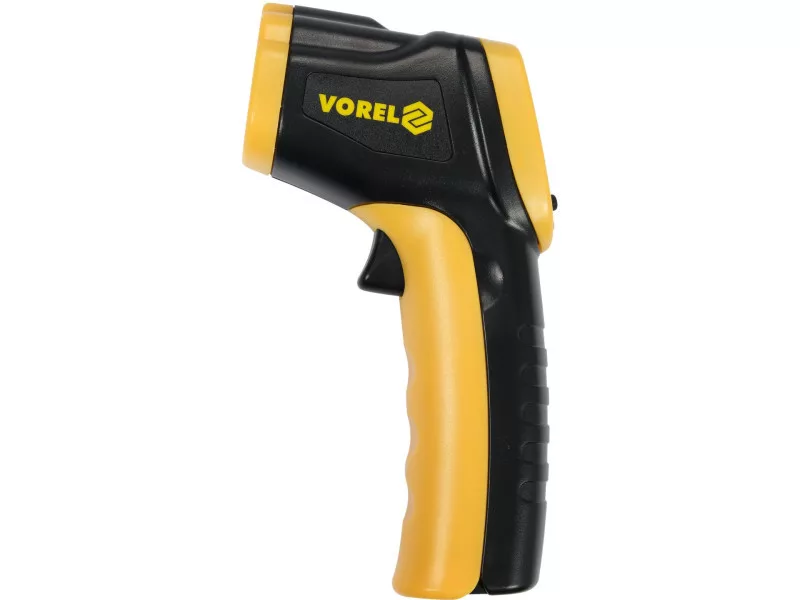

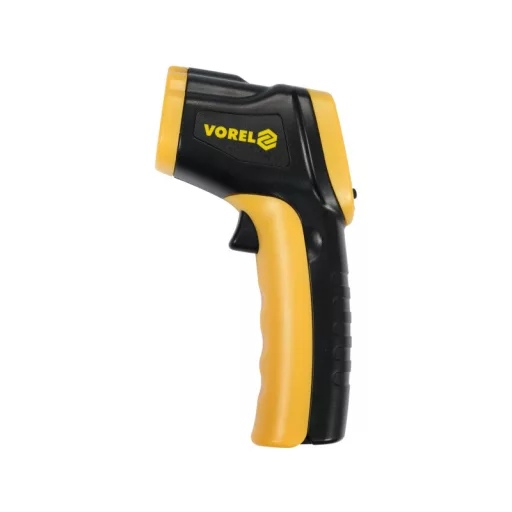

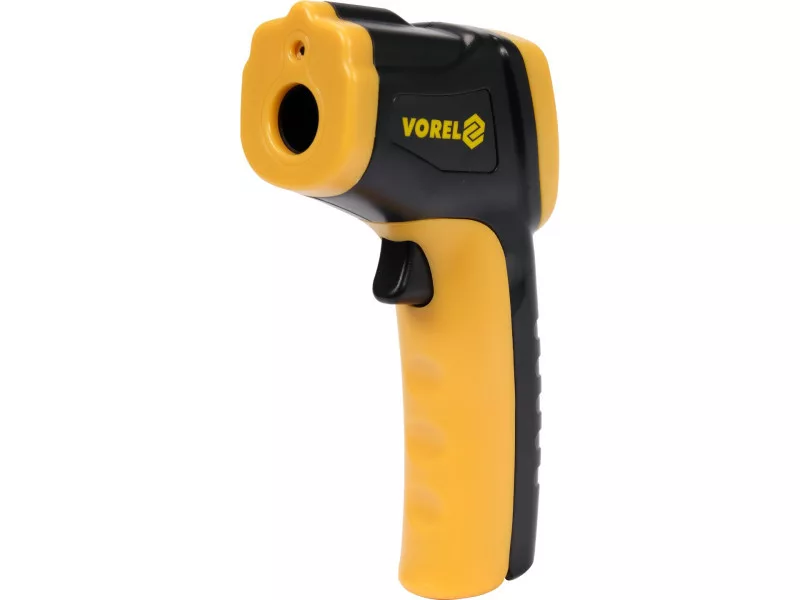

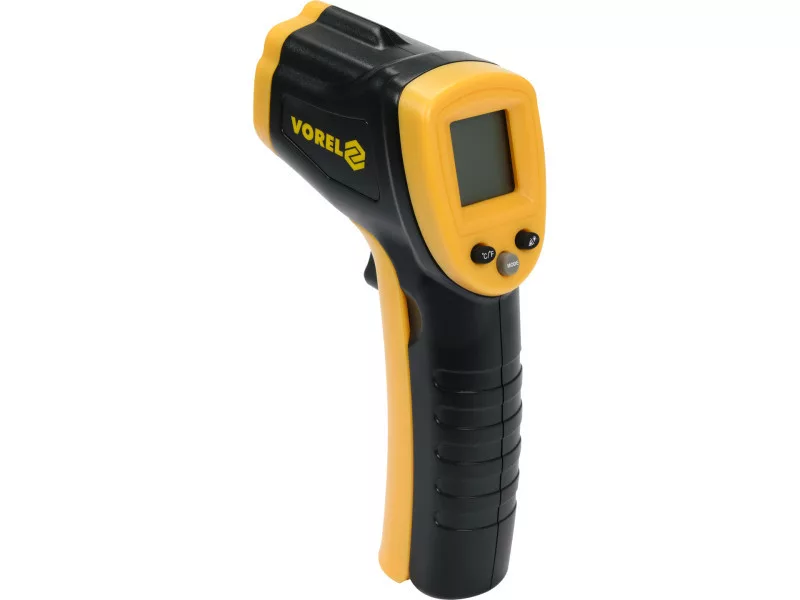

VOREL brand non-contact infrared thermometer numbered 84400 with backlit LCD display, laser aiming device, and features for easy operation including max/min and calibration function. It will find its use in many industries, including construction, automotive, food service, as well as household.
TEMPERATURE MEASUREMENT
- Temperature measurement range: -50°C~+380°C
- measurement accuracy: ± 1.5˚C for T > 0˚C
- measurement resolution: 0.1°C - temperature indication with one decimal digit, e.g. 236.6°C
Other data
- optical resolution: 1:12 - at a distance of 12 cm from the device, the surface temperature will be measured from a 1 cm diameter circular field
- emissivity: 0.95 - can be changed to 0.80
- spectral response: 5-14 μm
- measurement speed: 0.5 s
- operation at ambient temperature: 0°C-40°C (14°F-140°F)
FUNCTIONS
- display of maximum and minimum temperature from a given measurement [MAX], [MIN]
- calibration of the device [CAL] - the possibility of fine-tuning the sensor readings in the range of -5.0 to +5°C
- low battery display when the battery level is below 2.5V [battery symbol]
- automatic shutdown of the device after 20 seconds of inactivity
Additional information
- casing material: ABS
- power supply: 2 x 1.5V AAA
- dimensions : 84*43*144 mm
- weight (including batteries): 130 g
Usage warnings:
Caution: laser radiation. Do not stare into the laser beam.
