| Brand | Cynel |
| Entity responsible for this product in the EU | Cynel Unipress Sp. z o.o.More |
| Series | GRD |
| Solder type | for soft soldering |
| Type of binder | leaded |
| Alloy compositionMore | Sn60Pb40 |
| Apperance | soldering wire |
| Flux type | F-SW26 |
| Diameter | 1 mm |
| Flux content | 2.5 % |
| Flux cores number | 3 |
| Melting point | 190 ˚C |
| Weight | 16 g |
| Application | electronics industry |
| Symbol | 76830 |

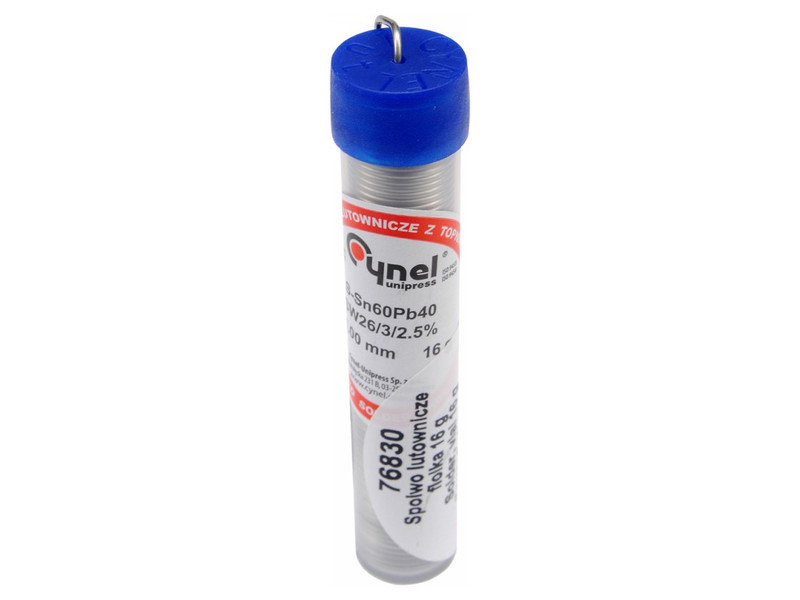

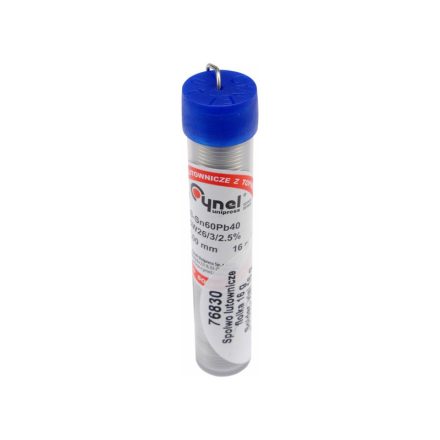

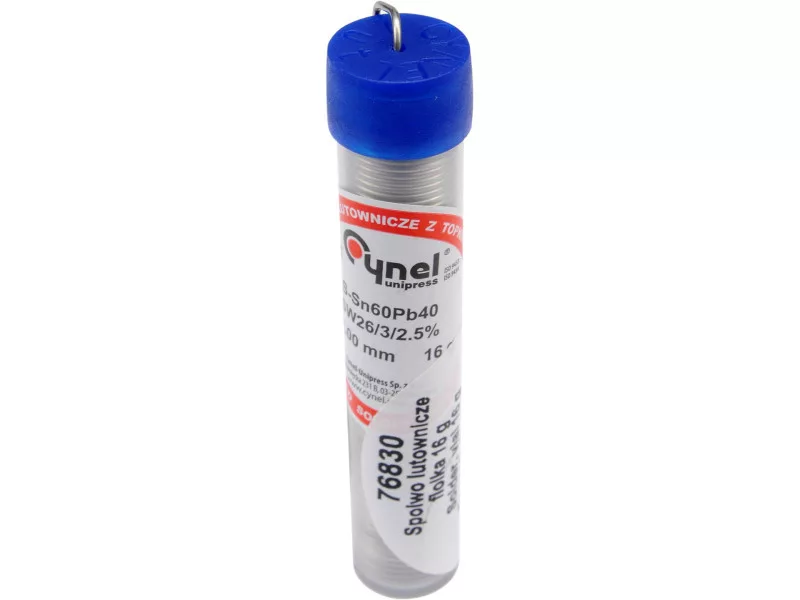

A soldering binder with a flux produced in the first melting of tin and lead in accordance with the PN EN 29453: 2000 standard, in a continuous process of casting without air access, then squeezed, which ensures the elimination of oxides. A binder thickness 0.5 mm and weight 100 g, with tin content in the product within: 59.5% to 60.5%, and melting temperature in the range: 183 ° C to 190 ° C. The SW26 flux is made on the basis of calaphony and an organic halogen activator, which after soldering is "tied" in calaphonia, which means that there is no direct contact with the solder and does not cause corrosion, and also facilitates melting and increases the liquidity of solder. The soldering binder is mainly used in the electronic industry, for the production of standard electronic devices and components, electrical engineering. Placed in a comfortable vial. Characteristics: Diameter fi 1.00mm length approx. 3 meters of tin and lead SN60PB40, multi -core wire with SW26 SW26 SPOOD.
Usage warnings:
May damage the unborn child. May cause harm breast fed children. Causes damage to central nervous system, blood and kidneys through prolonged or repeated exposure by inhalation or ingestion. May cause an allergic skin reaction. Do not breathe dust / fume. If exsposed or concerned: get medical advice / attention. Dispose of contents / container to authorized waste collector. Contains rosin. Contains lead. Restricted to professional users.
