| Brand | Fala |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRF |
| Body length | 400 mm |
| Series | Brick |
| Cover design | paste plate |
| Material | 304 stainless steel |
| Body width | 50 mm |
| Flange width | 20 mm |
| Siphon height | 52 mm |
| Outlet size | 50/40 mm |
| WET&DRY | yes |
| SMARTthru | yes |
| EASYclean | yes |
| GRIPstrong | yes |
| HYDROcloth | yes |
| STRAINer | yes |
| HQwelding | yes |
| EXTRAslim | yes |
| EASYfix | yes |
| Application | bathrooms - shower cabins, swimming pools - swimming pools, laundry rooms, boiler rooms, balconies, terraces |
| Set includes | grate, drainage channel with siphon, sewage reduction, adjustable mounting feet, insulating mat, hook for lifting the grate |
| Symbol | 75351 |

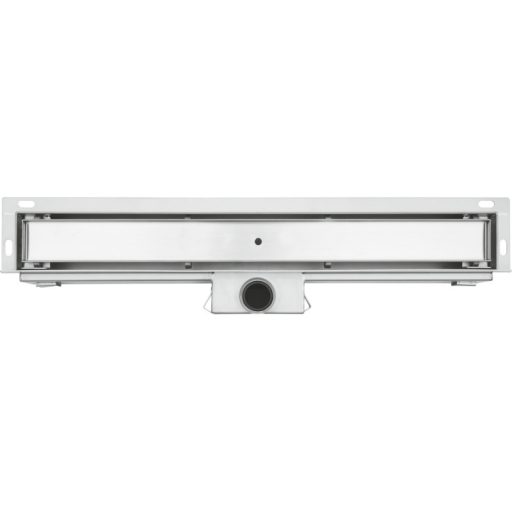

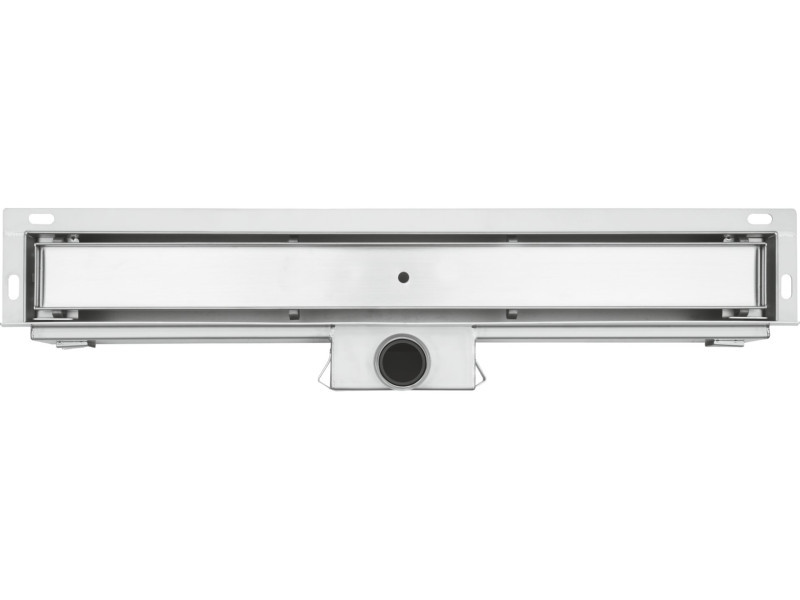

The wall mounted linear drain Wave is an excellent idea for elegant and practical arrangement of bathroom space.
A wide selection of available sizes makes it possible to optimally match its length to the dimensions of the shower enclosure or tiles and allows you to plan your shower space with greater freedom than with traditional shower trays.
It is made wholly of AISI 304 stainless steel, which is characterized by resistance to corrosion, detergents and mechanical damage.
Wave shower drains are equipped with facilities that guarantee comfortable and efficient operation for many years:

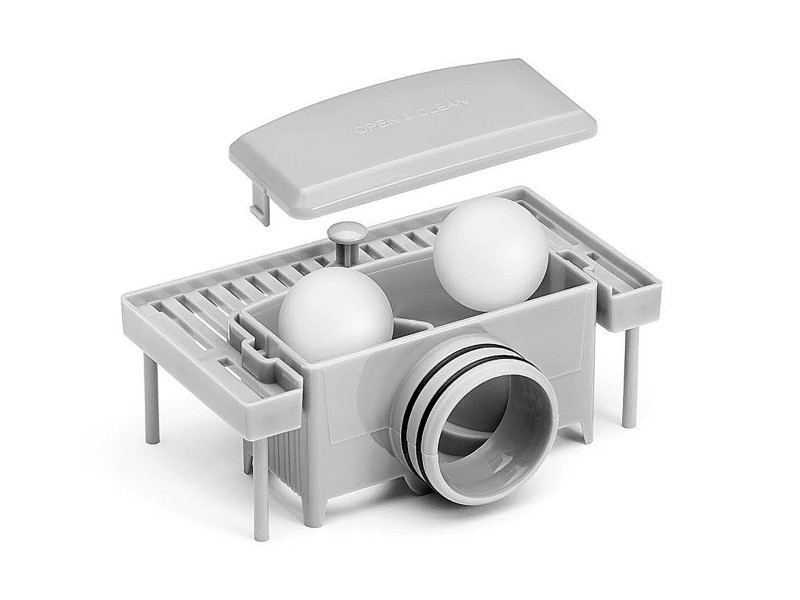

- WET&DRY - a special solution in the trap thatprevents odors and bugs from getting in. during use as well as after drying;
- EASYclean - is easy to clean, thanks to the hook that is included;

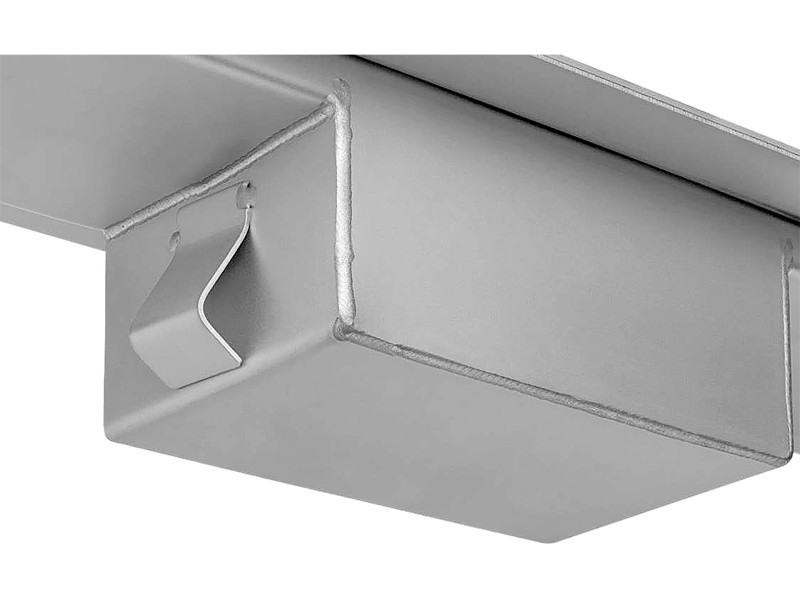

- GRIPstrong - handles to stabilize the body, add extra stiffening of the structure in the floor;
- HYDROcloth - sealing mat is included - an indispensable part when performing waterproofing;
- STRAINer - an effective and durable strainer that prevents clogging of the trap and facilitates the ongoing maintenance of the drain;

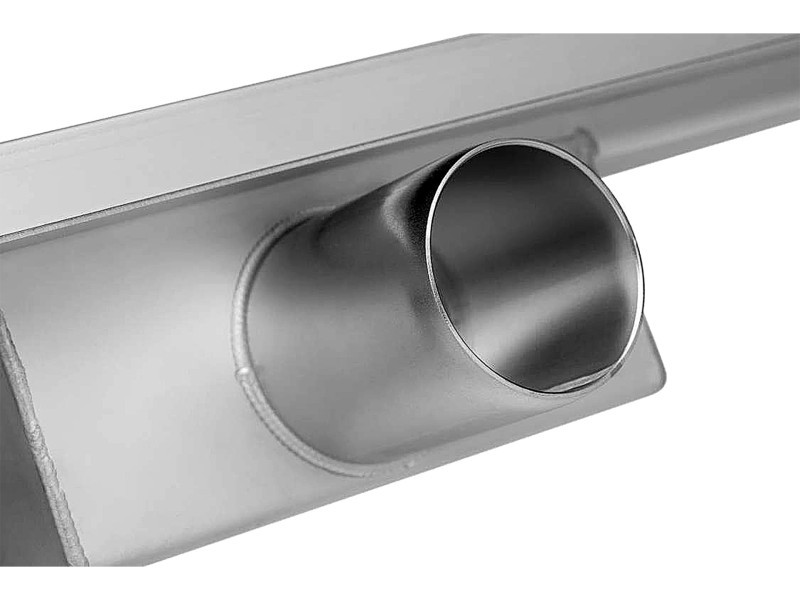

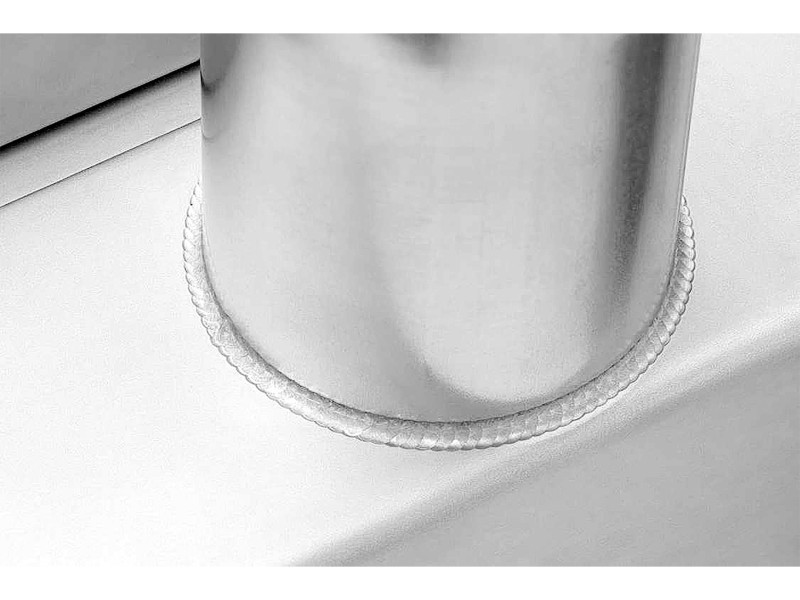

- HQwelding - high quality precision welds that guarantee the tightness of the drain;
.br /> - EXTRAslim - made of AISI 304 stainless steel very low siphon, which makes installation easier;

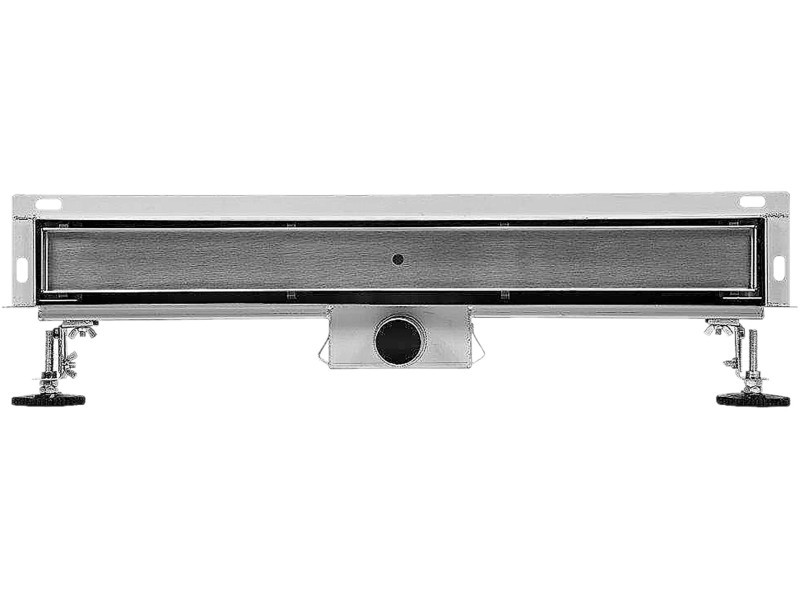

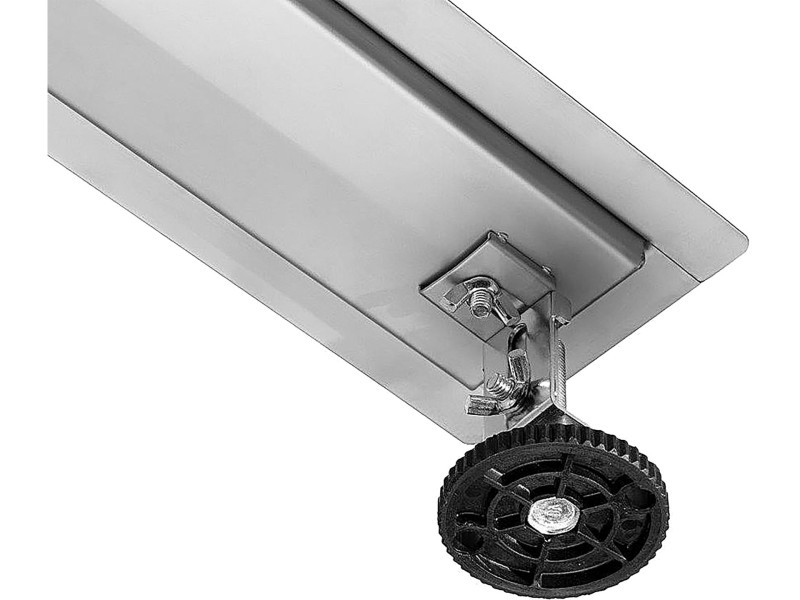

- EASYfix - a wide range of height adjustment that allows you to adjust the drain to the floor surface.
You will install the Wave drain without worry - all our drains have a 10-year warranty!
Thickness of steel of linear drains:
- market: 1.2 mm
- pipe: 1.5 mm
Product complies with EN 1253-1
Load class: K3 (surfaces without circular traffic)
Thermal behavior class of the product: Class A (no installation restrictions)
Flow rate: more than 36 l/min (the shower faucet has a maximum flow rate of 18 l/min)
- bathrooms, shower rooms - swimming pools - swimming pools, swimming pools - laundry rooms, boiler rooms - balconies, terraces - drainage trough with trap - grate - sewer reduction 50/40 mm - adjustable mounting feet - insulation mat - hook for lifting the grate - instruction manual - warranty card
