| Brand | Toya |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRF |
| Power | 70 W |
| Rotations | 1600 min⁻¹ |
| Voltage | 230 V a.c. |
| Frequency | 50 Hz |
| Drilling diameter | 3-10 (58 mm disc), 8-16 (talerz 70 mm) mm |
| Drill bit point angle | 118 ˚ |
| Grinding disc diameter | 58, 70 mm |
| Electric insulation class | II |
| Protection grade | IP20 |
| Acoustic pressure | 61.0 ± 3.0 dB(A) |
| Acoustic power | 74.0 ± 3.0 dB(A) |
| Weight | 1.8 kg |
| Set includes | sharpener, sanding disc x2, working head x2 |
| Symbol | 73470 |

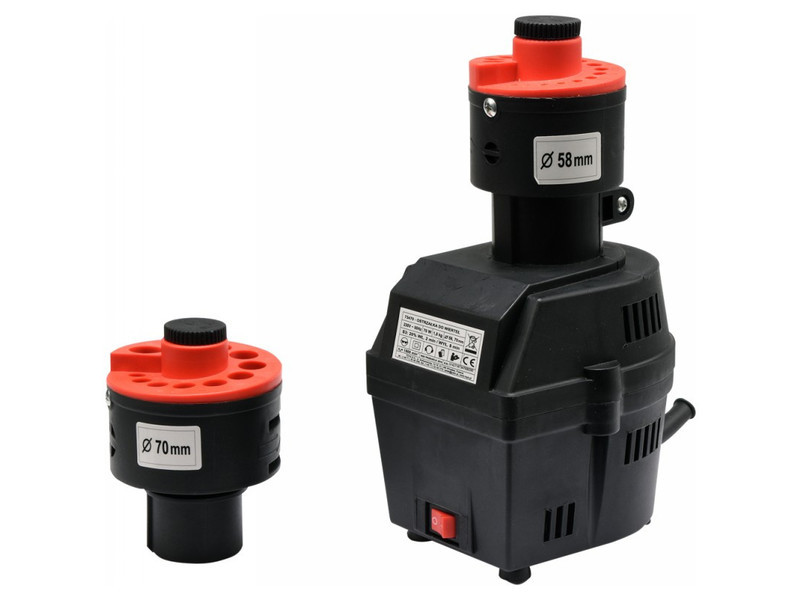

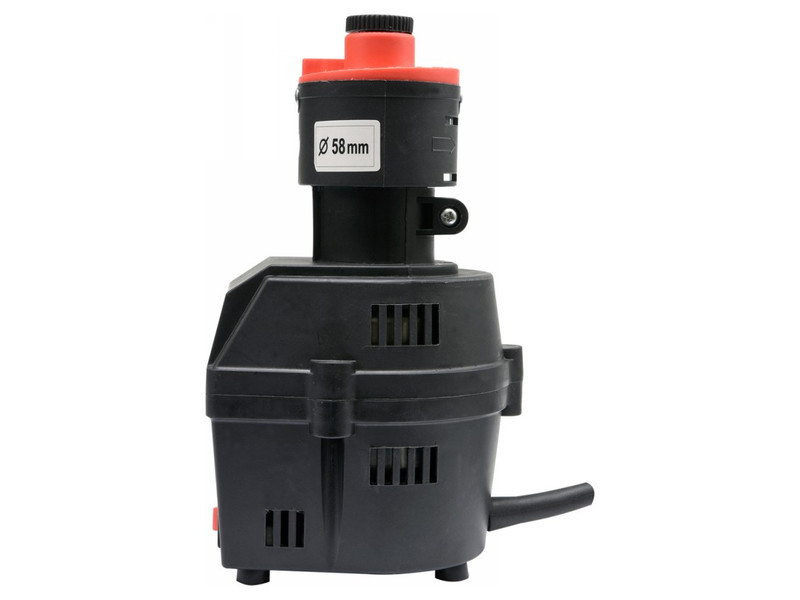

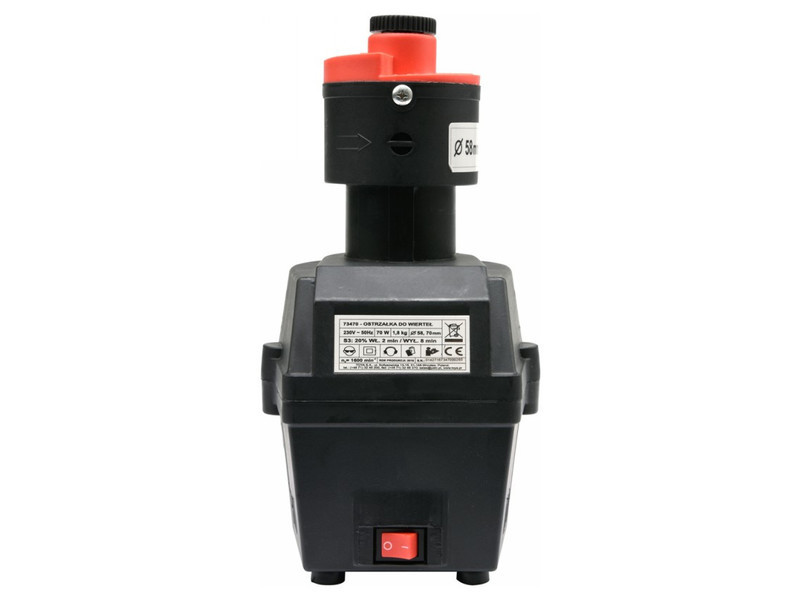

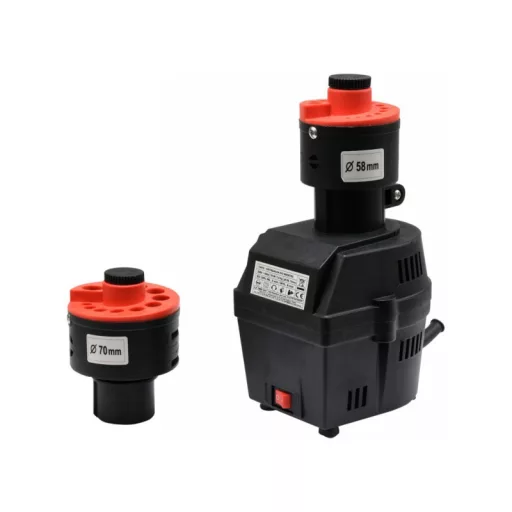

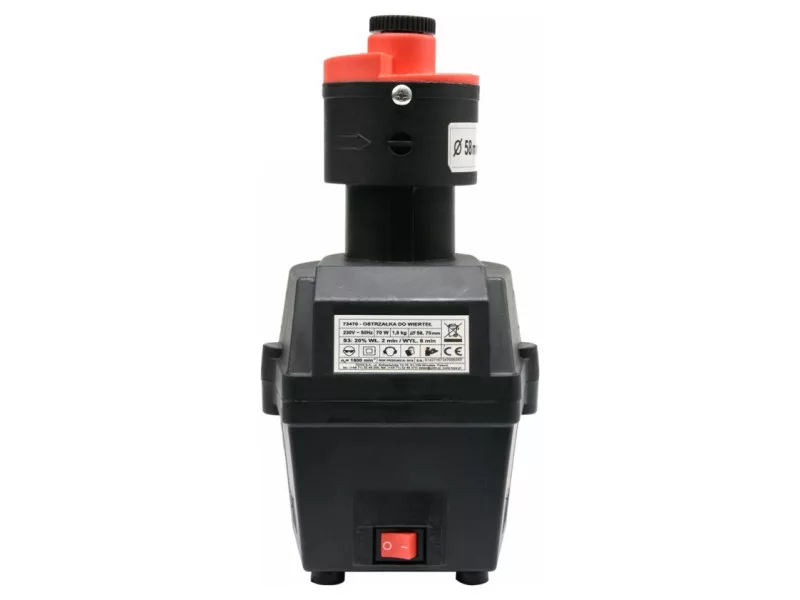

Drill sharpener 3-16mm 70W, 2 attachments and discs
Drill sharpener made of steel. The sharpener is equipped with two working heads allowing to sharpen a wide range of drill diameters. The device is designed for intermittent operation.
- Diameter of grinding pad: 58 mm; 70 mm
- Drill tip angle: 118 degrees
Diameter of drill bit:
- 3 mm - 10 mm (58 mm plate)
- 8 mm - 16 mm (70 mm plate)
Purpose/Application

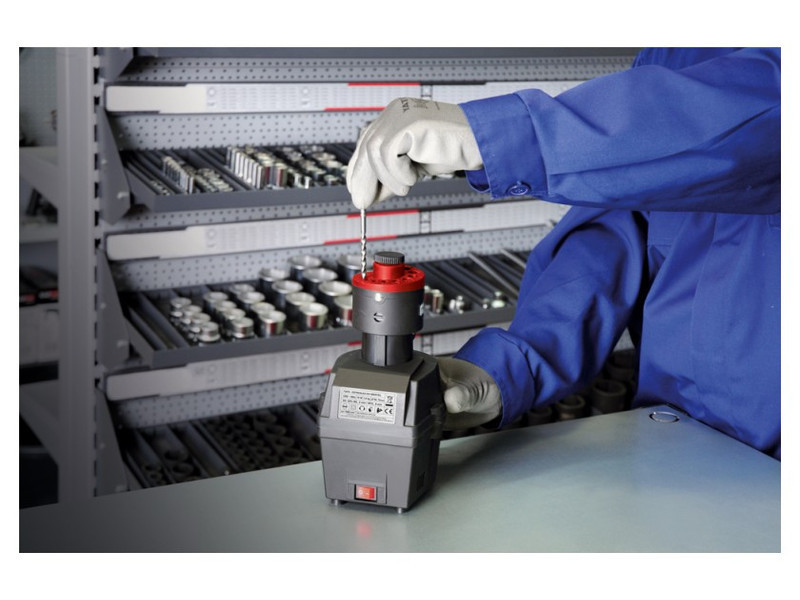

The sharpener is used to sharpen dull drill bits. It is possible to sharpen drill bits designed for drilling in metal or universal drill bits.
The sharpener is not suitable for sharpening drills with a blade made of ceramic materials, wood drills, feather drills, auger drills, crown drills, and drills with a blade shape different from that of steel drills and universal drills.
Package contents:
- sharpener
- 2 attachments

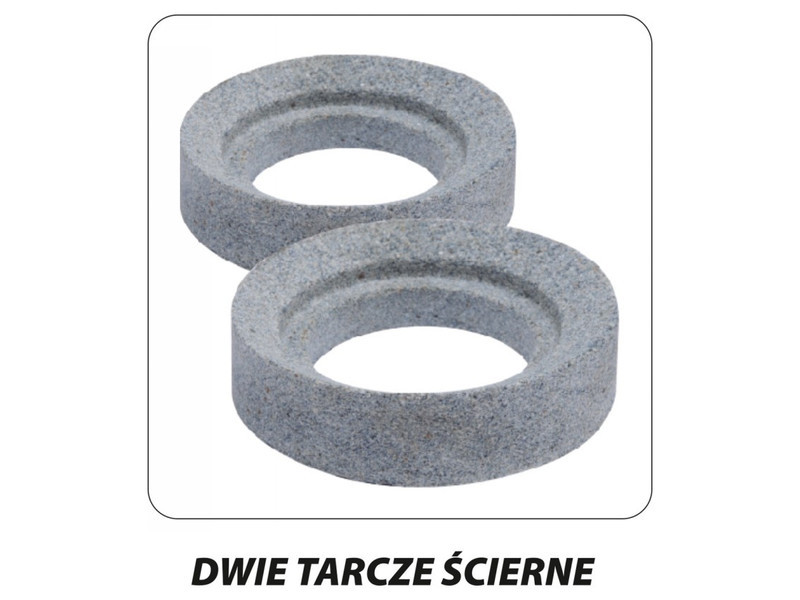

- 2 discs
Technical data
- power [W]: 70
- speed [1/min]: 1600
- diameter [mm]: 3-16
.
