| Brand | Vorel |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRD |
| Max. pressure | 0.4 MPa |
| Power | 4 kW |
| Gas type | butane from an external cylinder, propane-butane from an external cylinder |
| Flame temperature | 800~1200 ˚C |
| Gas usage | 290 g/h |
| Torch length (without hose length) | 360 mm |
| Torch cup quantity | 3 |
| Torch cups size | 17, 22, 40 mm |
| Flame adjustment | yes |
| Hose length | 2 m |
| Set includes | torch, snake, spot flame soldering nozzle, flat flame soldering nozzle, soldering nozzle surrounding flame |
| Application | soldering, heating, drainage, roofing works |
| Symbol | 73325 |

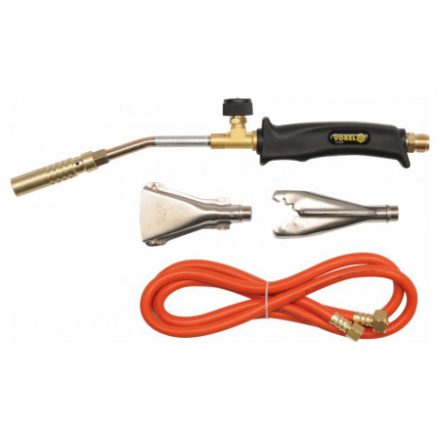

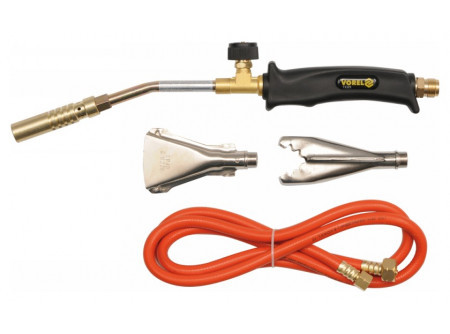

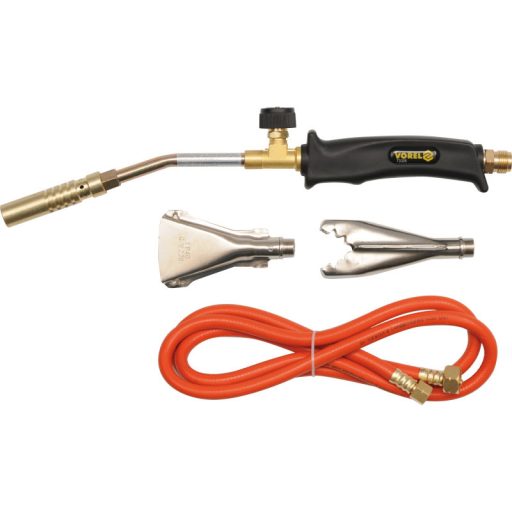

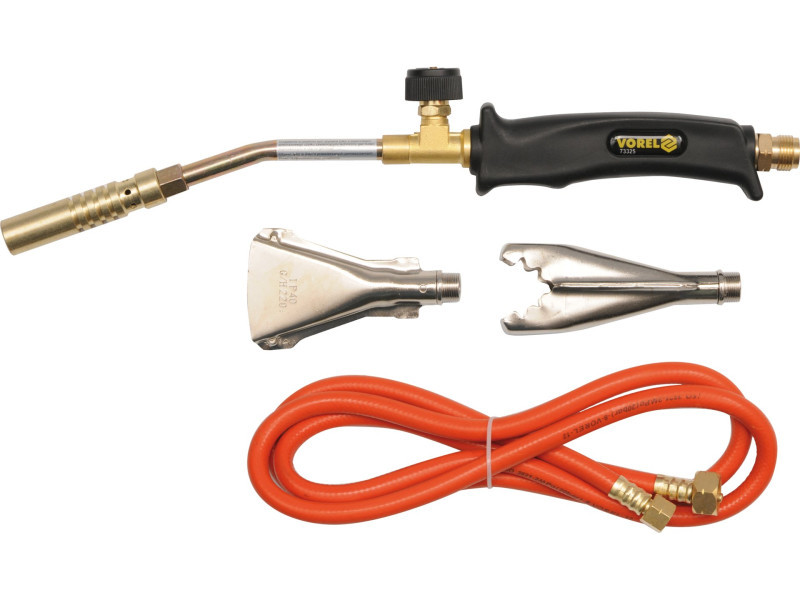

Gas burner set designed for installation work and many applications in other industries. The set includes a universal handle, a special 2m hose with connections to the gas cylinder and handle, and flame shaping nozzles. We can use a 17mm spot nozzle, a 22mm nozzle with a surrounding flame or a 40mm flat nozzle for heating and tanning.
- Pressure rating of supply gas [MPa] - 0.5
- Rating flux [g/h] - 140
- heat load [kW] - 2
Usage warnings:
Direct pressure category - butane.
The device should be used only with reusable containers containing technical butane gas, equipped with a threaded connector.
Use only in well-ventilated areas.
Read the instructions before using this device.
