| Brand | Vorel |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRF |
| Holder size | 1/2" (12.7 mm) |
| Torque | 0-200 Nm |
| Length | 460 mm |
| Symbol | 57450 |

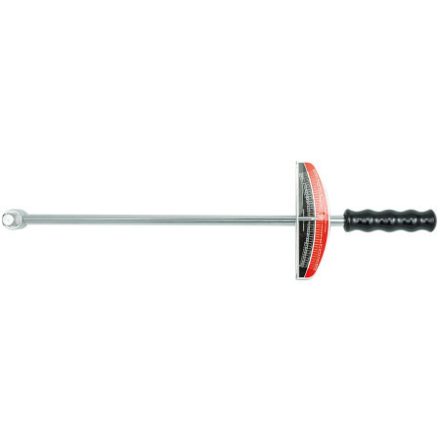

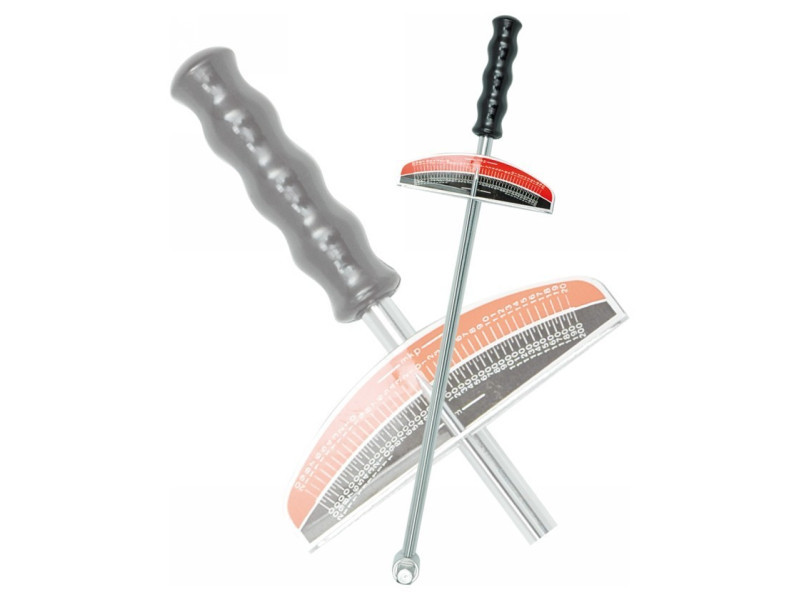

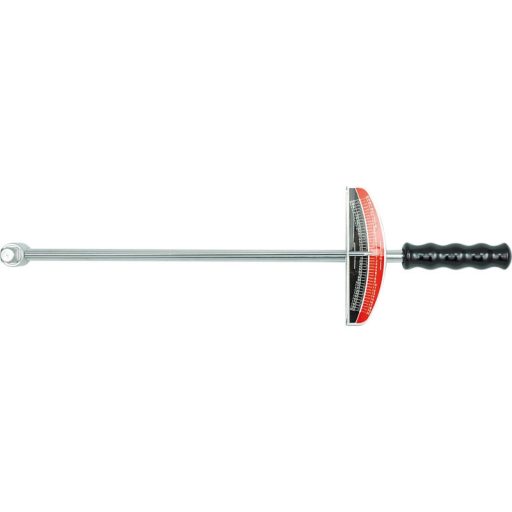

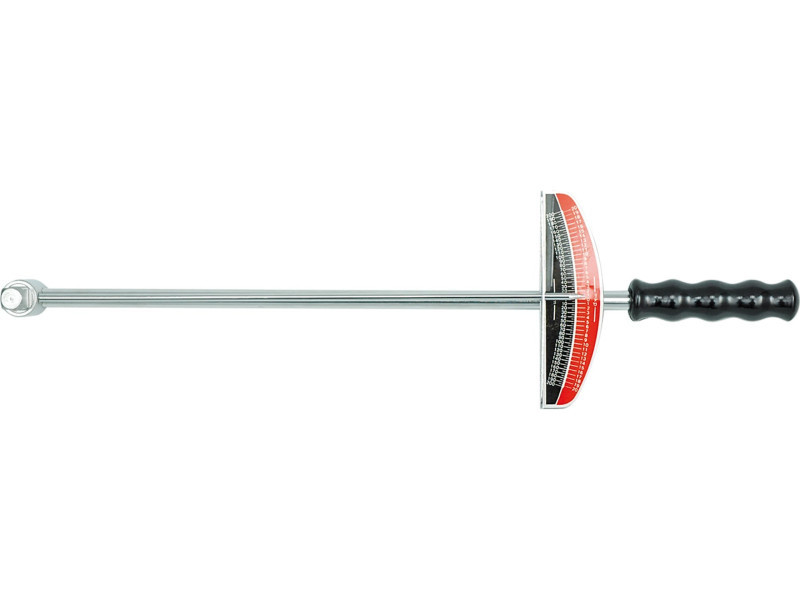

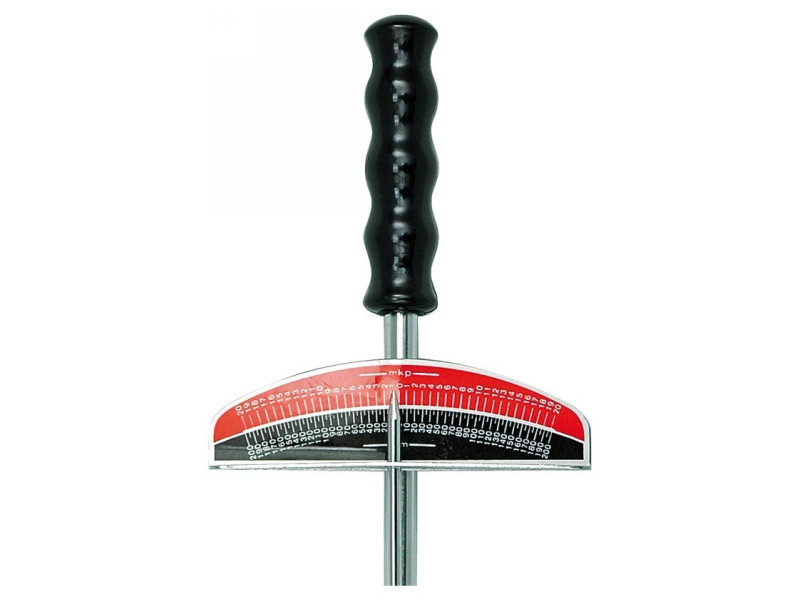

Vorel dynamometric key. It is used to tighten threaded connections with a force with a detailed moment. Made based on the pendulum technology. The scale of this key is scaled in two units (Nm, MKP). Comparative statement of moments in various units of length and force: 1 kg*cm = 13.887 OZ*in (ounce X inch) 1 kg*cm = 0.867 LB*in (Punish X inch) 1 kg*m = 9,80665 n*m ( Niuton x meter) 1 kg*m = 7,233 lb*ft (pound x foot) 1 ft*lb = 12 lb*in (pound x inch) 1 dm*n = 14.16 oz*in (ounce x inch) is used Mainly in automotive technique for precise fastening and wherever the manufacturer determined the required time of tightening the connector. When tightening the screw or nut, when the resistance occurs, the indicator mounted on the key head begins to swing, showing us the strength with which the screw or nut is tightened at the moment.
Usage warnings:
Warning! Always use personal safety equipment at work.
